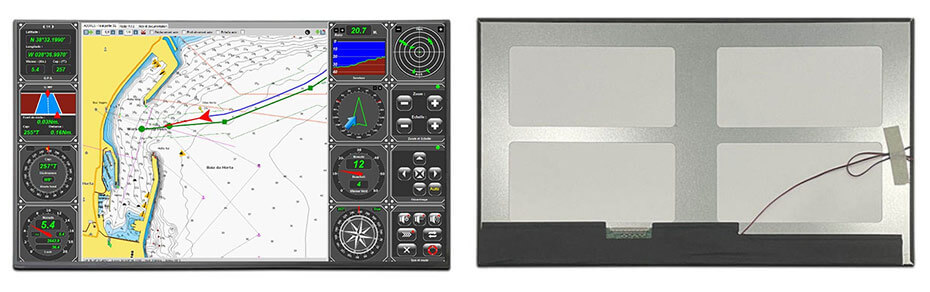

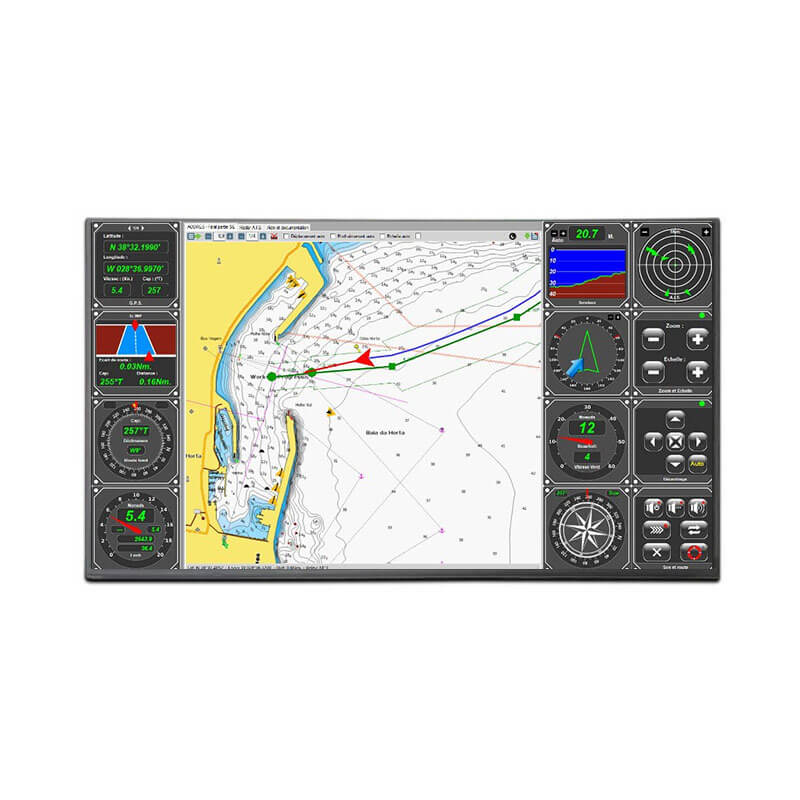

ET185FH01-T is an 18.5-inch diagonal TFT LCD display, transmissive mode, with LVDS interface. ET185FH01-T supports 1920×1080 (FHD) resolution with a 16:9 aspect ratio and wide viewing angles of 80°/80°/80°/80° (L/R/U/D). It features an active area of 408 × 230 mm, outline dimensions of 430 × 254 mm, and provides 2000 cd/m² high-brightness output. The display operates over a wide temperature range of -20~70 °C and can be stored at -30~80 °C. This model does not include touch functionality and is suitable for marine and other high-brightness applications.

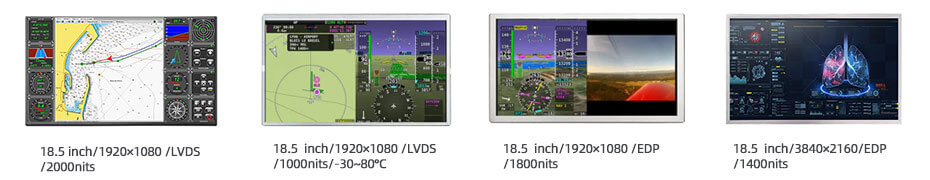

More 18.5 Inch Marine Display For Reference
ET185FH01-T (1920×1080, LVDS, 2000nits, -20~70°C, 430.37×254.6mm)
ET185FH21-K (1920×1080, LVDS, 1000nits, -30~80°C, 430.4×254.6mm)
G185HAN01.4 (1920×1080, eDP, 1800nits, -30~70°C, 429.3×253.06mm)
P1850UHF1MA00 (3840×2160, eDP, 1400nits, -20~70°C, 430.96×252.04mm)
High Visibility & Optical Performance:
-Optical Bonding, reduce reflections and prevent internal fogging
-High Brightness, ranges from 500 to over 3000 cd/m² for direct sunlight readability
-Wide Dimming Range, adjust down to as low as 0.05 cd/m² for safe night operation on the bridge
Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air
Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
Navigation & Chartplotting
-ECDIS (Electronic Chart Display and Information System)
-Radar display
-Chartplotters
-Route monitoring and planning
Integrated Bridge Systems (IBS)
-Centralized multi-function workstations combining radar
-ECDIS
-Conning information
-Alarm management
-Engine monitoring
Fishfinding & Sonar
-Commercial fishing
-Recreational fishfinding
-Underwater structure and bottom mapping
Mission & Combat Systems (Naval)
-Combat Management Systems (CMS)
-Tactical moving maps
-Sensor (radar/EO/IR) integration
-AI-powered target tracking
Performance Monitoring (Racing/High-End)
-True wind speed/direction (Boat speed, heel angle, polar performance, start-line timing)
Entertainment & Lifestyle
-Satellite TV, DVD/multimedia, audio distribution, onboard ambiance control
Security & Surveillance
-CCTV camera monitoring (engine room, deck, dock)
-Man-overboard (MOB) systems
-Remote vessel monitoring via satellite/web
Integrated Vessel Control
-Lighting (CZone), HVAC, tank monitoring, power management, engine diagnostics and control
Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air
Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
