18.5 Inch High Brightness LCD Display Overview

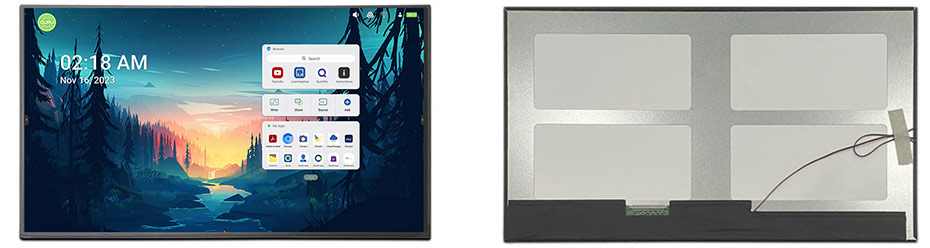

ET185FH02-T is an 18.5-inch high-brightness IPS TFT LCD display featuring a transmissive display mode and LVDS interface. It supports Full HD resolution of 1920 × 1080, provides a typical brightness of 1000 cd/m², and delivers wide viewing angles of 89°/89°/89°/89° (L/R/U/D). The display has an active area of 408.96 × 230.4 mm and an outline dimension of 418.02 × 243.9 mm. It operates within −20 °C to 70 °C and can be stored between −30 °C and 80 °C, without touch functionality.

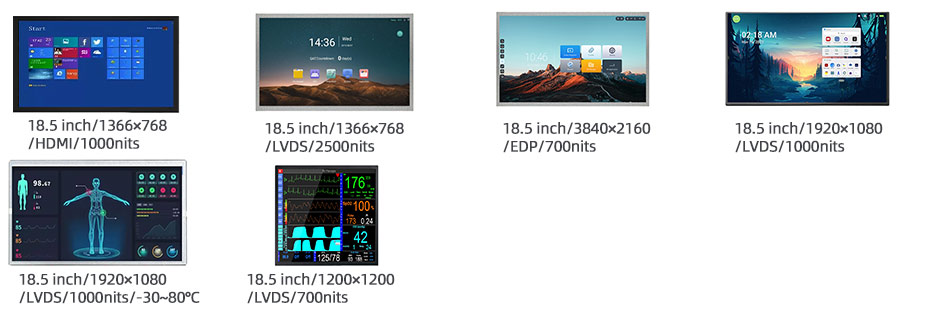

More 18.5 Inch High Brightness Display For Reference
ET185XW01-R-HDMI (1366x768, HDMI, 1000nits, 0~50°C, 430.4x254.6mm)
ET185XW01-H (1366x768, LVDS, 2500nits, -10~60°C, 430x254mm)
ET185UH01-R (3840x2160, eDP, 700nits, 0~50°C, 422.2x244.1mm)
ET185FH02-T (1920x1080, LVDS, 1000nits, -20~70°C, 418.02x243.9mm)
ET185FH21-K (1920x1080, LVDS, 1000nits, -30~80°C, 430.4x254.6mm)
ET185SQ01-V (1200x1200, LVDS, 700nits, 0~50°C, 366x361.5mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
