17"-31.5" Touch Screen (16“)

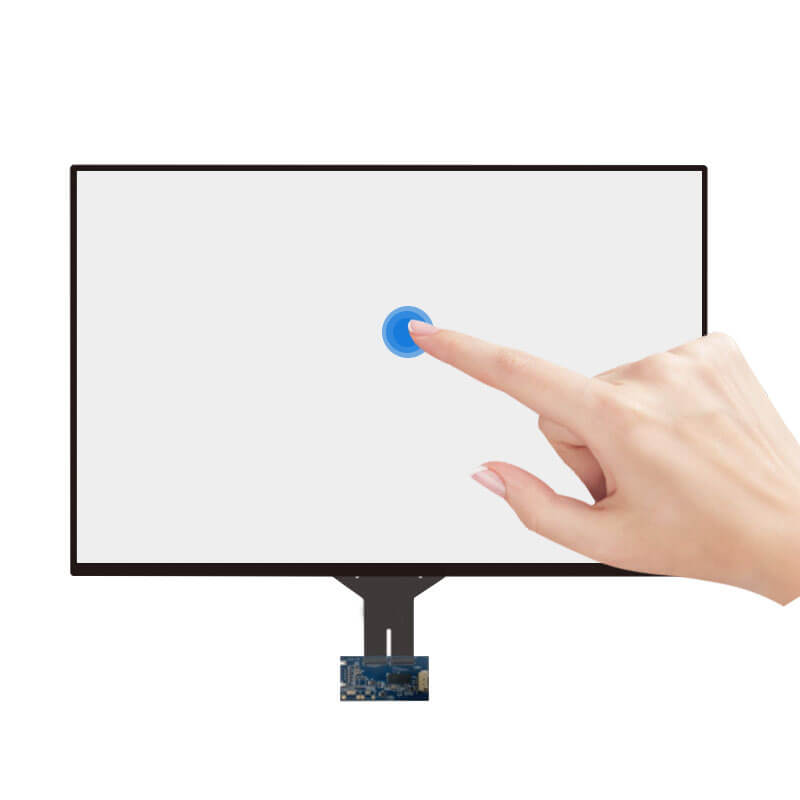

16 Inch Capacitive Touch Screen G+G USB Multi-touch Display

  • Part No.:ET160CTP01
  • Size:16″ inch
  • Resolution:Optional
  • Panel Interface:USB
  • Display mode:PCAP

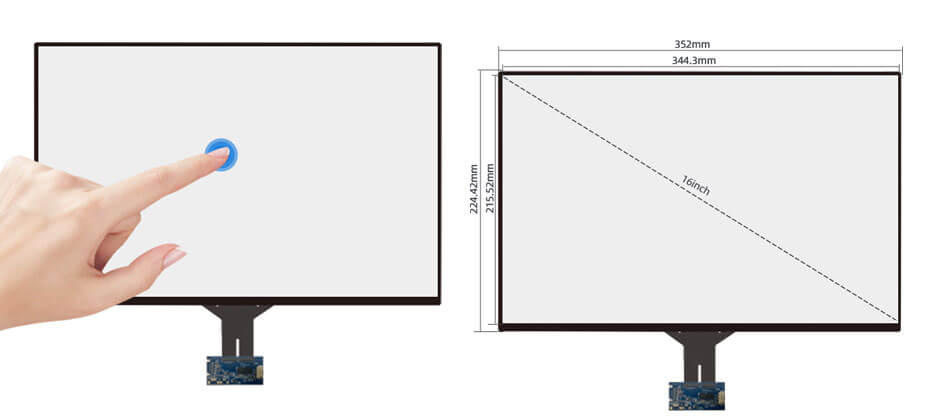

  • Outline Dimension:352x227mm
  • Active Area:344.3x215.52mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness(cd/m2):Optional
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:yes



16 Inch Capacitive Touch Screen
Product structure:Glass/Glass
Surface hardness: Hard coating (7H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 344.3x215.52 mm
Outline Dim.: 352x227 mm
Operation Temperature: -20~70 °C
Storage Temperature: -30~80 °C





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS

No specification brief is filled in!
