16.8 Inch High Brightness Display 800nits IPS 1366x378 LVDS TFT LCD Display

16.8 Inch High Brightness LCD Display Overview

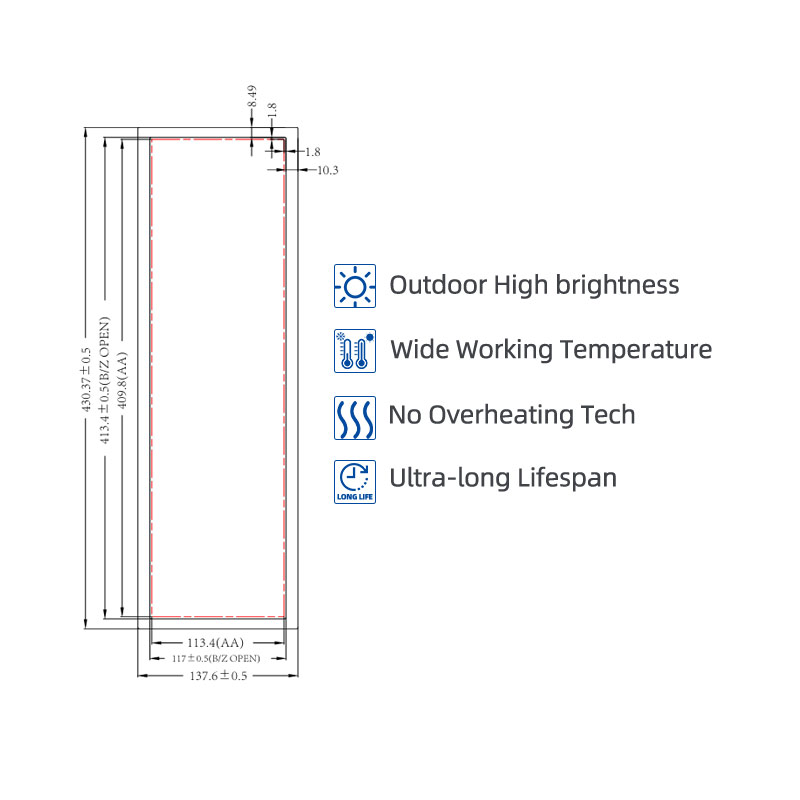

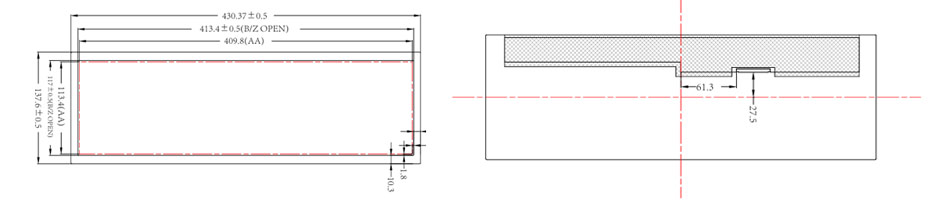

ET168BA01-RX is a 16.8-inch high-brightness IPS TFT LCD display featuring a transmissive display mode and a 1-channel 8-bit LVDS interface. It supports a resolution of 1366 × 378, with a typical brightness of 800 cd/m² and viewing angles of 85°/85°/80°/80° (L/R/U/D). The display has an active area of 409.8 × 113.4 mm and an outline dimension of 430.37 × 137.6 mm. It is designed to operate in temperatures from 0 °C to 50 °C and can be stored between −20 °C and 60 °C. This model includes capacitive touch functionality.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
