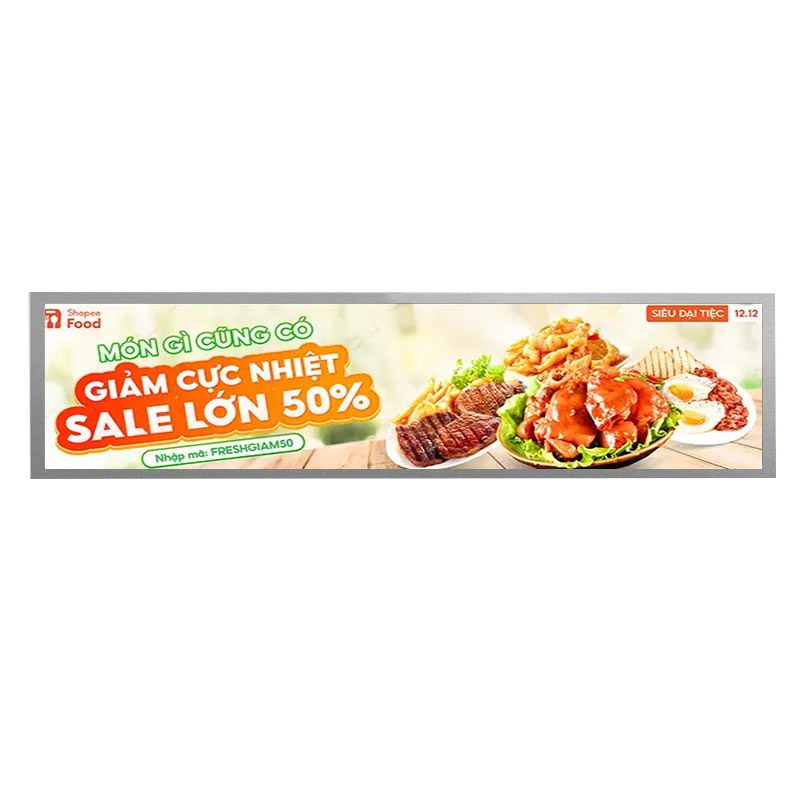

16.4 Inch Stretched Bar Display Overview

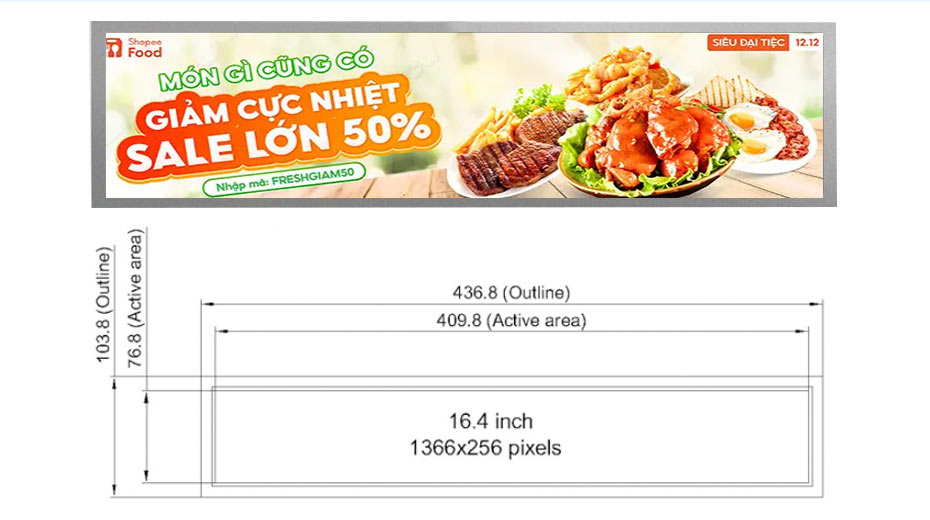

ET164BA02-IL is a 16.4-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1366 × 256 resolution, providing a wide-format display ideal for horizontal information presentation and graphical applications, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 409.8 (W) × 76.8 (H) mm and an outline dimension of 436.8 (W) × 103.8 (H) mm, allowing integration into elongated and space-efficient system designs. ET164BA02-IL adopts an LVDS interface and delivers a typical brightness of 500 cd/m², ensuring clear visibility in well-lit indoor environments. With ultra-wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast from virtually any viewing position. The module is designed for reliable operation within a 0 to 50°C operating temperature range and a –20 to 60°C storage temperature range. This model does not support touch functionality and is suitable for applications such as industrial control panels, transportation displays, digital signage, and other wide-format embedded display solutions.
More 16.4 Inch Bar Displays For Reference
ET164BA01-IL (1366x148, LVDS, IPS, 500nits, 0~50°C, 436.8x70.2mm)
ET164BA02-IL (1366x256, LVDS, IPS, 500nits, 0~50°C, 436.8x103.8mm)
