6"-15.6" Touch Screen (15")

15 Inch Capacitive Touch Screen G+G Structure IIC Touch Display For Linux Android Embedded Touch Screen

Part No.:ET150CTP03
Size:15″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:324.4x247mm
Active Area:306.4x230.2mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

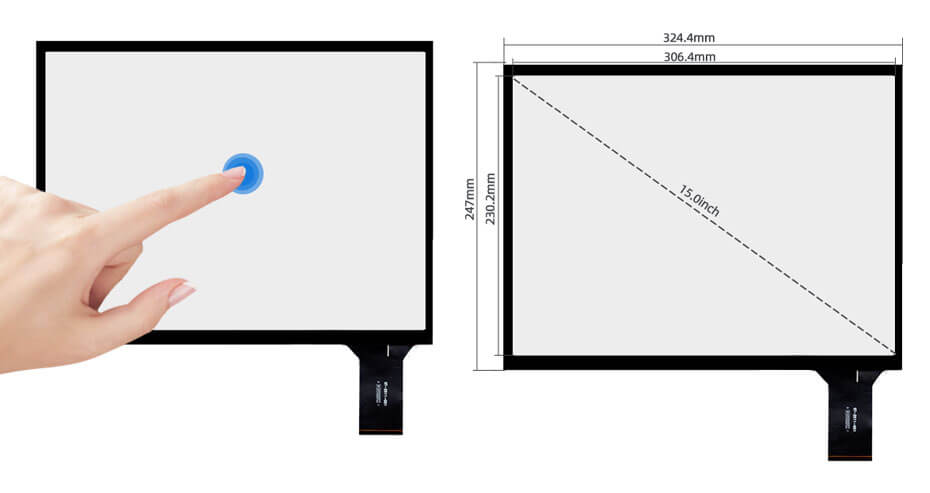

15 Inch Capacitive Touch Screen
Product structure:Glass/Glass
Surface hardness: Hard coating (3H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 306.4x230.2 mm
Outline Dim.: 324.4x247 mm
Operation Temperature: -20~70 °C
Storage Temperature: -30~80 °C

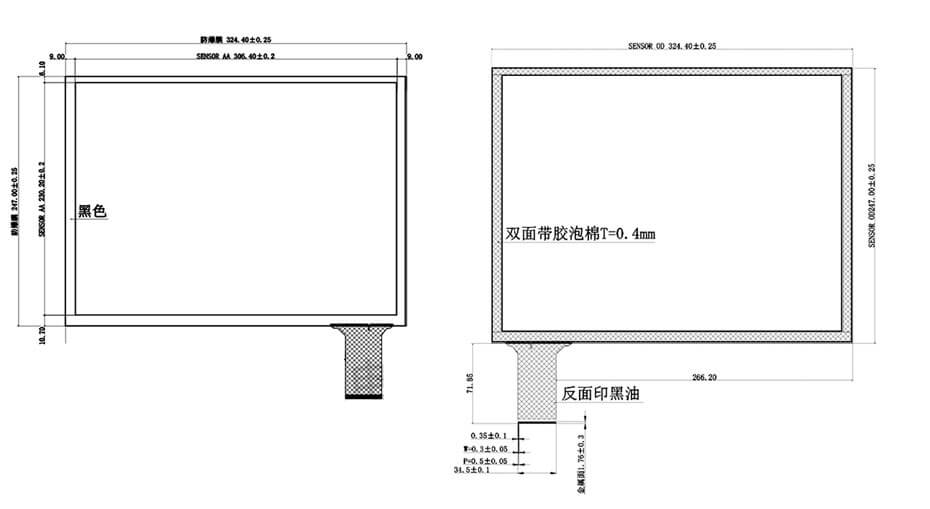

15 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
