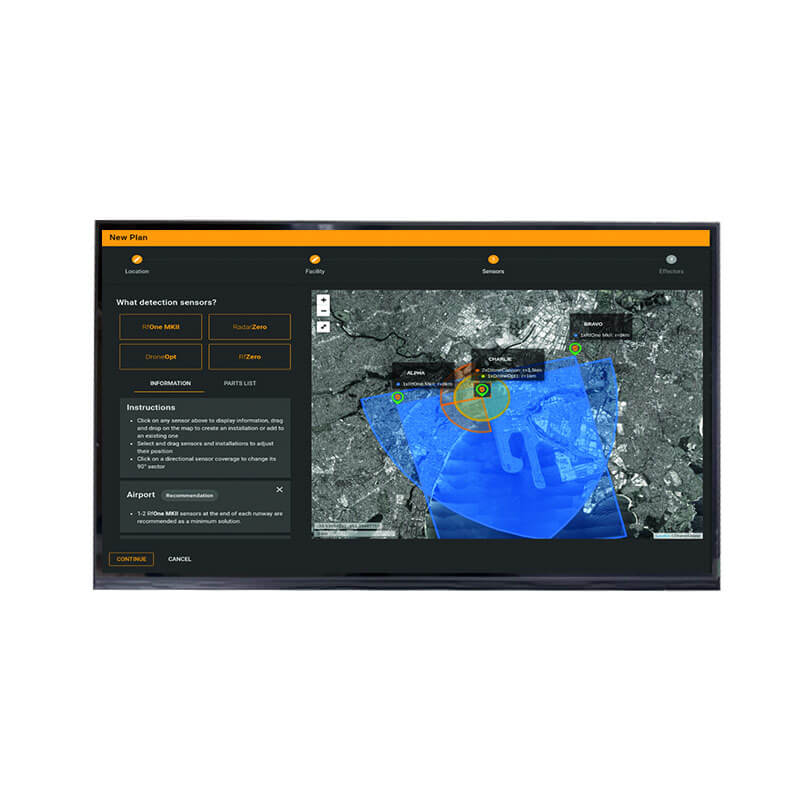

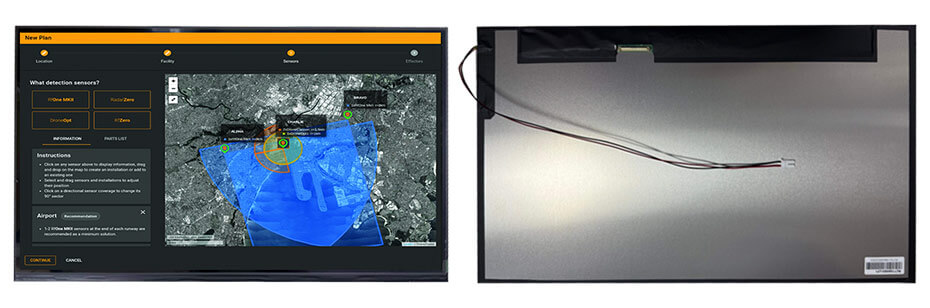

ET156FH05-R is a 15.6-inch diagonal TFT-LCD display module featuring a transmissive display mode. ET156FH05-R supports 1920×1080 (FHD) resolution with an aspect ratio of 16:9 (W), delivering sharp and vivid image quality for drone and outdoor display applications. It features an active area of 344.16(W) × 193.59(H) mm and an outline dimension of 353.36(W) × 208.09(H) mm. ET156FH05-R can provide a high brightness of 1500 cd/m² and an ultra-wide viewing angle of 89/89/89/89 (L/R/U/D), ensuring excellent visibility under bright ambient lighting conditions. Equipped with an LVDS interface and integrated In-Cell touch technology, it supports intuitive touch interaction while maintaining a slim display structure. The module operates within a temperature range of -20°C to 80°C and can be stored from -30°C to 80°C, making it suitable for demanding environments. ET156FH05-R is an ideal display solution for UAV ground control systems, drone monitoring equipment, and other industrial outdoor applications.

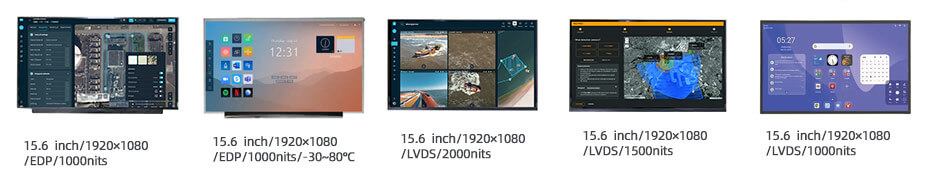

ET156FH03-R (1920×1080, eDP, 1000nits, 0~50°C, 359.5x 206.74x3.0mm)
ET156FH01-ZKT (1920×1080, eDP, 1000nits, -30~80°C, 360×222.45mm, CTP)
ET156FH01-R (1920×1080, LVDS, 2000nits, -20~80°C, 359.5x 206.74x6.6mm)
ET156FH05-R (1920×1080, LVDS, 1500nits, -20~80°C, 359.5x 206.74x6.6mm)
ET156FH06-T (1920×1080, LVDS, 1000nits, -20~70°C, 360×212.3mm)
Sunlight Readability
-High brightness levels (typically 1000+ nits) ensure flight data, maps, and video feeds remain visible under direct sunlight.
Enhanced Contrast Ratio
-Delivers sharp image details and improved readability in varying lighting conditions.
High Resolution
-Sharp and detailed image display.
Wide Temperature Operation
-Stable performance in extreme conditions.
Anti-Glare & Anti-Reflective Technology
-Reduces screen reflections and glare for a clearer viewing experience.
Wide Viewing Angles
-Maintains consistent image quality when viewed from different positions during field operations.
Touchscreen Integration
-Responsive and intuitive user interaction.
Fast Response Time
-Supports real-time video transmission and responsive control interfaces for FPV and UAV monitoring.
Accurate Color Reproduction
-Provides true-to-life images for aerial photography, surveillance, and inspection tasks.
Low Power Consumption
-Optimizes battery life for portable drone controllers and ground control stations.
Rugged Reliability
-Resistant to vibration, shock, and harsh environments.
Reliable Outdoor Performance
-Designed to operate consistently in challenging environments, including bright sunlight, temperature fluctuations, and demanding field conditions.
Agricultural Drones
-Crop monitoring, spraying control, and field mapping.
Inspection Drones
-Power line, pipeline, solar panel, and infrastructure inspections.
Surveying & Mapping UAVs
-Land surveying, GIS mapping, and construction monitoring.
Security & Defense Drones
-Surveillance, reconnaissance, and mission control.
Emergency Response Drones
-Search and rescue, firefighting, and disaster assessment.
Logistics & Delivery Drones
-Route monitoring and fleet management.
Aerial Photography & Broadcasting
-Real-time video monitoring and camera control.
Industrial UAV Operations
-Asset management, environmental monitoring, and smart city applications.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
