6"-15.6" Touch Screen (15.6")

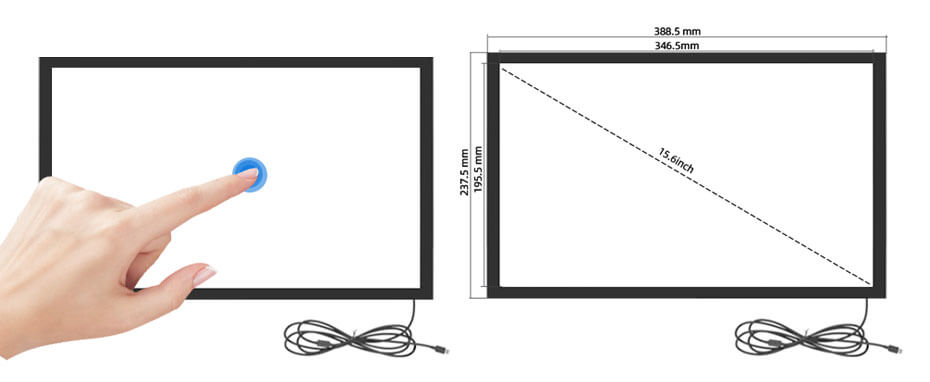

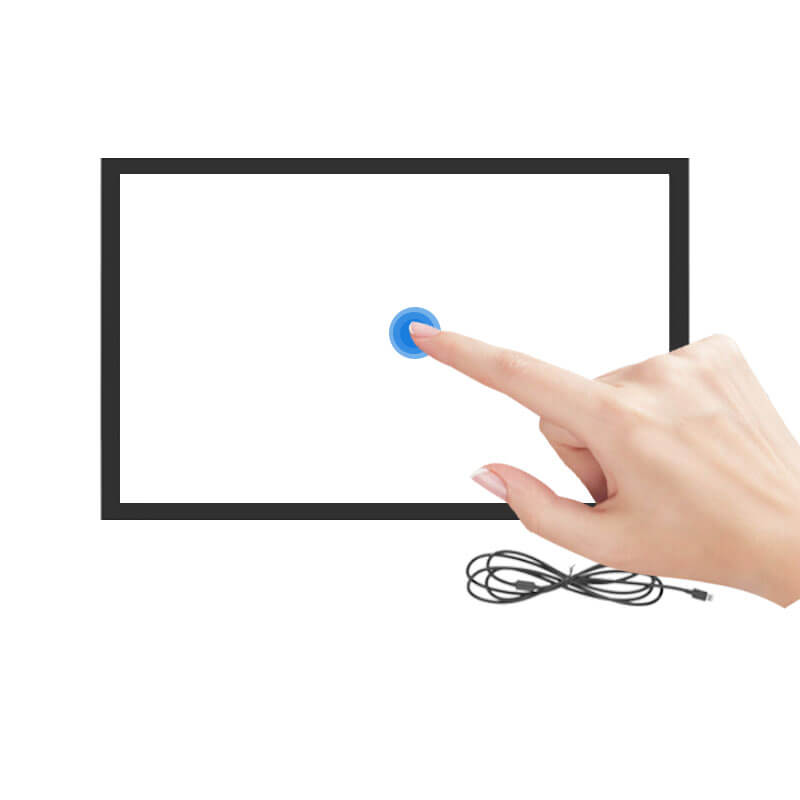

15.6 Inch Infrared Touch Screen 16:9 USB Touch Screen

  • Part No.:ET156ITP01
  • Size:15.6″ inch
  • Resolution:Optional
  • Panel Interface:USB
  • Display mode:Infrared
  • Outline Dimension:388.5x237.5mm
  • Active Area:346.5x195.5mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-15~55°C / -40~75°C
  • Touch:yes
Get a quote

15.6 Inch Capacitive Touch Screen
Aspect Ratio: 16:9
Touch Points: Multi-touch
Interface Type: USB
Display Area: 346.5x195.5 mm
Outline Dim.: 388.5x237.5 mm
Operation Temperature: -15~55 °C
Storage Temperature: -40~75 °C

15.6 Inch Capacitive Touch Screen Drawing





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS

No specification brief is filled in!
