6"-15.6" Touch Screen (15.6")

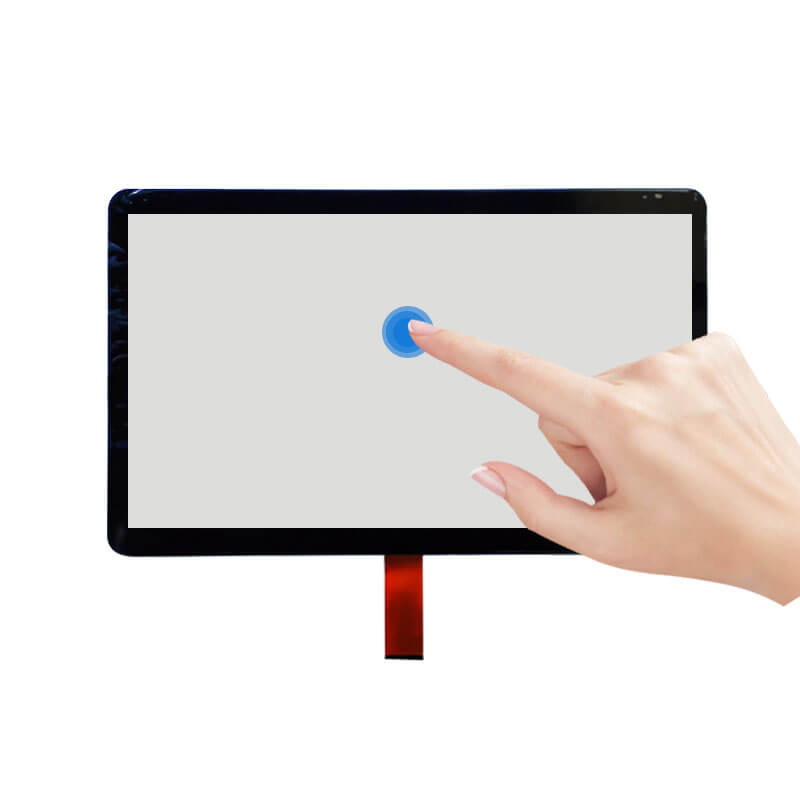

15.6 Inch Capacitive Touch Screen G+G Structure USB ILI2511 Touch Display

Part No.:ET156CTP02
Size:15.6″ inch
Resolution:Optional
Panel Interface:I2C,USB
Display mode:PCAP

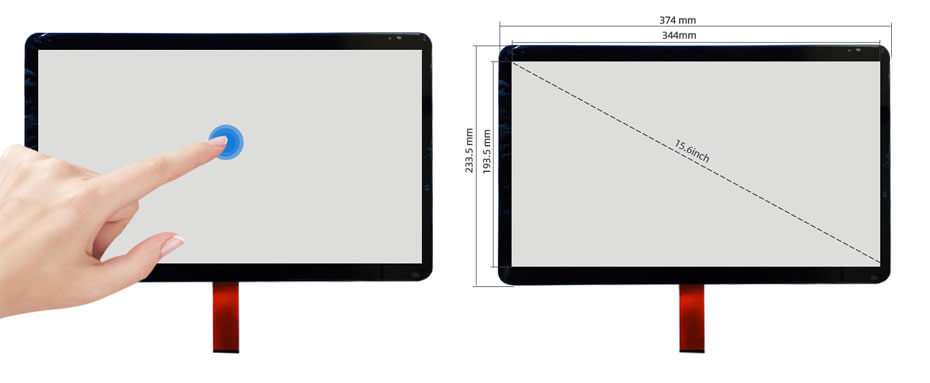

Outline Dimension:374x233.5mm
Active Area:344x193.5mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

15.6 Inch Capacitive Touch Screen
Product structure:Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C,USB
Display Area: 344x193.5 mm
Outline Dim.: 374x233.5 mm
Operation Temperature: -10~60 °C
Storage Temperature: -20~70 °C

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
