15.6 Inch 4K 3840x2160 UHD OLED Display eDP (4 Lanes) IPS AMOLED Display

15.6 Inch 4k Display Overview

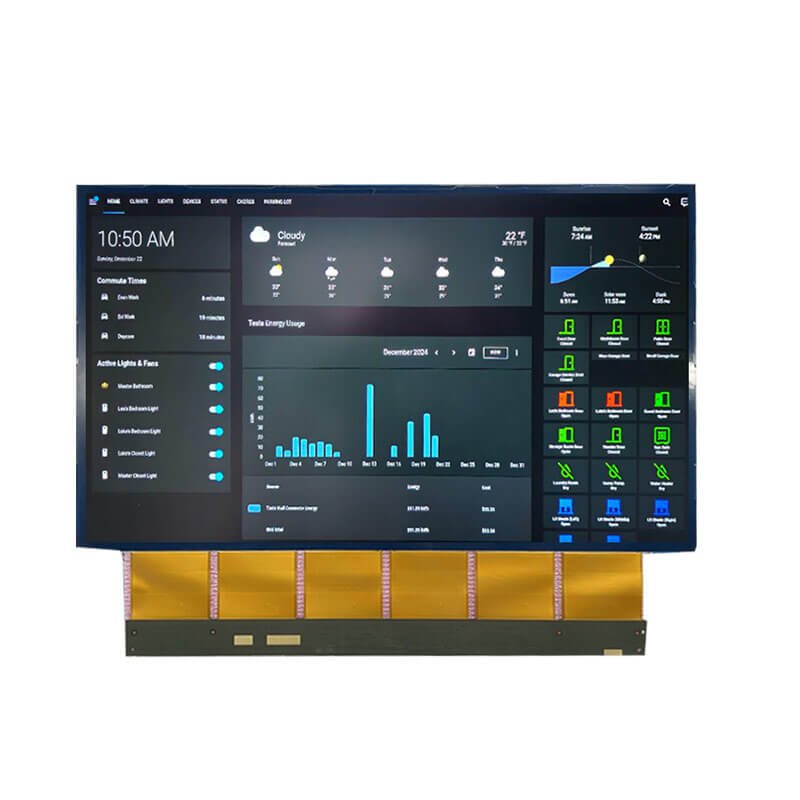

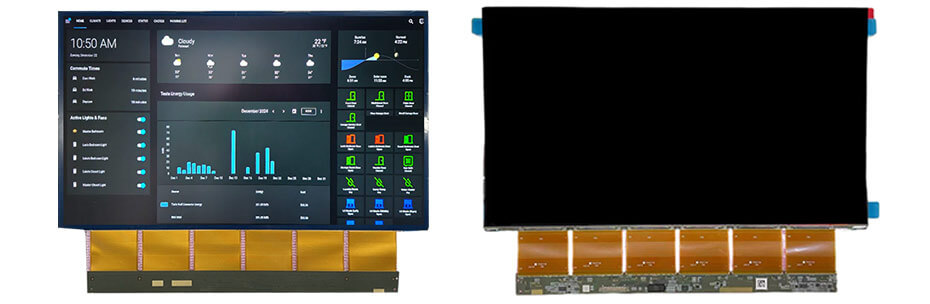

EF60UBA68.A supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Delta, it's pixel density is 283 PPI. It features active area of 344.218(W)×193.622(H) mm, outline size of 348.48(W)×201.62(H) mm, with surface treament of Glare (Haze 0%), net weight of TBD. EF60UBA68.A can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself and have a working life time of 15K hours. EF60UBA68.A utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/12.0V (Typ.)(VDD/VBAT). It's typical vertical frame rate (Fv) is 60Hz.

More 15.6 Inch 4k Display For Reference
NE156QUM-N64 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 350.52x205.92mm)
NE156QUM-N66 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 350.66x216.12mm)
NE156QUM-N6A (LCM, 3840x2160, eDP, 600nits, 0~50°C, 350.66x216.12mm)
NE156QUM-N6C (LCM, 3840x2160, eDP, 600nits, 0~50°C, 350.72x216.14mm)
NE156QUM-NZ4 (LCM, 3840x2160, eDP, 600nits, 0~50°C, 349.92x215.77mm)
NE156QUM-NM1 (LCM, 3840x2160, eDP, 1000nits, 0~50°C, 350.62x223.67mm)
ATNA56WR06-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.572mm)
ATNA56WR14-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.662mm)
ATNA56WR01-002 (OLED, 3840x2160, eDP, 400nits, -20~70°C, 348.218x215.572mm)
ATNA56WR18-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.662mm)
EF60UBA68.A (OLED, 3840x2160, eDP, 400nits, -20~70°C, 348.48x201.62mm)
ATNA56WR04-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.397mm)
