14 Inch High Brightness LCD Display Overview

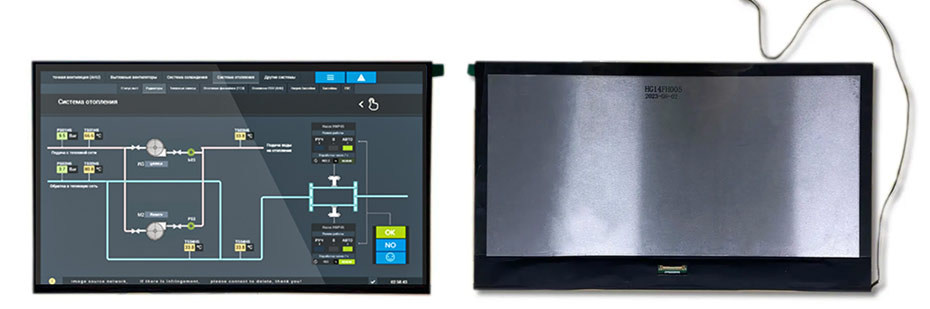

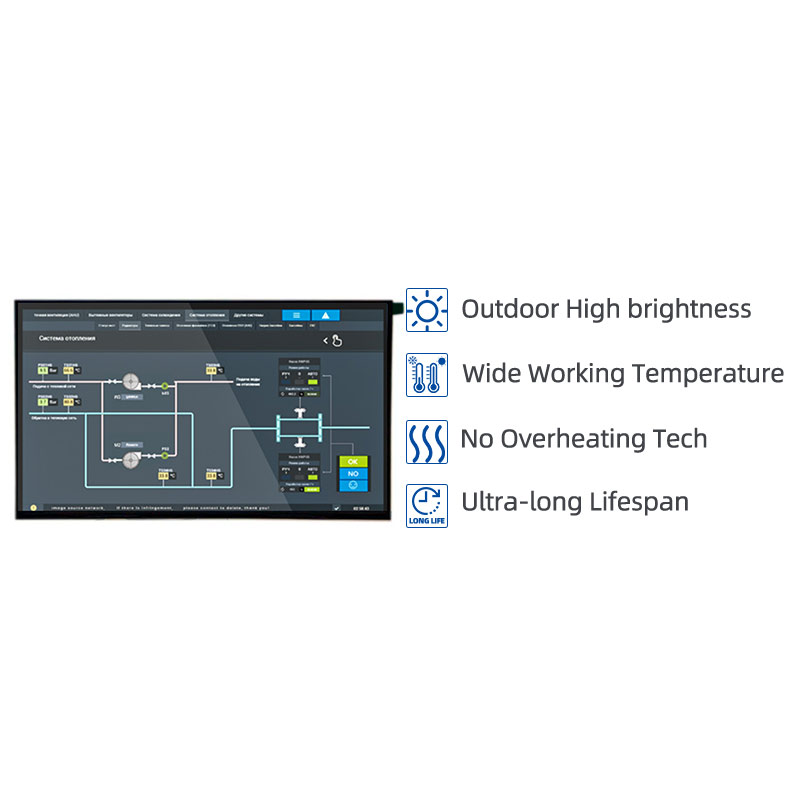

ET140FH01-HG is a 14.0-inch high-brightness TFT LCD display designed with an eDP interface and transmissive display mode. It supports a Full HD resolution of 1920 × 1080 with a wide viewing angle of 80° in all directions. The panel delivers a typical brightness of 1000 cd/m², making it suitable for outdoor or high-ambient-light applications. It features an active area of 308.16 × 173.34 mm and an outline dimension of 317.52 × 186.76 mm. Built for harsh environments, ET140FH01-HG operates reliably over a wide temperature range from −30 °C to 80 °C and supports storage temperatures from −40 °C to 85 °C. Touch functionality is not included.
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
