14.7 Inch Square Display 1080×1080 High Brightness 900nits 30-Pin LVDS Display with HDMI Driver Board

14.7 Inch Square Display Overview

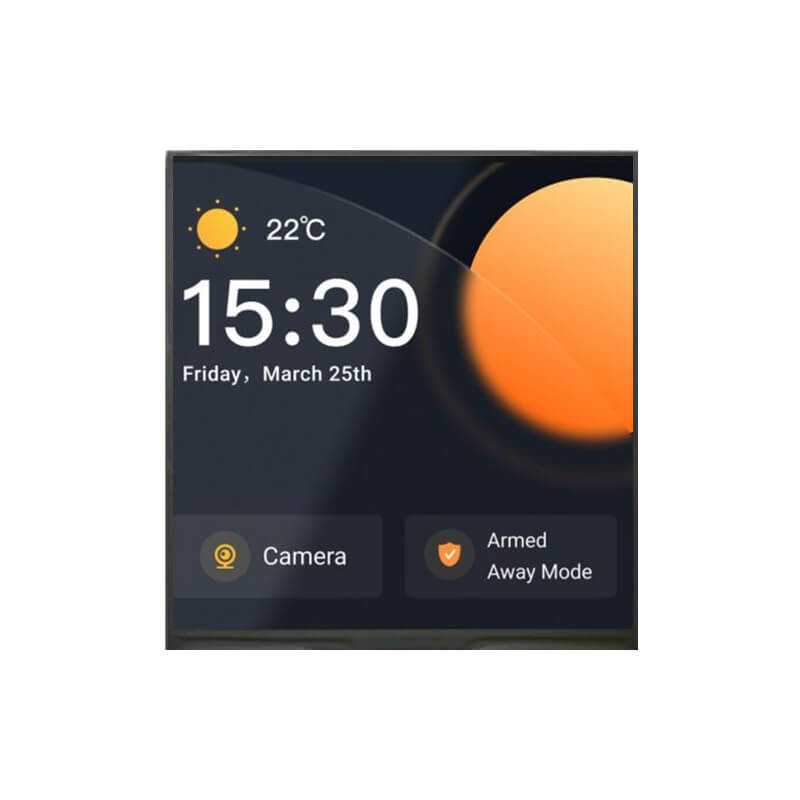

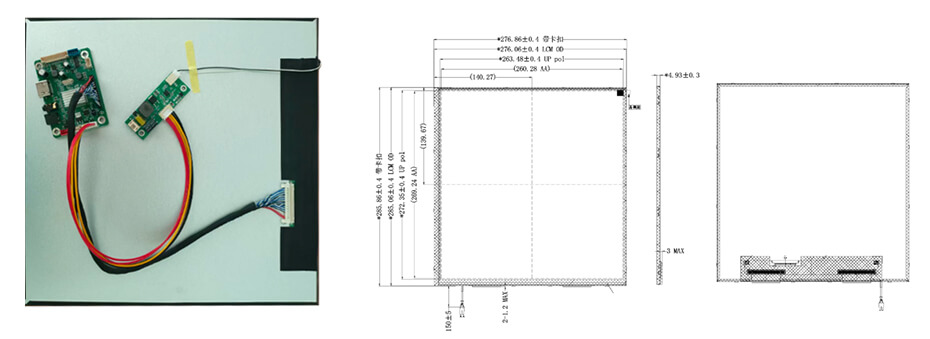

ET147SQ01-GX is a 14.7-inch square IPS LCD display product. ET147SQ01-GX supports a display resolution of 1080×1080 and features a 30-pin LVDS panel interface. It operates in Normally Black display mode and has an outline size of 278(W)×286(H)×5(D) mm. The display provides 900 cd/m² display brightness and features IPS technology with wide viewing angles. ET147SQ01-GX does not include a touch function and supports an operating temperature range of -20°C to 60°C. It can be paired with an HDMI driver board for convenient system integration.
More 14.7 Inch Square Display Soulution For Reference

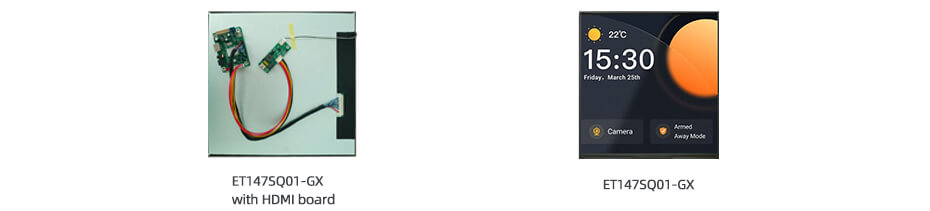

ET147SQ01-GX
ET147SQ01-GX with HDMI board

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
