1.5 Inch Flexible Color OLED Display 120×240 MIPI High Brightness Ultra-Thin Screen for Wearable Devices

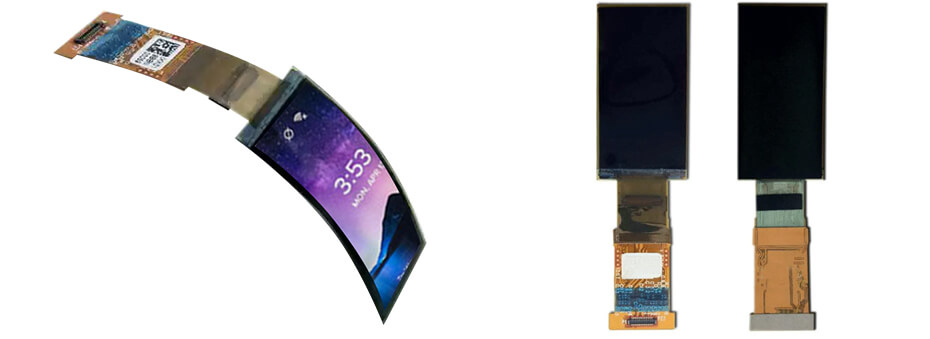

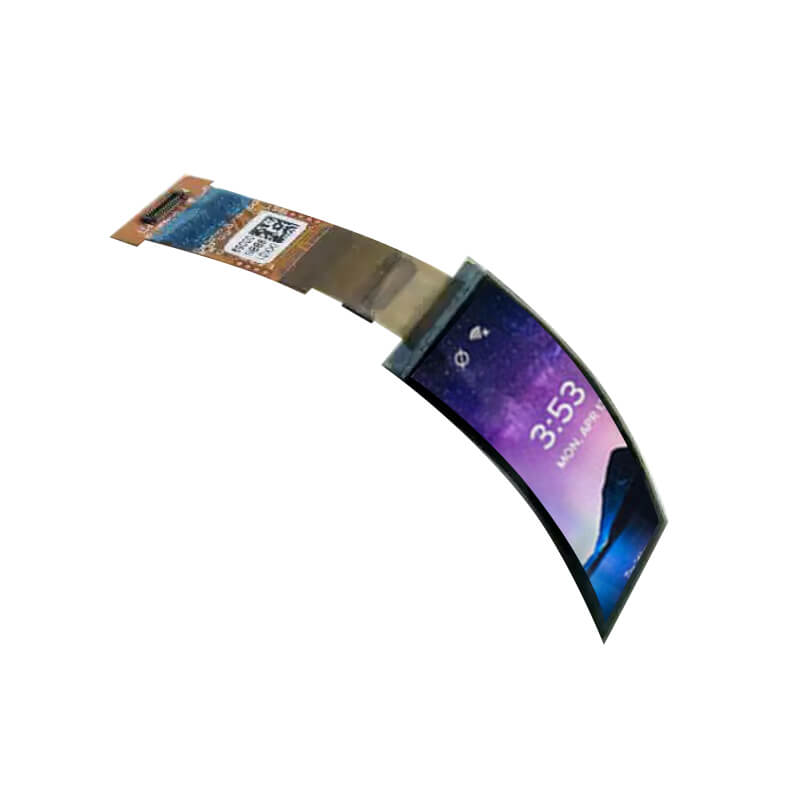

1.5 Inch Flexible OLED Display Overview
WJ015ZE-01A is a 1.5 inch diagonal AM-OLED display screen product featuring a flexible and ultra-thin design. WJ015ZE-01A supports a resolution of 120×240 with a MIPI interface using 1 data lane. It features an active area of 16.92(W)×33.84(H) mm, an outline size of 26.12(W)×39.54(H) mm, and a viewing angle of 80/80/80/80 (L/R/U/D). WJ015ZE-01A provides 350 cd/m² display brightness and supports an operating temperature range of -20~60°C and a storage temperature range of -30~70°C. With its compact, flexible and ultra-thin design, it is suitable for wearable devices and other space-constrained applications.

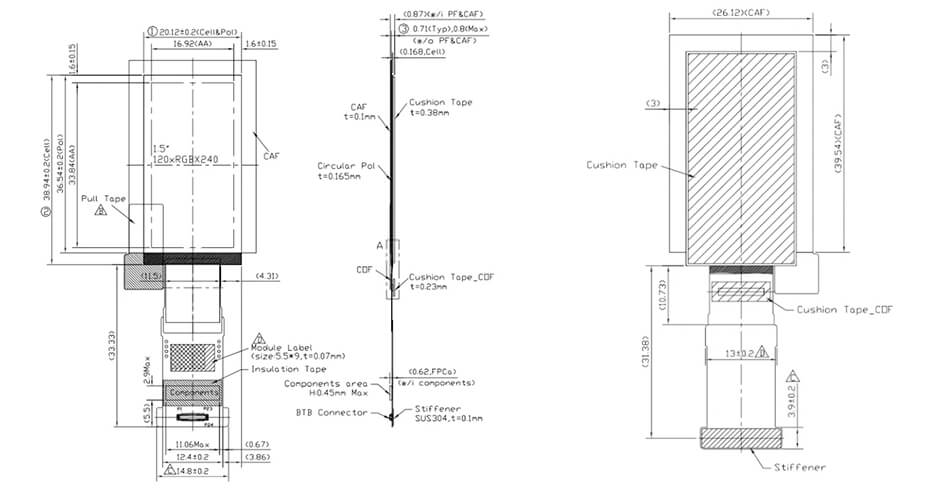

1.5 Inch Flexible OLED Display Drawing
More 1.5 Inch Flexible OLED Display Soulution For Reference

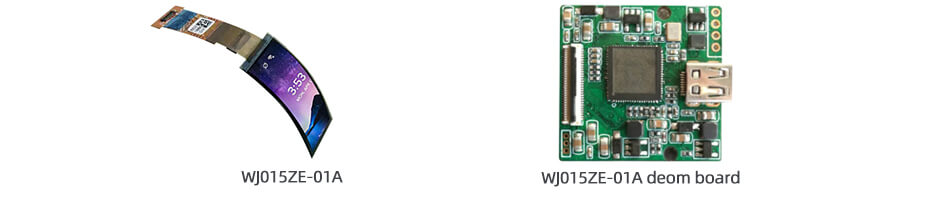

WJ015ZE-01A
WJ015ZE-01A Demo board

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
