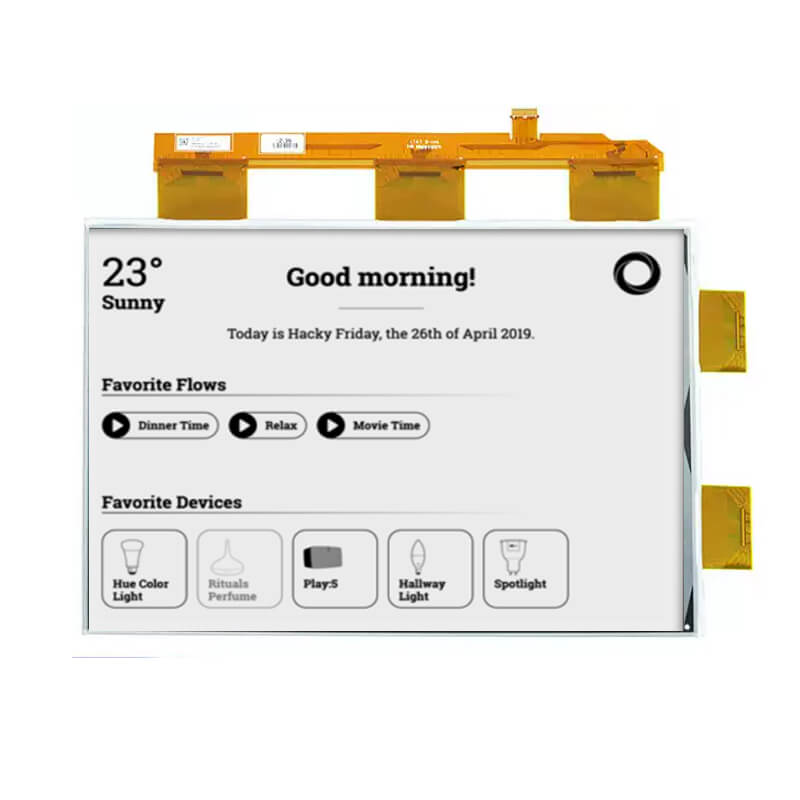

13.3 Inch E-Paper Display Module 1600×1200 SPI Partial Refresh E-Ink Screen

13.3 Inch E-Paper Display Module 1600×1200 SPI Partial Refresh E-Ink Screen Overview

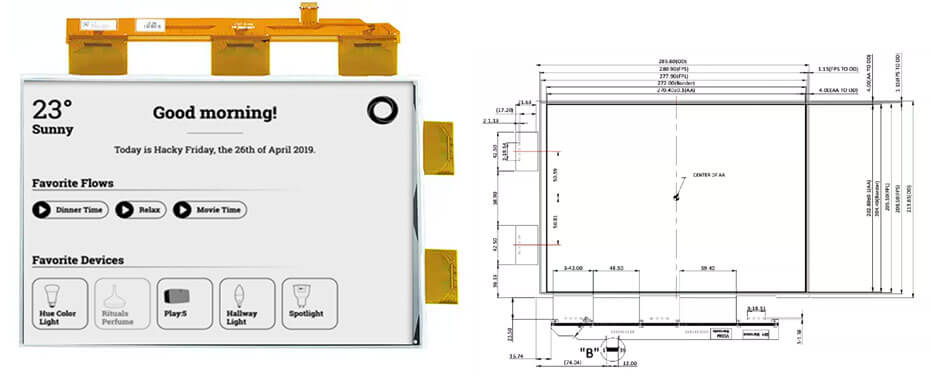

ET133EP02-J is a 13.3-inch diagonal E-Paper Display Module product featuring E-Ink technology. ET133EP02-J supports a resolution of 1600×1200, with pixels arranged for high-resolution image display. It features an active area of 270.4(W)×202.8(H) mm and an outline size of 285.80(W)×213.65(H)×0.78(D) mm. ET133EP02-J adopts an SPI interface and EPD display mode, supports partial refresh, and operates within a temperature range of -15°C to 65°C, with a storage temperature range of -25°C to 70°C. The module does not include a touch panel and is suitable for applications requiring a large-size, low-power E-Paper display.

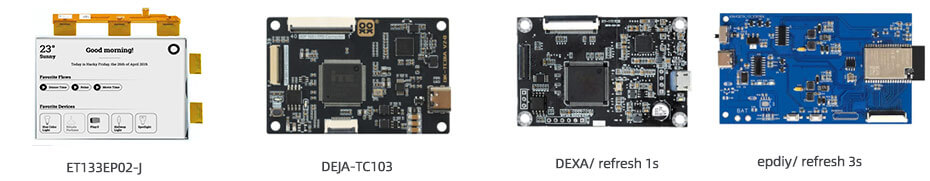

13.3 Inch E Ink Display Solution For Reference
ET133EP02-J
DEJA-TC103
DEXA/ refresh 1s
epdiy/ refresh 3s

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
