10.2"-17.3" LCD Display (12.8)

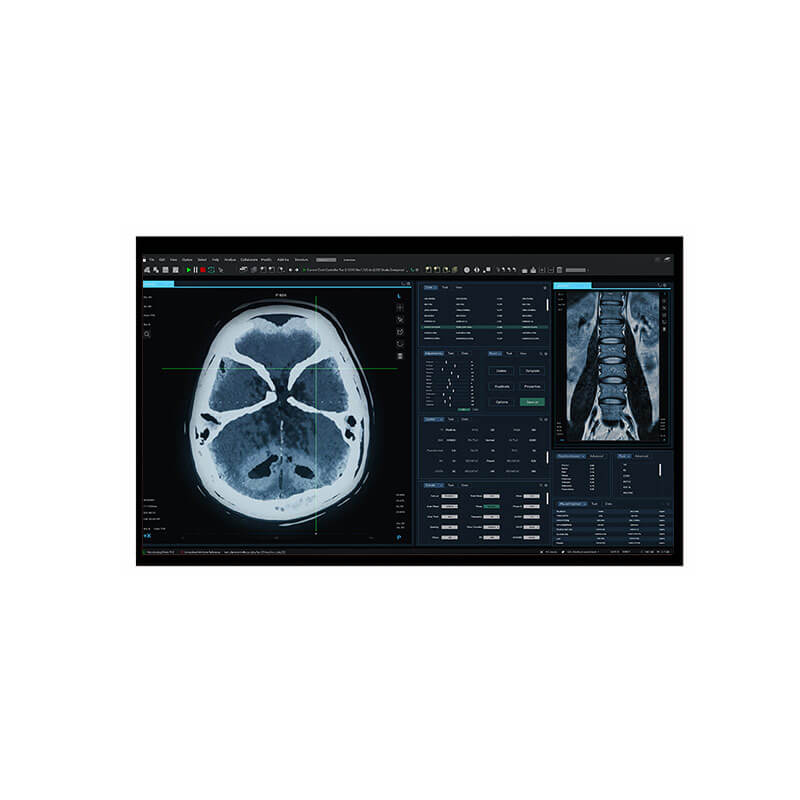

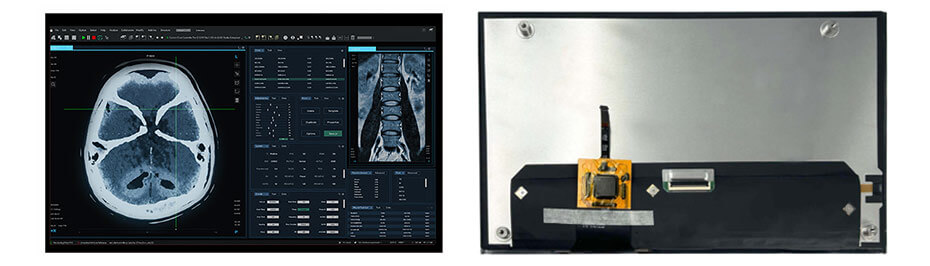

12.8 Inch Wide Temperature LCD Display 1920×1080 LVDS -30°C to 85°C High Brightness 600nits TFT LCD Display With Capacitive Touch

  • Part No.:ET123FH01-KDT
  • Size:12.8″ inch
  • Resolution:1920x1080
  • Panel Interface:LVDS
  • Display mode:Transmissive
  • Outline Dimension:303.2x181.8mm
  • Active Area:283.39x159.41mm
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness(cd/m2):600nits
  • Operation / Storage Temp:-30~85°C / -40~90°C
  • Touch:yes


12.8 Inch Wide Temperature LCD Display Overview
12.8 Inch Wide Temperature LCD Display 1920×1080 LVDS -30°C to 85°C High Brightness 600nits TFT LCD Display With Capacitive Touch.


More 12.8 Inch Wide Temperature Displays For Reference
ET123FH01-KDT (LCD
, 1920×1080, LVDS, IPS, 600nits, -30~85°C, 303.2×181.8mm, CTP)
ET128FH01-TS (LCD, 1920×1080, LVDS, IPS, 700nits, -30~85°C, 294.4×175mm)
ET128FH01-TS (LCD, 1920×1080, LVDS, IPS, 700nits, -40~85°C, 294.4×186.03mm, CTP)


Wide Temperature Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
