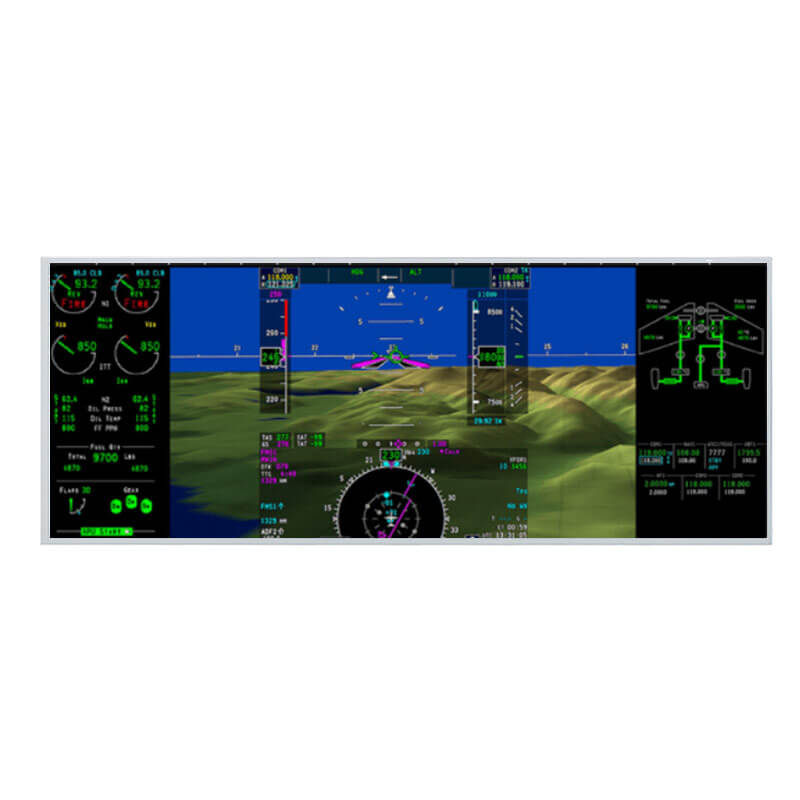

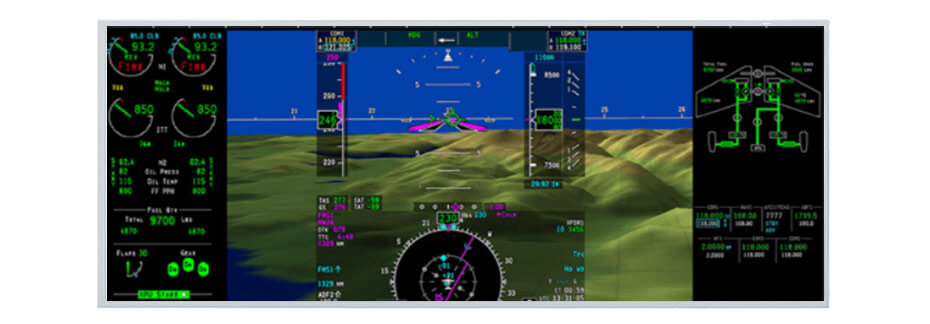

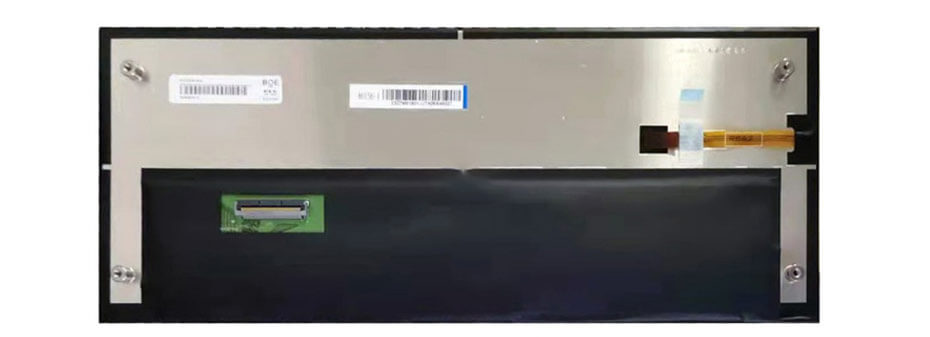

AV123Z7M-N18 is a 12.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.AV123Z7M-N18 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 292.032(W)×109.512(H) mm, outline size of 307(W)×126(H)×10.52(D) mm, with surface treament of Hard coating. As a ADS, Normally Black, Transmissive LCM product, AV123Z7M-N18 can provides 850 cd/m² display brightness 1100:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AV123Z7M-N18 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins Connector. It's typical vertical frame rate (Fv) is 60Hz.

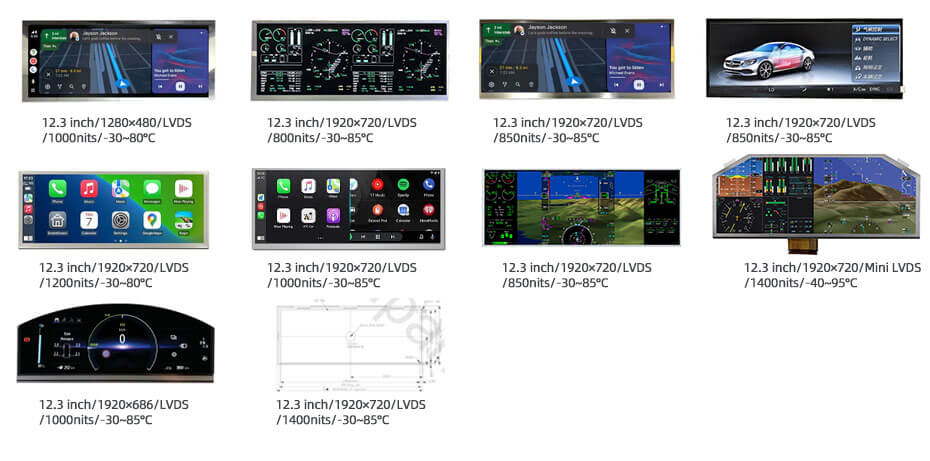

More 12.3 Inch Aerospace Display For Reference
TX31D200VM0BAA (1280×480, LVDS, 1000nits, -30~80°C, 320×130mm)
AV123Z7M-N11 (1920×720, LVDS, 800nits, -30~85°C, 307.9×130.27mm)
HSD123KPW1-A30 (1920×720, LVDS, 850nits, -30~85°C, 308.1×130mm)
HSD123JPW3-A10 (1920×720, LVDS, 850nits, -30~85°C, 302×125.4mm)
ET123BA10-T (1920×720, LVDS, 1200nits, -30~80°C, 310×128mm)
AV123Z7M-N12-58P2 (1920×720, LVDS, 1000nits, -30~85°C, 307×126mm)
AV123Z7M-N18 (1920×720, LVDS, 850nits, -30~85°C, 307×126mm)
LQ123M5NZ01 (1920×720, Mini LVDS, 1400nits, -40~95°C, 309.7×126mm)
LS123M5LZ01 (1920×686, LVDS, 1000nits, -30~85°C, 301.3×120.5mm)
P1230FHF1MA00 (1920×720, LVDS, 1400nits, -30~85°C, 305.92×123.62mm)
Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions
Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)
Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability
High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands
Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions
Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft
Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
