10.2"-17.3" LCD Display (11.6")

11.8 Inch High Brightness Display 750nits 1200x1600 LVDS Wide Temperature TFT LCD Display

Part No.:ET118WU01-F
Size:11.8″ inch
Resolution:1200x1600
Panel Interface:LVDS
Display mode:Transmissive

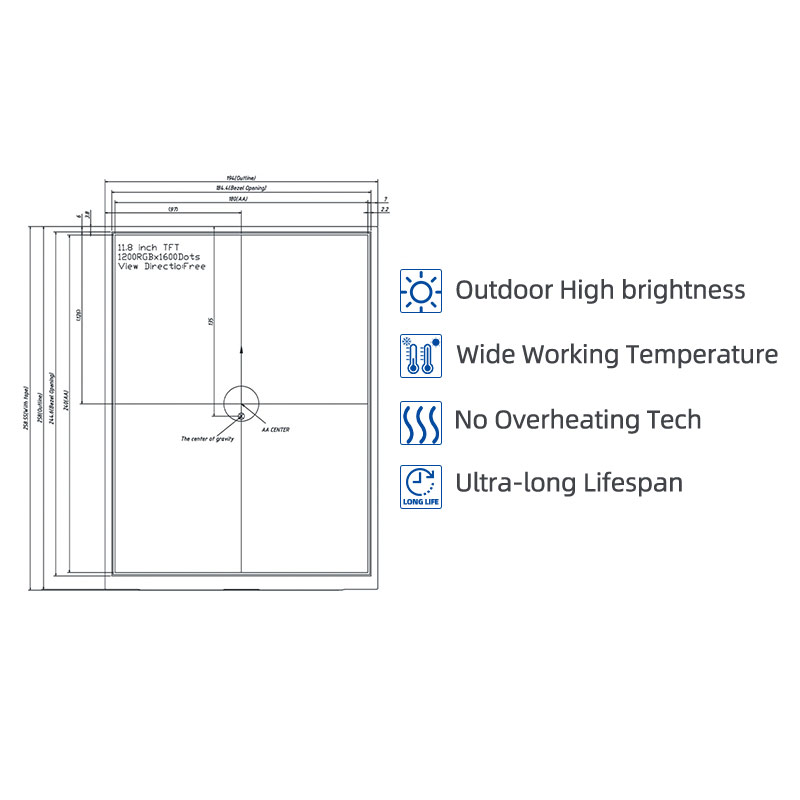

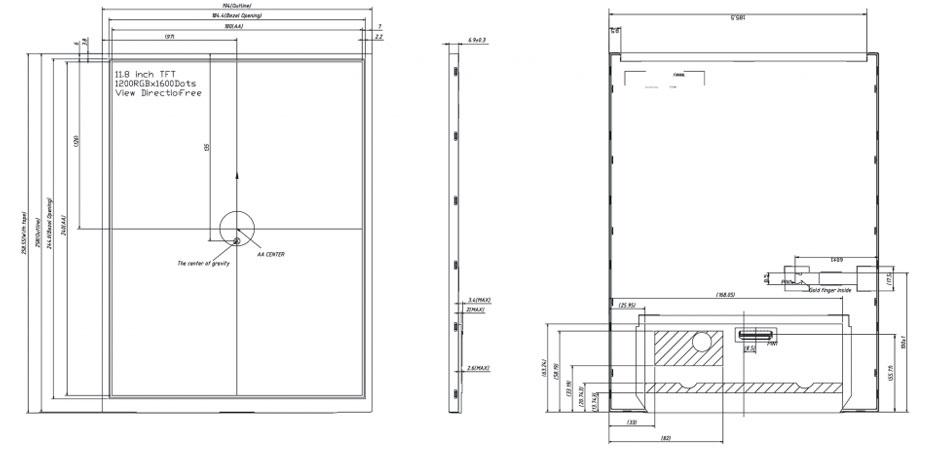

Outline Dimension:194x258.55mm
Active Area:180x240mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:750(Typ.)
Operation / Storage Temp:-30~85°C / -40~95°C
Touch:no

11.8 Inch High Brightness LCD Display Overview
ET118WU01-F is an 11.8-inch high-brightness TFT LCD display with a 1200 × 1600 resolution in transmissive mode. It supports an LVDS interface and delivers a typical brightness of 750 cd/m² with wide 85° viewing angles in all directions. The display features an active area of 180 × 240 mm and an outline dimension of 194 × 258.55 mm, designed for wide-temperature operation from −30 to 85 °C (storage −40 to 95 °C) and does not include touch functionality.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
