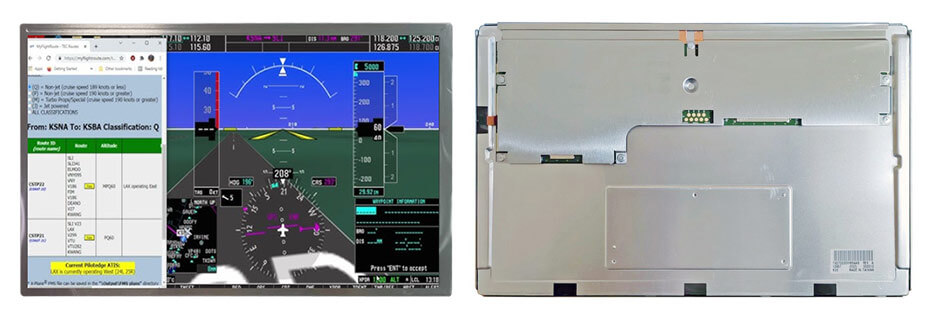

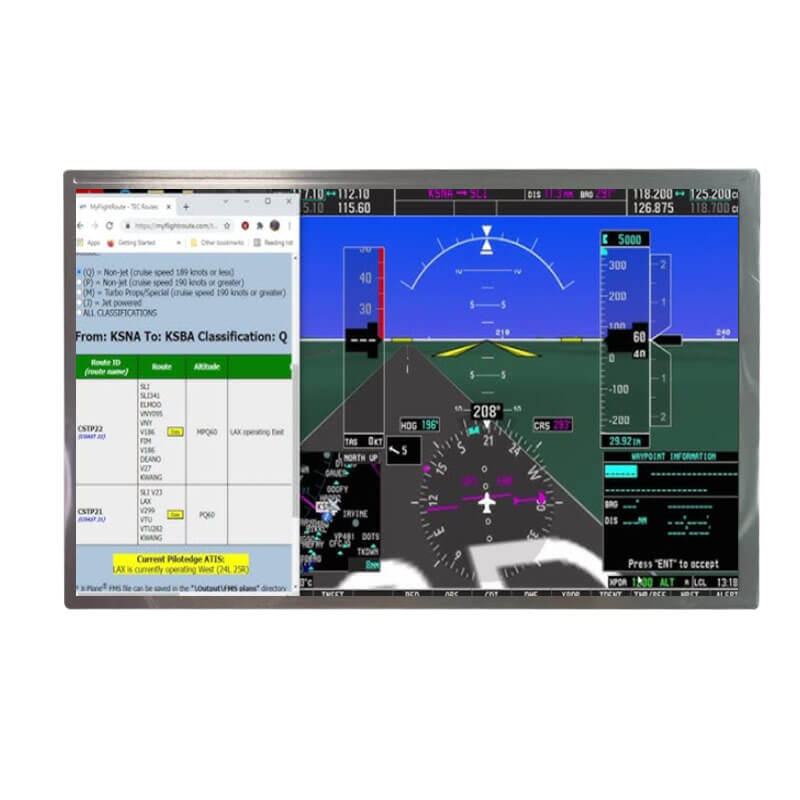

11.6 Inch TFT LCD Display 1920×1080 LVDS High Brightness Wide Temperature Display TX29D200VM0AAA For Aerospace Display

11.6 Inch TFT LCD Display 1920×1080 LVDS High Brightness Wide Temperature Display TX29D200VM0AAA For Aerospace Display Video

11.6 Inch TFT LCD Display 1920×1080 LVDS High Brightness Wide Temperature Display TX29D200VM0AAA For Aerospace Display Overview

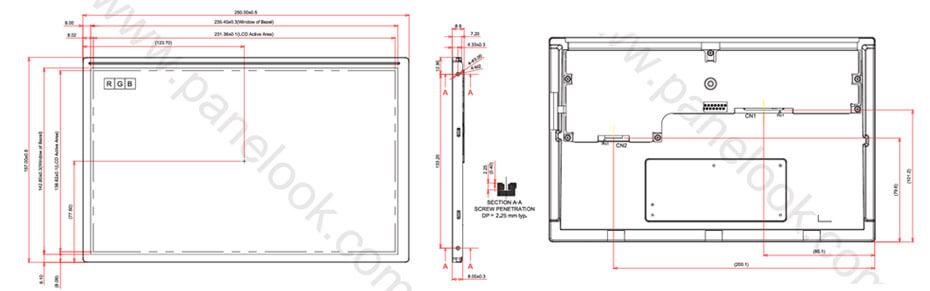

TX29D200VM0AAA is a 11.6 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. TX29D200VM0AAA supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.32(W)×144.18(H) mm, outline size of 275(W)×163.8(H)×12.6(D) mm, viewing area size of 259.3(W)×147.18(H) mm, net weight of 554g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX29D200VM0AAA can provides 1200 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX29D200VM0AAA utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems

Youritech Aerospace Display Production and Manufacturing
