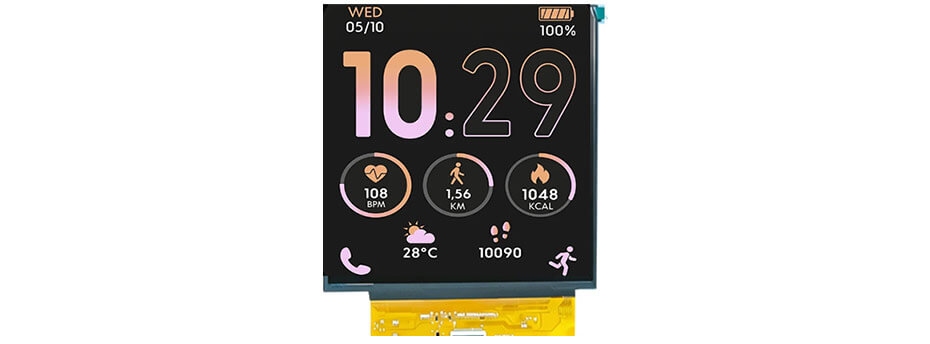

10 Inch Square Display 1200×1200 IPS High Brightness 1200nits MIPI TFT LCD Display

10 Inch Square Display Overview
ET100SQ01-GX is a 10-inch diagonal square TFT LCD display featuring a 1200×1200 resolution and a MIPI interface. ET100SQ01-GX adopts a transmissive display mode with an active area of 179.82(W)×179.82(H) mm and an outline dimension of 185.82(W)×192.32(H) mm. It provides 1000 cd/m² typical display brightness and a wide viewing angle of 85°/85°/85°/85° (L/R/U/D). The display operates reliably across a temperature range of -20°C to 70°C and supports a storage temperature range of -30°C to 80°C. The module does not include a touch panel.

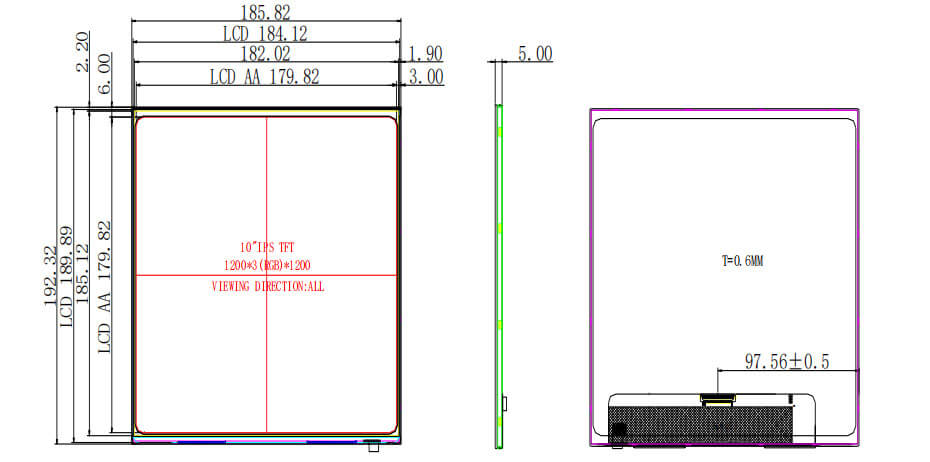

10 Inch Square Display Drawing

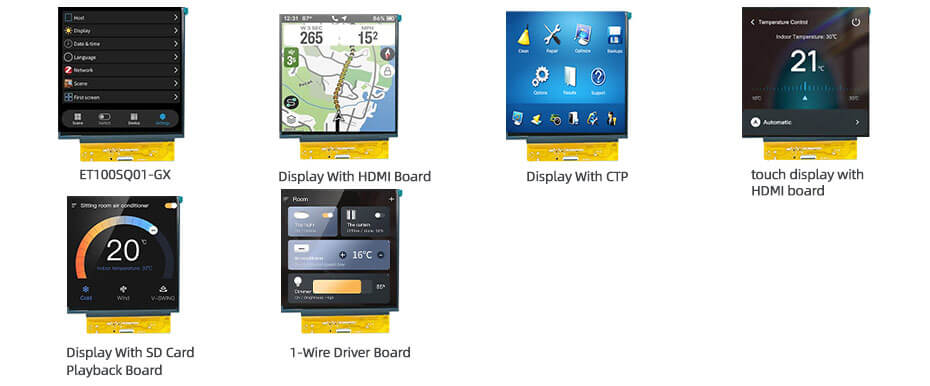

More 10 Inch Square Display Soulution For Reference

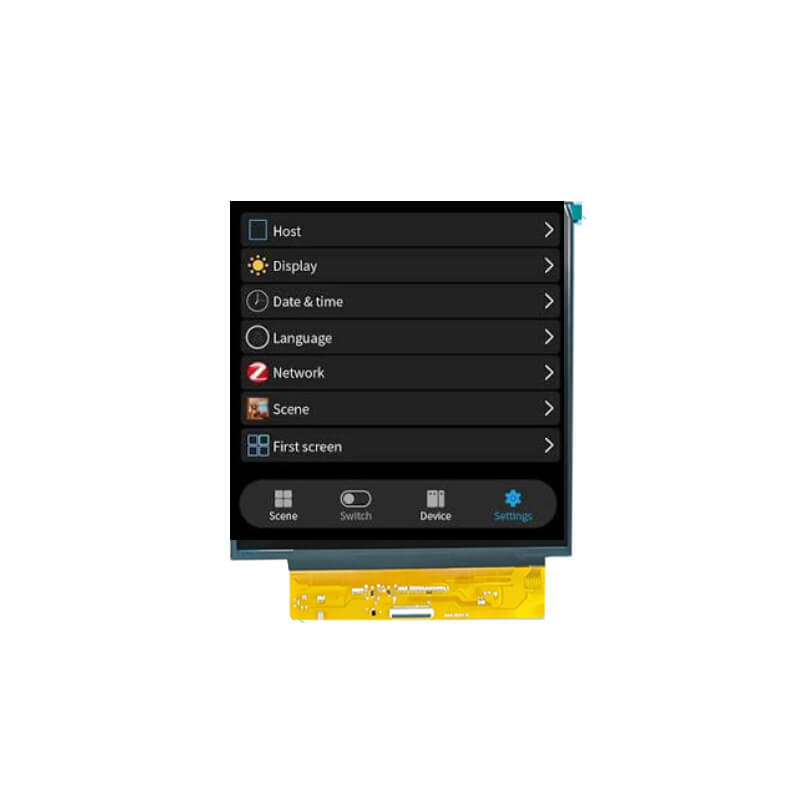

ET100SQ01-GX
ET100SQ01-GX display with HDMI board
ET100SQ01-GX display with CTP
ET100SQ01-GX touch display with HDMI board
ET100SQ01-GX display with SD card playback board
1-Wire driver board

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
