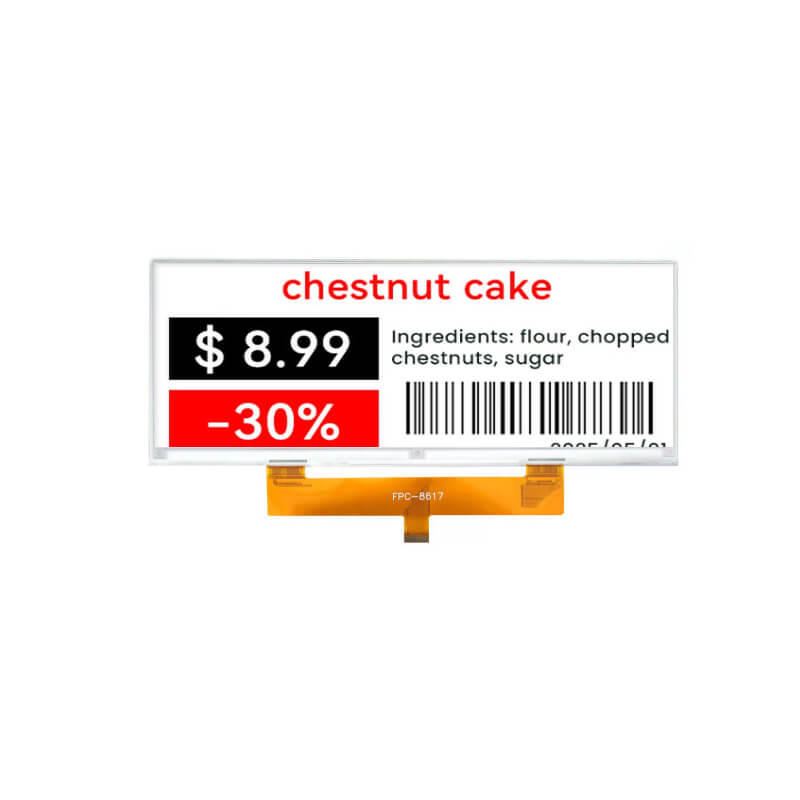

10.85 Inch Three-Color E-Paper Display 1360×480 SPI E-Ink Screen

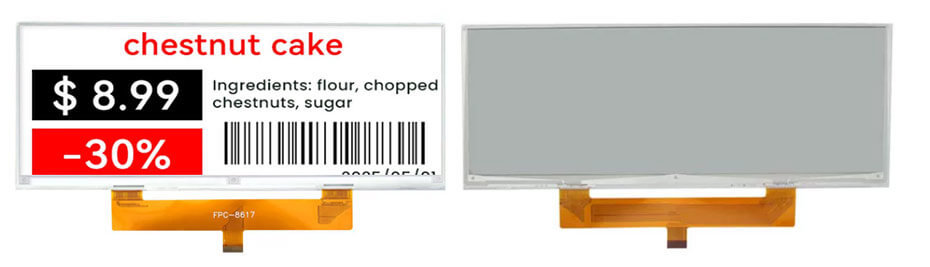

10.85 Inch Three-Color E-Paper Display 1360×480 SPI E-Ink Screen Overview

ET108EP01 is a 10.85-inch diagonal E-Paper display module featuring three-color E-Ink technology. ET108EP01 supports a resolution of 1360×480 and adopts an SPI interface with EPD display mode. It features an active area of 259.76(W)×91.68(H) mm and an outline size of 270.56(W)×105.92(H)×1.20(D) mm. The module operates within a temperature range of 0°C to 40°C and supports a storage temperature range of -25°C to 40°C. ET108EP01 does not include a touch panel and is designed for wide-format, low-power E-Paper applications requiring clear three-color content display.

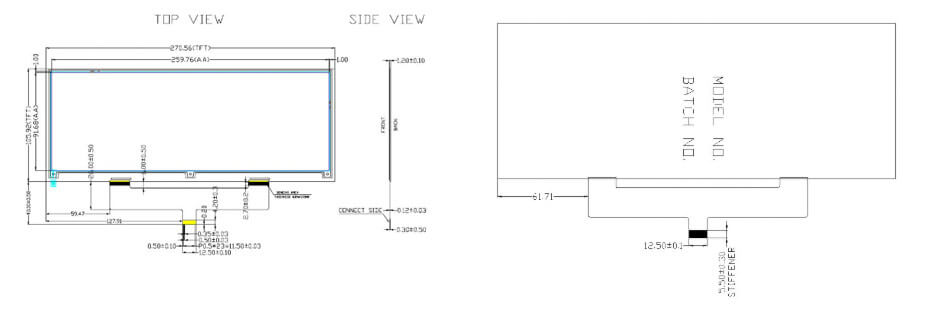

10.85 Inch Three-Color E-Paper Display Drawing

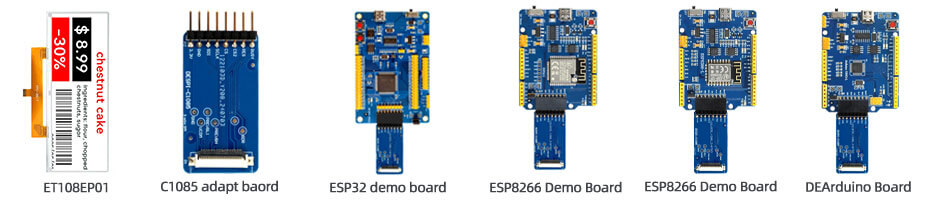

10.85 Inch E Ink Display Solution For Reference
ET108EP01
C1085 adapt baord
STM32 demo board
ESP32 demo board
ESP8266 Demo Board
DEArduino Board

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
