7.1"-10.1" LCD Display (10.1")

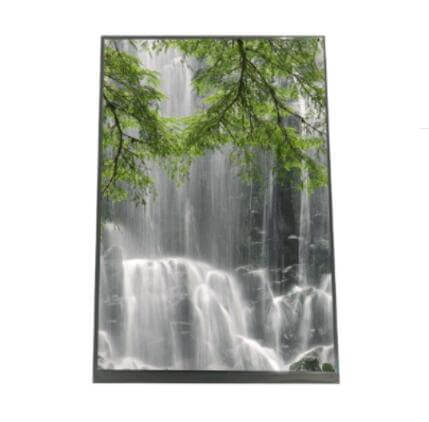

10.1inch ips panel full viewing angle 800x1280 lcd panel mipi interface

  • Part No.:ET101WX02-D
  • Size:10.1″ inch
  • Resolution:1280x800
  • Panel Interface:
  • Display mode:IPS
  • Outline Dimension:229.46(H)x149.10(V)x4.8(D)
  • Active Area:216.96(H)x135.60(V)
  • Viewing Angle L/R/U/D:85 85 85 85
  • Brightness（cd/m2）:350cd/m2
  • Operation / Storage Temp:-20/70°C / -30/80°C
  • Touch:no
Get a quote

Banner1-2

Display Mode IPS
Part NO. ET101WX02-D
Size 10.1"
Resolution 1280*800
Active Area(mm) 216.96(H)*135.60(V)
Brightness 800cd/m2
Operation Temperature ’-20/70°C
Storage Temperature -30/80°C
Viewing Angle 85 85 85 85
Interface LVDS 40pin

OEM 10.1" inch 800*1280 IPS lcd module with MIPI 4 lane 40pin interface, wide viewing angle for testing equipment ,3d printer

YouriTech 10.1 inch lcd panel 800X1280 IPS TFT LCD display WITH MIPI 4 lane 40pin INTERFACE for medical product

YouriTech 10.1 inch lcd panel 800X1280 IPS TFT LCD display WITH MIPI 4 lane 40pin INTERFACE for medical product
