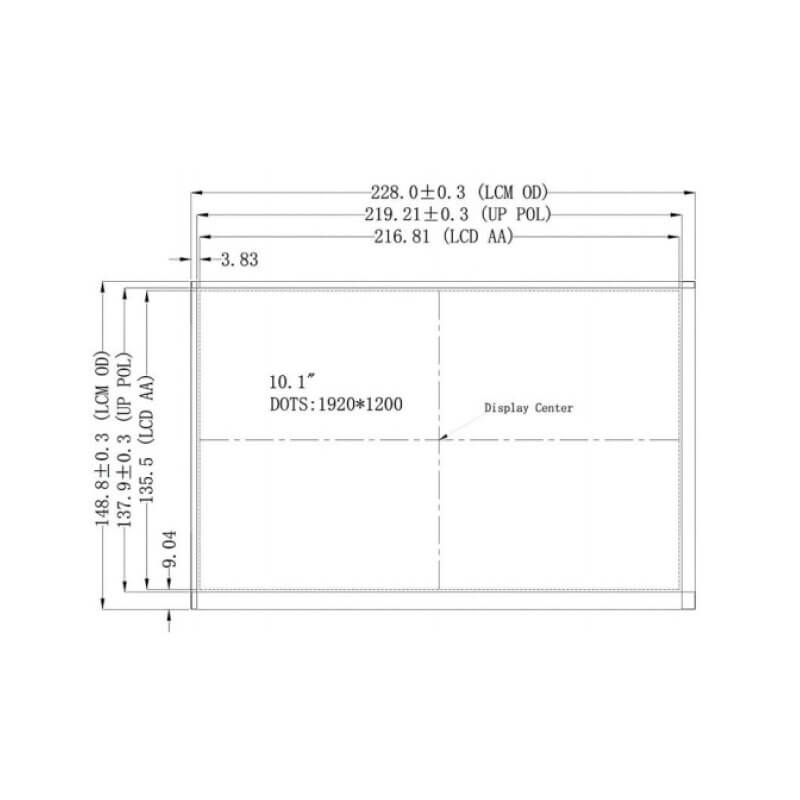

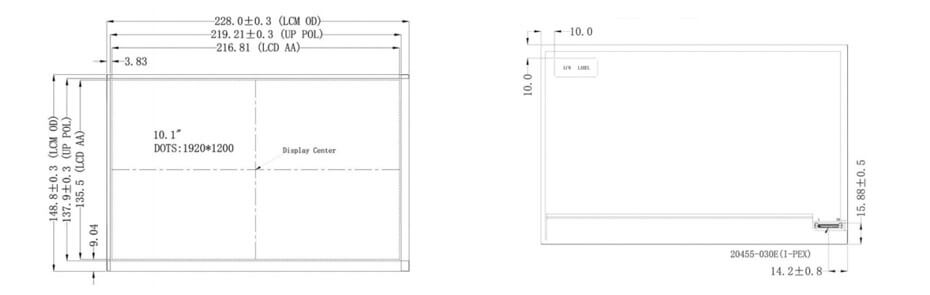

ET101WU03-R is a 10.1-inch diagonal TFT-LCD display module featuring a transmissive display mode. ET101WU03-R supports 1920×1200 (WUXGA) resolution with an aspect ratio of 16:10 (W), delivering sharp, detailed, and vibrant image quality for drone display applications. It features an active area of 216.81(W) × 135.50(H) mm and an outline dimension of 228.0(W) × 148.8(H) mm. ET101WU03-R can provide a high brightness of 1200 cd/m² and a wide viewing angle of 85/85/85/85 (L/R/U/D), ensuring excellent visibility in outdoor and high-ambient-light environments. Equipped with an eDP interface, it supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. Designed without a touch panel, ET101WU03-R is an ideal display solution for UAV ground control stations, drone monitoring systems, and other rugged outdoor industrial applications.

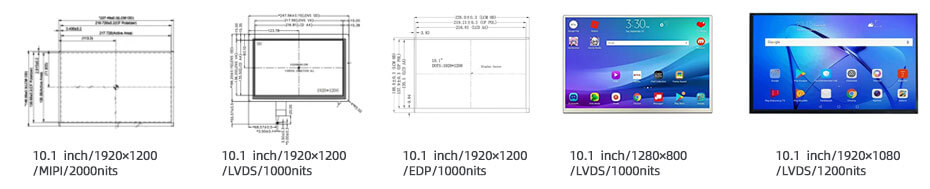

ET101WU01-R (1920×1200, MIPI, 2000nits, -20~80°C, 229.46×149.1mm)
ET101WU15-TT (1920×1200, LVDS, 1000nits, -20~70°C, 229.1×148.9mm, CTP)
ET101WU03-R (1920×1200, eDP, 1000nits, -20~80°C, 228.0×148.8×2.4mm)
ET101WX08-T (1280×800, LVDS, 1000nits, -20~70°C, 229.1×148.9mm)
ET101FH01-R (1920×1080, LVDS, 1200nits, -30~85°C, 236×142.1mm)
Sunlight Readability
-High brightness levels (typically 1000+ nits) ensure flight data, maps, and video feeds remain visible under direct sunlight.
Enhanced Contrast Ratio
-Delivers sharp image details and improved readability in varying lighting conditions.
High Resolution
-Sharp and detailed image display.
Wide Temperature Operation
-Stable performance in extreme conditions.
Anti-Glare & Anti-Reflective Technology
-Reduces screen reflections and glare for a clearer viewing experience.
Wide Viewing Angles
-Maintains consistent image quality when viewed from different positions during field operations.
Touchscreen Integration
-Responsive and intuitive user interaction.
Fast Response Time
-Supports real-time video transmission and responsive control interfaces for FPV and UAV monitoring.
Accurate Color Reproduction
-Provides true-to-life images for aerial photography, surveillance, and inspection tasks.
Low Power Consumption
-Optimizes battery life for portable drone controllers and ground control stations.
Rugged Reliability
-Resistant to vibration, shock, and harsh environments.
Reliable Outdoor Performance
-Designed to operate consistently in challenging environments, including bright sunlight, temperature fluctuations, and demanding field conditions.
Agricultural Drones
-Crop monitoring, spraying control, and field mapping.
Inspection Drones
-Power line, pipeline, solar panel, and infrastructure inspections.
Surveying & Mapping UAVs
-Land surveying, GIS mapping, and construction monitoring.
Security & Defense Drones
-Surveillance, reconnaissance, and mission control.
Emergency Response Drones
-Search and rescue, firefighting, and disaster assessment.
Logistics & Delivery Drones
-Route monitoring and fleet management.
Aerial Photography & Broadcasting
-Real-time video monitoring and camera control.
Industrial UAV Operations
-Asset management, environmental monitoring, and smart city applications.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
