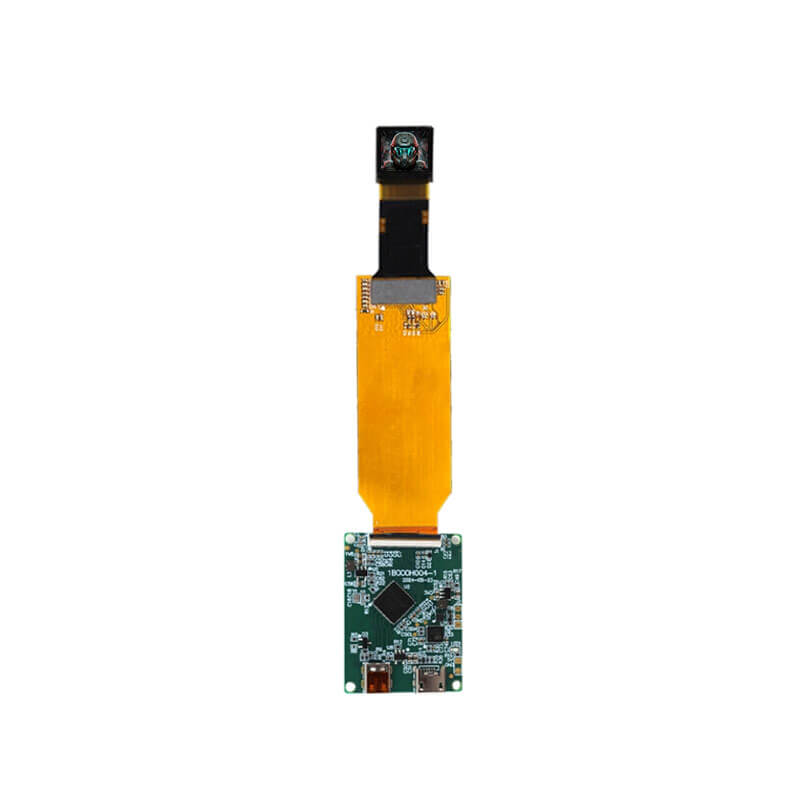

0.5 Inch Micro OLED Display 1600×1200 MIPI 1000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

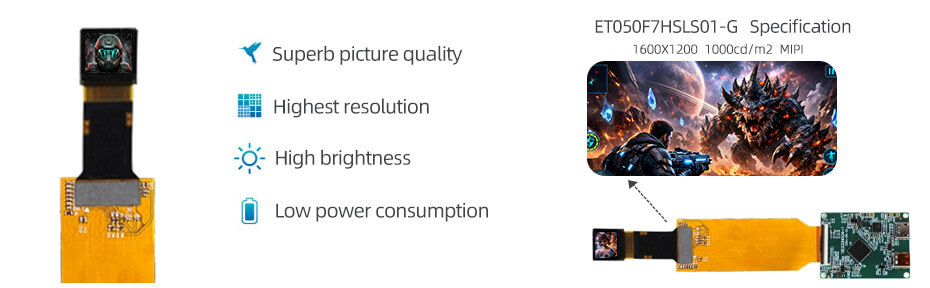

ET050F7HSLS01-G is a 0.5-inch diagonal Micro OLED display product featuring self-emissive technology. It supports a resolution of 1600×1200 with a 4:3 aspect ratio (W:H), delivering high-definition image quality and excellent visual performance. The display adopts a MIPI interface for stable high-speed data transmission. It features an active area of 10.08(W) × 7.56(H) mm, making it suitable for compact optical systems and wearable applications. ET050F7HSLS01-G provides a display brightness of 1000 cd/m², ensuring clear visibility under various lighting conditions. Designed for demanding environments, it supports an operating temperature range of -20°C to 70°C and a storage temperature range of -40°C to 80°C. With no touch function integrated, this module is an ideal display solution for EVF, AR devices, and red dot sight applications.

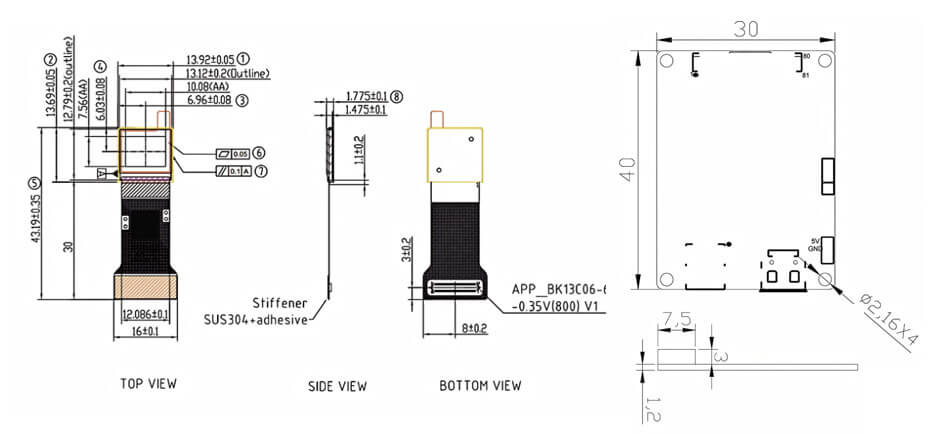

0.5 Inch Micro OLED Display 1600×1200 MIPI 1000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
