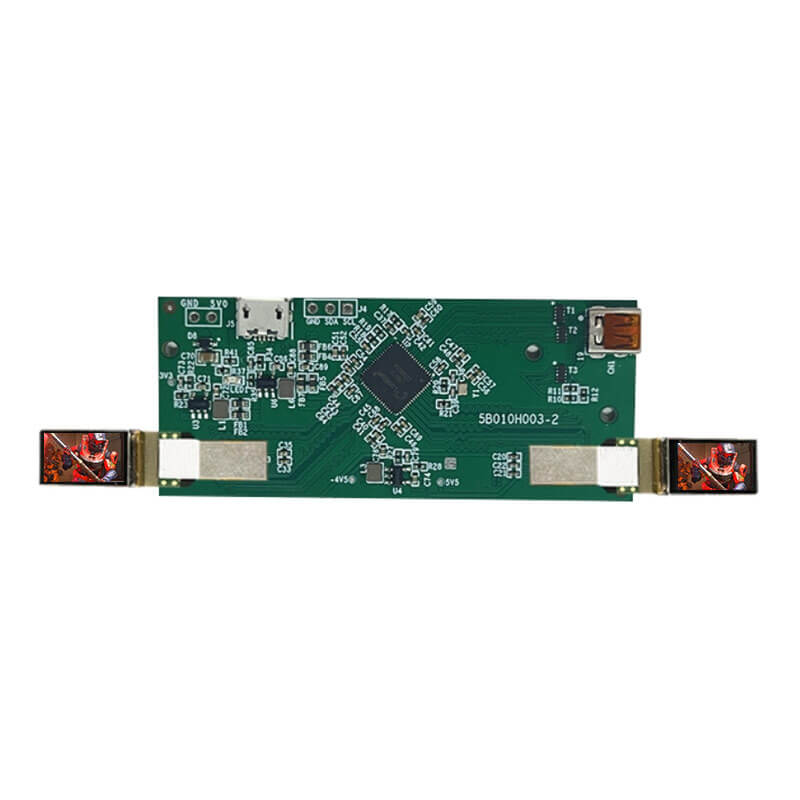

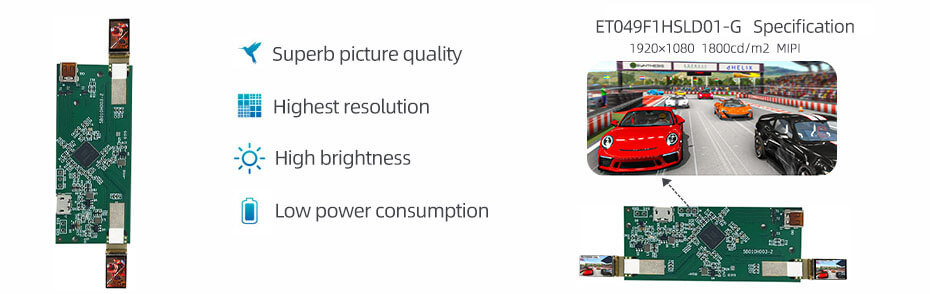

0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness OLED Display With HDMI Driver Board For EVF AR Red Dot Sight Display Solutions Overview

ET049F1HSLD01-G is a 0.49-inch Si-OLED micro display with self-emitting technology, designed for EVF, AR, and red dot sight applications. It features a 1920×1080 Full HD resolution with a 16:9 aspect ratio, MIPI interface, and an active area of 10.78 × 6.07 mm. The display delivers 1800 nits high brightness for clear visibility in bright environments and supports wide operating temperatures from -20°C to 70°C (storage -40°C to 80°C). It is a non-touch module optimized for compact, high-performance optical and near-eye display systems with HDMI driver board integration.

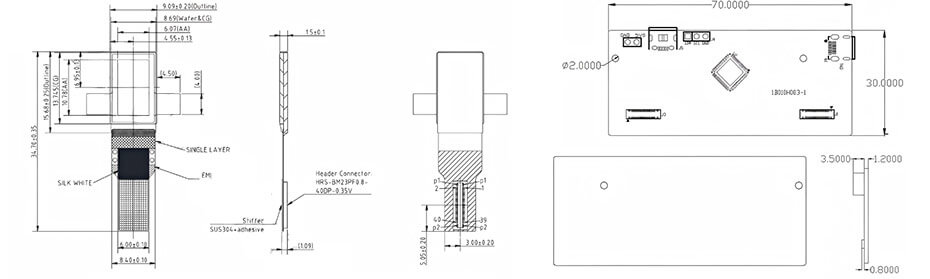

0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness OLED Display With Type-c Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

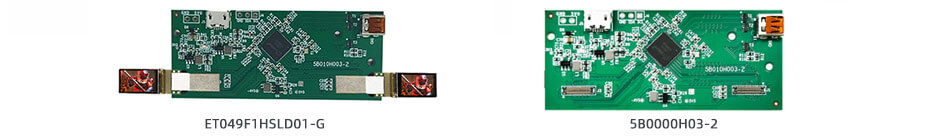

0.49 Inch Micro OLED Display Solution For Reference
ET049F1HSLD01-G
5B0000H03-2

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
