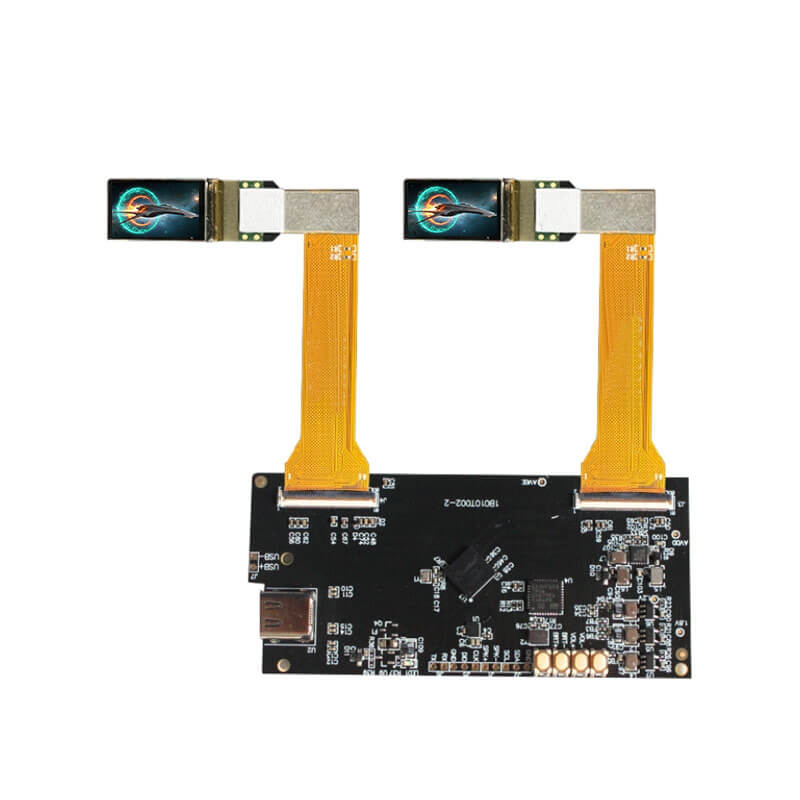

0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness Dual OLED Display With Type-c Driver Board For EVF AR Red Dot Sight Display Solutions Overview

ET049F1TSLD01-G is a 0.49-inch diagonal Micro OLED display module designed for high-resolution EVF, AR, and red dot sight display solutions. It supports a full HD resolution of 1920×1080 with a 16:9 aspect ratio, delivering ultra-fine image detail on a compact form factor. The panel adopts Si-OLED self-emissive display technology and uses a MIPI interface for high-speed data transmission, and it can be paired with a Type-C driver board for development and integration convenience. The active area measures 10.78 × 6.07 mm, enabling extremely high pixel density performance in a miniature display format. It provides a typical brightness of up to 1800 cd/m², making it suitable for high ambient light environments, and supports an operating temperature range of -20°C to 70°C with a storage range of -40°C to 80°C. The module does not include touch functionality, focusing on high-performance visual output for professional optical and wearable display applications.

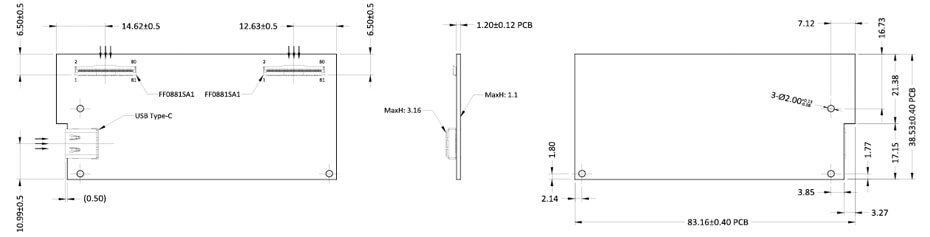

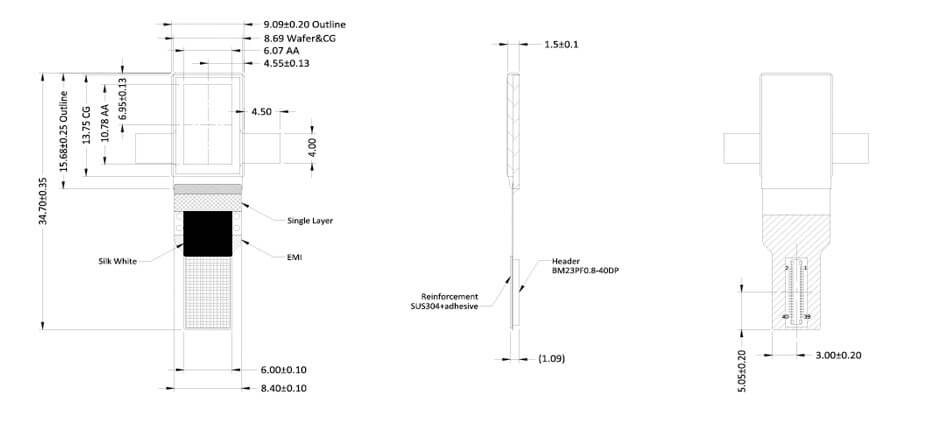

0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
