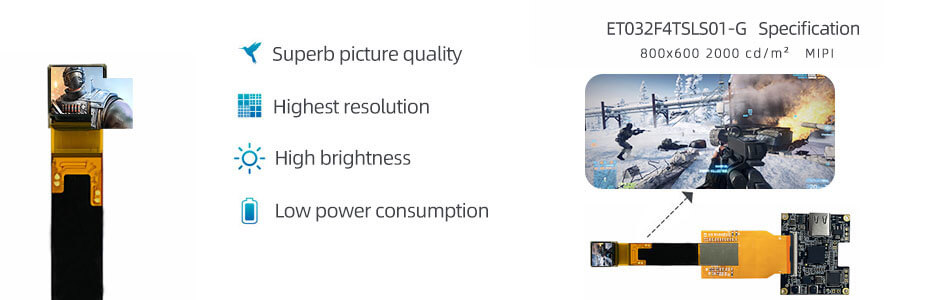

0.32 Inch Micro OLED Display 800×600 RGB MIPI High Brightness 2000nits OLED Display For EVF AR Red Dot Sight Display Solutions Overview

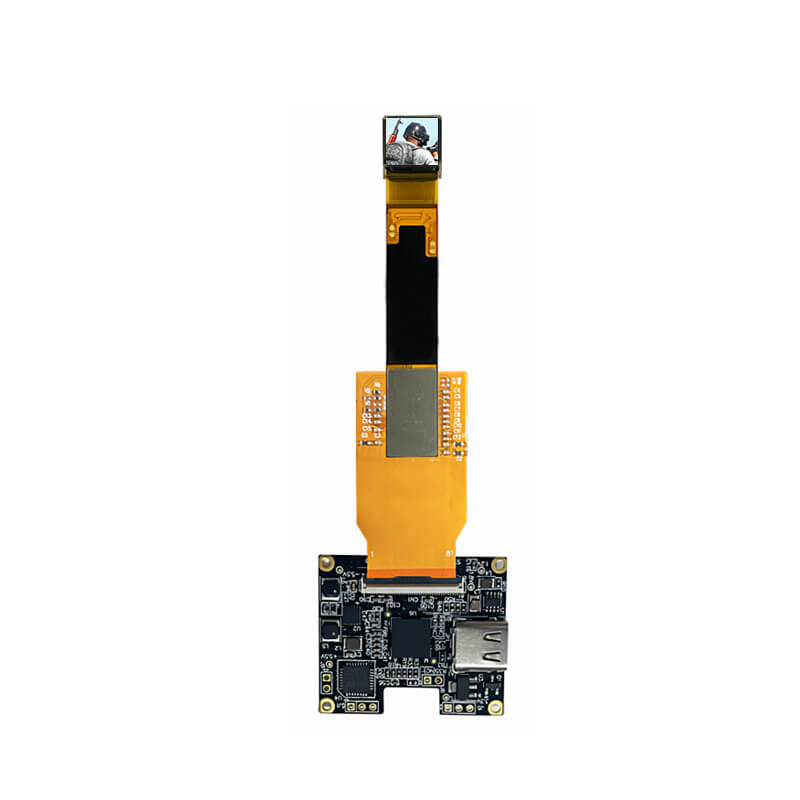

ET032F4TSLS01-G is a 0.32-inch diagonal Si-OLED display screen product, self-emitting and designed for compact high-performance optical display applications. ET032F4TSLS01-G supports a display resolution of 800×600 with an aspect ratio of 4:3 (W), delivering sharp image quality and high pixel density for precision near-eye viewing systems. It features an active area of 6.48(W) × 4.86(H) mm and an outline dimension of 10.45(W) × 9.94(H) mm, enabling compact and lightweight optical module integration. Supporting both MIPI and RGB interfaces, ET032F4TSLS01-G offers flexible connectivity for various embedded display solutions. The module can provide a high brightness of 2000 cd/m², ensuring excellent visibility even under strong ambient light conditions. Based on self-emissive Si-OLED technology, it delivers high contrast ratio, fast response time, and vivid image reproduction, making it highly suitable for EVF (Electronic Viewfinder), AR devices, red dot sights, and wearable display applications. ET032F4TSLS01-G supports an operating temperature range of -20°C to 70°C and a storage temperature range of -40°C to 80°C, ensuring stable and reliable performance in industrial and outdoor environments.

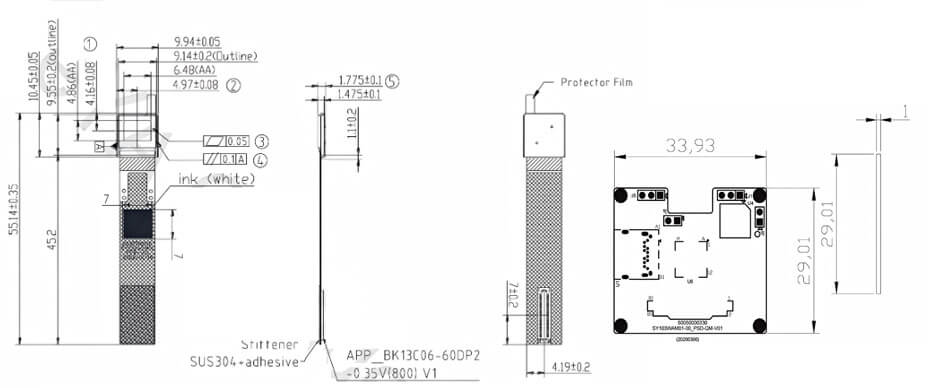

SY032WEM01-91 0.32 Inch Micro OLED Display 800×600 RGB MIPI OLED Display For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
