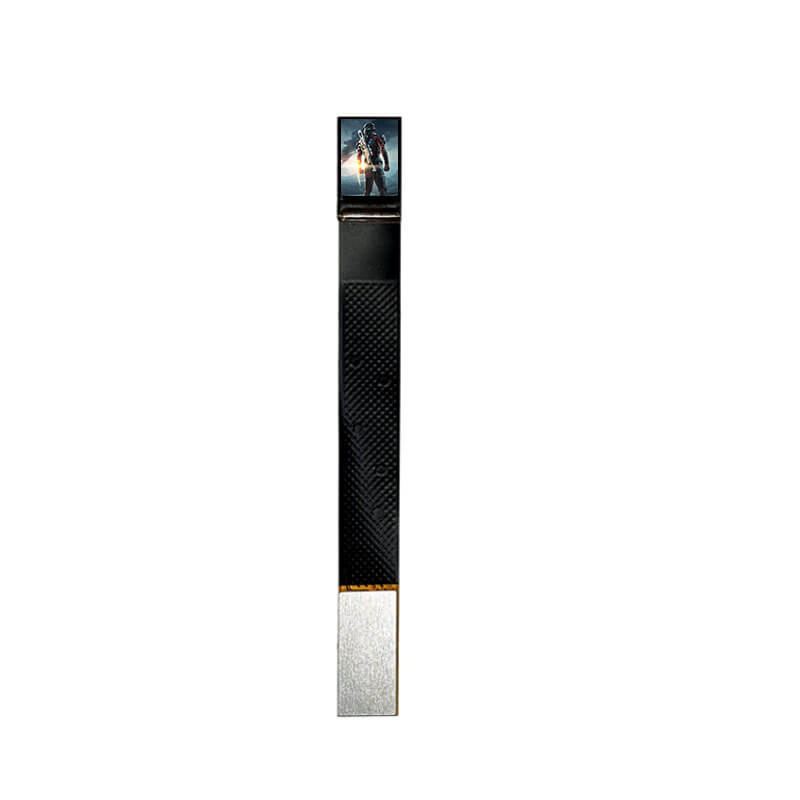

0.23 Inch Micro OLED Display 640×400 MIPI High Brightness 5000nits OLED Display For EVF AR Red Dot Sight Display Solutions Overview

ET023VGH04-G is a 0.23-inch Micro OLED display module with a 640×480 resolution and MIPI interface, designed for compact optical applications such as EVF, AR devices, and red dot sight systems. It features a self-emitting OLED structure with 5000 cd/m² brightness for clear visibility in various lighting conditions. The active area measures 5.06 × 3.29 mm, enabling ultra-compact integration in space-limited designs. It operates in a temperature range of -40℃ to 65℃ and does not support touch functionality. With its small size, stable performance, and balanced brightness, it is well suited for precision near-eye display solutions.

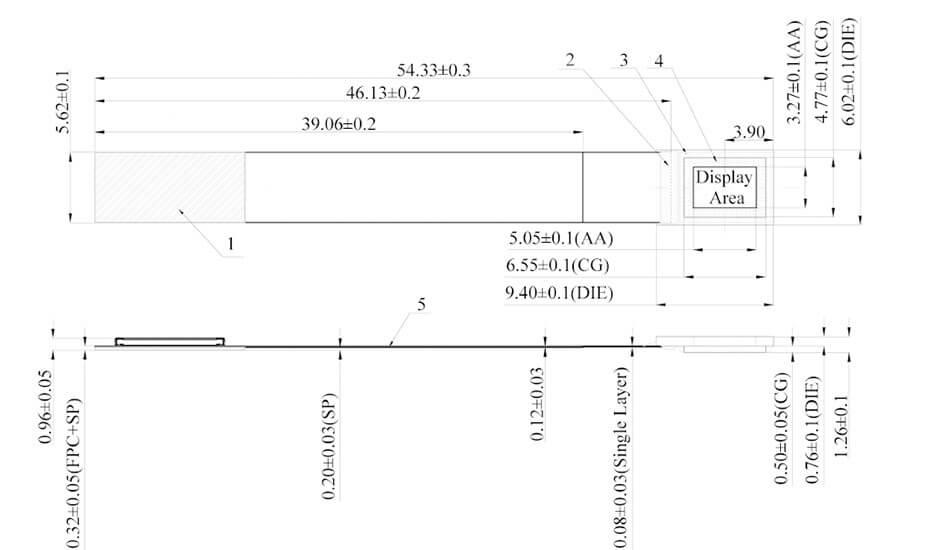

0.23 Inch Micro OLED Display 640×400 MIPI High Brightness 3000nits OLED Display With HDMI Board For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
