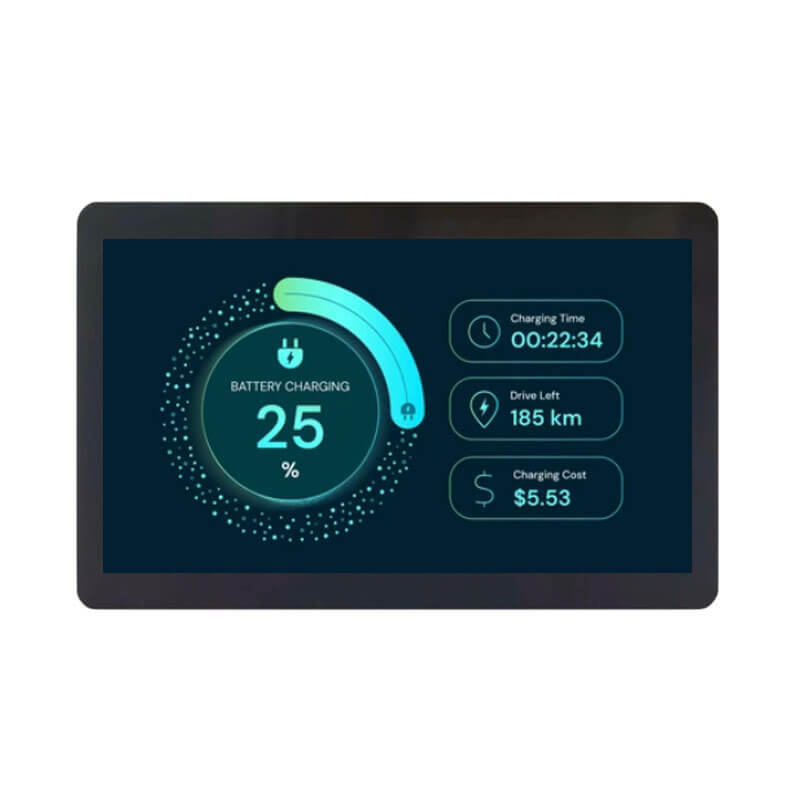

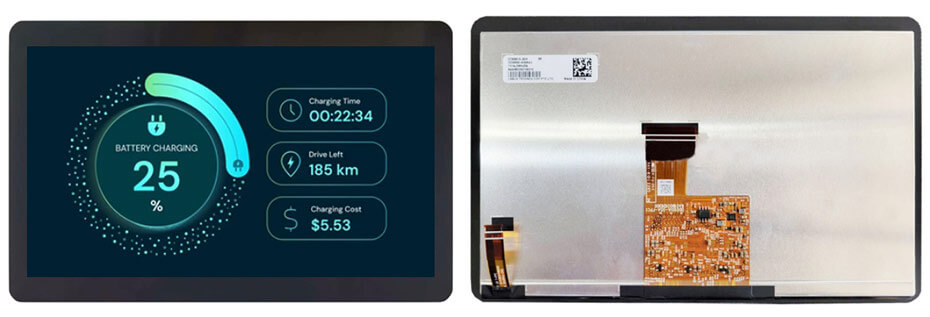

DD080IA-20A is a 8.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen In-Cell Touch.DD080IA-20A supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 200.6(W)×127.4(H)×9(D) mm, with surface treament of Antiglare, net weight of 255g (Max.). As a AAS, Normally Black, Transmissive LCM product, DD080IA-20A can provides 700 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 26.6 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. DD080IA-20A utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
More 8 Inch EV Charger Display For Reference
DJ080IA-11A (1280×720, LVDS, 750nits, -30~85°C, 192.8×116.9mm)
A0800WXF1MB00 (1280×720, LVDS, 1200nits, -30~85°C, 192.8×116.9mm)
DD080IA-20A (1280×720, LVDS, 700nits, -30~85°C, 200.6×127.4mm, In-Cell Touch)
AV080HDM-N19 (1280×720, LVDS, 800nits, -30~85°C, 192.8×116.9mm)
ET080WS01-Z1 (1024×600, LVDS, 1500nits, -30~80°C, 192.8×116.9mm)
P0800WVF1MA00 (800×480, LVDS, 1000nits, -30~80°C, 192×122mm)
TX20D200VM5BAA (800×480, LVDS, 1000nits, -30~80°C, 192×122mm)
TX20D200VM2BAB (800×480, LVDS, 1500nits, -30~80°C, 189×122mm)
TX20D208VM0BAA (800×480, LVDS, 1200nits, -40~85°C, 190.8×120.5mm)
AV080WVM-N15 (800×480, TTL, 840nits, -40~85°C, 185.7×119.6mm)
TX20D200VM2BVA (800×480, LVDS, 1300nits, -30~80°C, 200×124mm, CTP Touch)
ET080WV30-TT (800×1280, MIPI, 800nits, -20~70°C, 121×194mm, In-Cell Touch)
ET080WU11-TT (1920×1200, LVDS, 1000nits, -20~70°C, 181.7×119.8mm, CTP Touch)
ET080WWV-R1 (1920×1200, LVDS, 2000nits, -30~85°C, 179×119mm)
TM080SDHG02-41 (800×600, TTL, 700nits, -20~70°C, 183×141mm)
TX20D207VM0AAA (1280×768, LVDS, 1200nits, -40~85°C, 189.5×119.4mm)
-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support
High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.
-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
