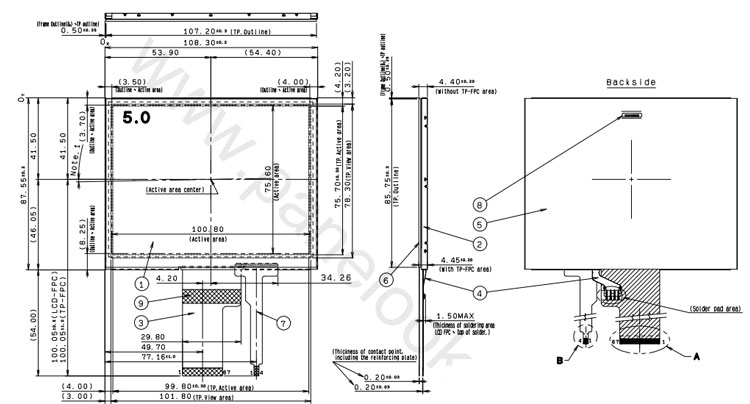

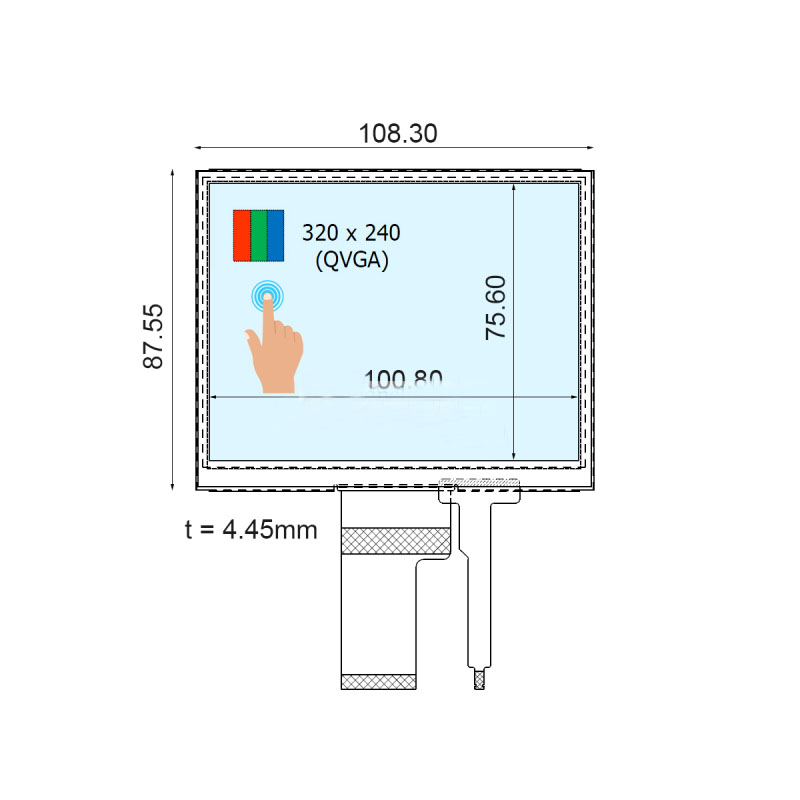

COM50T5117GTC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 100.8(W)×75.6(H) mm, outline size of 108.3(W)×87.55(H)×4.65(D) mm, net weight of 80.0g (Typ.). As a TN, Normally White, Transmissive LCM product, COM50T5117GTC can provides 320 cd/m² display brightness 60:1 transimissive contrast ratio, 40/40/20/65 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. COM50T5117GTC utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
