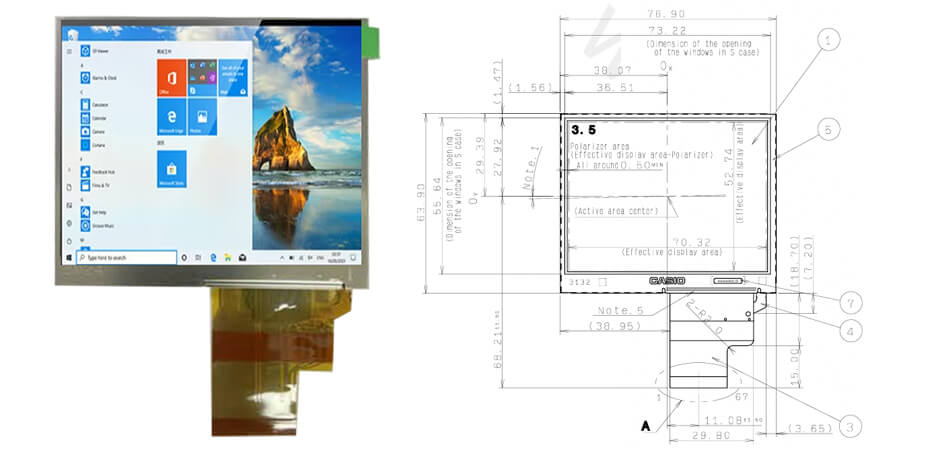

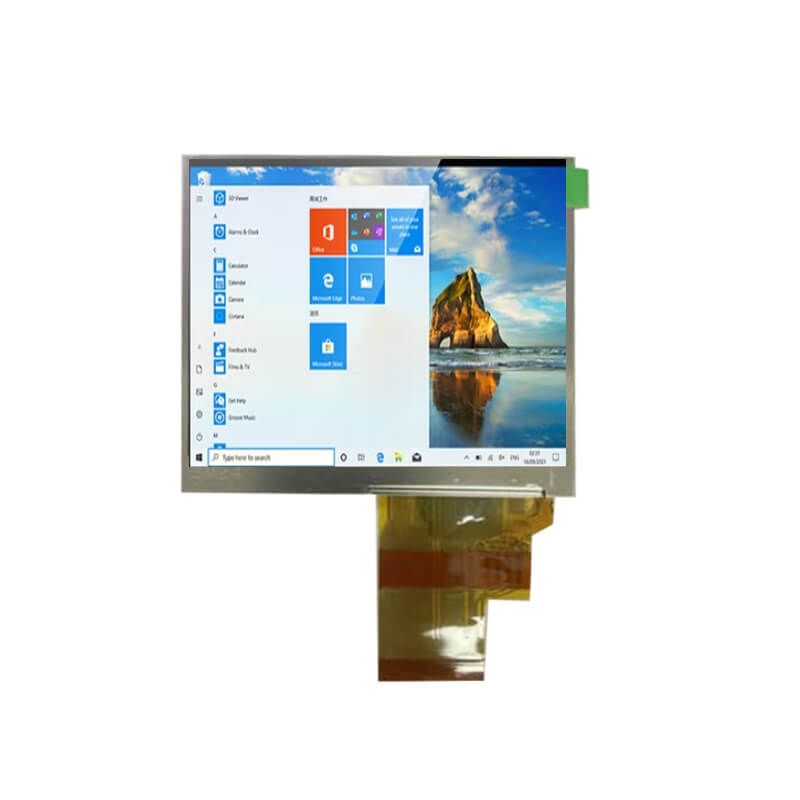

COM35T3196DLC is a 3.5 inch diagonal a-Si TFT-LCD display screen product from CASIO, with a built-in WLED backlight, without backlight driver, without touch screen.COM35T3196DLC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 70.32(W)×52.74(H) mm, outline size of 76.9(W)×63.9(H)×3.38(D) mm, viewing area size of 73.22(W)×55.64(H) mm, with surface treament of Hard coating (3H), net weight of 32.4g. As a TN, Normally White, Transmissive LCM product, COM35T3196DLC can provides 400 cd/m² display brightness 450:1 transimissive contrast ratio, 60/60/35/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. COM35T3196DLC utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.0V (Typ.)(ADD). It's typical vertical frame rate (Fv) is 60Hz.
-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
