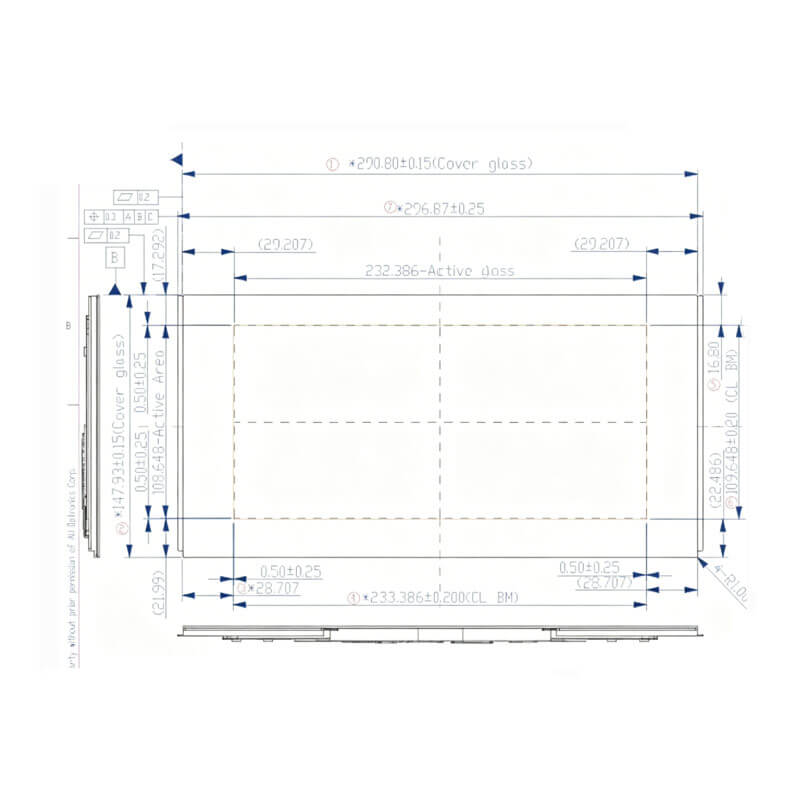

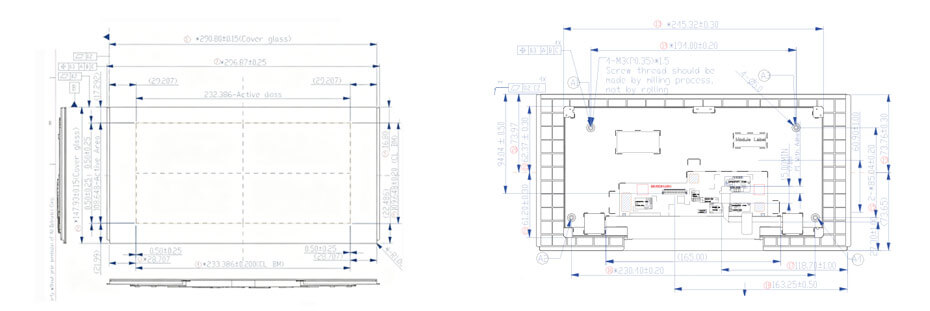

C101HAA01.0 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, without backlight driver, touchscreen In-Cell Touch.C101HAA01.0 supports display 1540(RGB)×720 with aspect ratio of 2:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 232.386(W)×108.648(H) mm, outline size of 290.8(W)×147.93(H) mm, with surface treament of Anti Fingerprint + Antiglare, Hard coating, net weight of 415g (Typ.). As a AHVA, Normally Black, Transmissive Assembly product, C101HAA01.0 can provides 1450 cd/m² display brightness 1000:1 transimissive contrast ratio, TBD (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. C101HAA01.0 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
More 10.1 Inch EV Charger Display For Reference
G101EVN03.1 (1280×800, LVDS, 1000nits, -20~70°C, 227.69×148.31mm)
G101ICE-LH2 (1280×800, LVDS, 1200nits, -30~80°C, 230.7×152.55mm)
TM101JDHG33-00 (1280×800, LVDS, 900nits, -30~80°C, 229.8×149mm)
DJ101IA-07A (1280×720, LVDS, 750nits, -30~85°C, 238.6×148mm)
P1010WXF1MA01 (1280×800, LVDS, 1000nits, -30~80°C, 229.8×149mm)
TM101JDHG32-00 (1280×800, LVDS, 1000nits, -20~70°C, 229.8×149mm)
NL12880BC16-02F (1280×800, LVDS, 1000nits, -30~80°C, 235.4×153.8mm)
ET101WX08-T (1280×800, LVDS, 1000nits, -20~70°C, 229.1×148.9mm)
GV101WUM-N40 (1920×1200, eDP, 1000nits, -20~70°C, 228.2×149mm)
TX26D202VM0BAA (1920×1200, LVDS, 800nits, -30~80°C, 232.1×153.2mm)
C101UAN01.0 (1920×1200, LVDS, 1400nits, -30~85°C, 236.96×163mm)
C101UAT03.0 (1920×1200, LVDS, 900nits, -30~85°C, 278.94×155.25mm)
ET101WU14-O (1920×1200, LVDS, 1100nits, -20~70°C, 229.4×150.5mm)
ET101WU15-TT (1920×1200, LVDS, 1100nits, -20~70°C, 229.1×148.9mm, CTP Touch)
COG-VLSZT115-01 (1920×1080, LVDS, 1100nits, -40~85°C, 237.69×142.7mm)
ET101WV30-TT (800×1280, MIPI, 750nits, -20~70°C, 166×249mm, CTP Touch)
P1010WSN1MA00 (1024×600, TTL, 920nits, -20~70°C, 235×143mm)
ET101WS06-TT (1024×600, TTL, 700nits, -20~70°C, 252×150mm, CTP Touch)
AV101FHT-T10-28P0 (1920×1080, LVDS, 700nits, -30~85°C, 244.85×159.25mm, CTP Touch)
C101HAA01.0 (1540×720, LVDS, 1450nits, -30~85°C, 290.8×147.93mm, In-Cell Touch)
-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support
High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.
-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
