9 Inch Wide Temperature LCD Display Overview

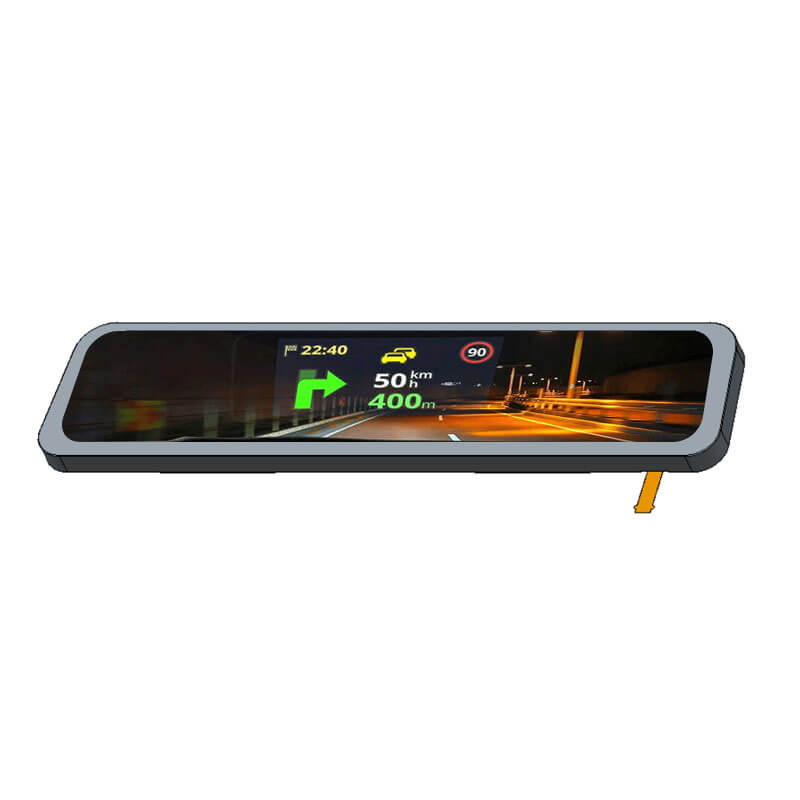

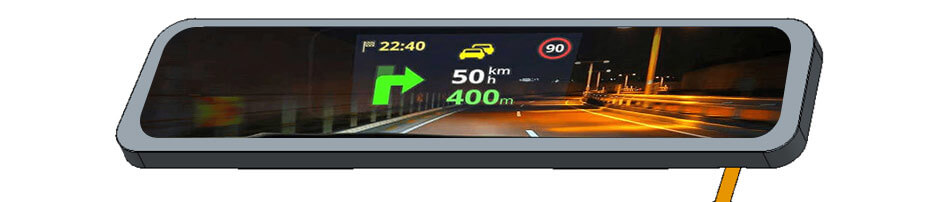

The ET090BA01-WT is a 9-inch wide-temperature, ultra-high-brightness TFT LCD display module. It features a resolution of 1920x384, utilizes an LVDS interface, and delivers an exceptional brightness of 3000 nits. The module supports a wide operating temperature range of -30°C to 80°C, with a storage range of -30°C to 85°C. Its active display area measures 224.64x44.93 mm, housed within an outline dimension of 242.75x56.13 mm. The display provides symmetrical and wide viewing angles of 85/85/85/85 (L/R/U/D) and does not incorporate touch functionality.
More 9 Inch Wide Temperature Displays For Reference
ET090HD01-GL (LCD, 1280×720, LVDS, IPS, 800nits, -30~80°C, 174×136mm)
ET090WS01-J (LCD, 1024×600, LVDS, IPS, 450nits, -30~85°C, 210.7×126.5mm)
ET090BA01-WT (LCD, 1920×384, LVDS, IPS, 3000nits, -30~80°C, 242.75×56.13mm)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
