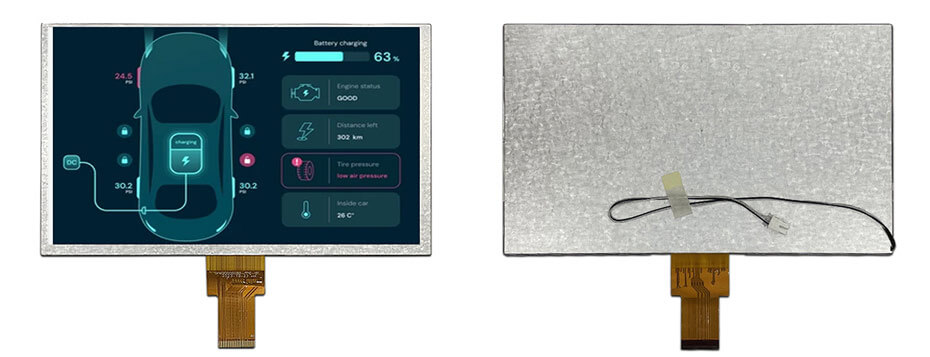

9 Inch TFT LCD Display 1024×600 High Brightness LVDS Wide Temperature -30~80°C LCD Display For EV Charger

9 Inch TFT LCD Display 1024×600 High Brightness LVDS Wide Temperature -30~80°C LCD Display For EV Charger Video

9 Inch TFT LCD Display 1024×600 High Brightness LVDS Wide Temperature -30~80°C LCD Display For EV Charger Overview

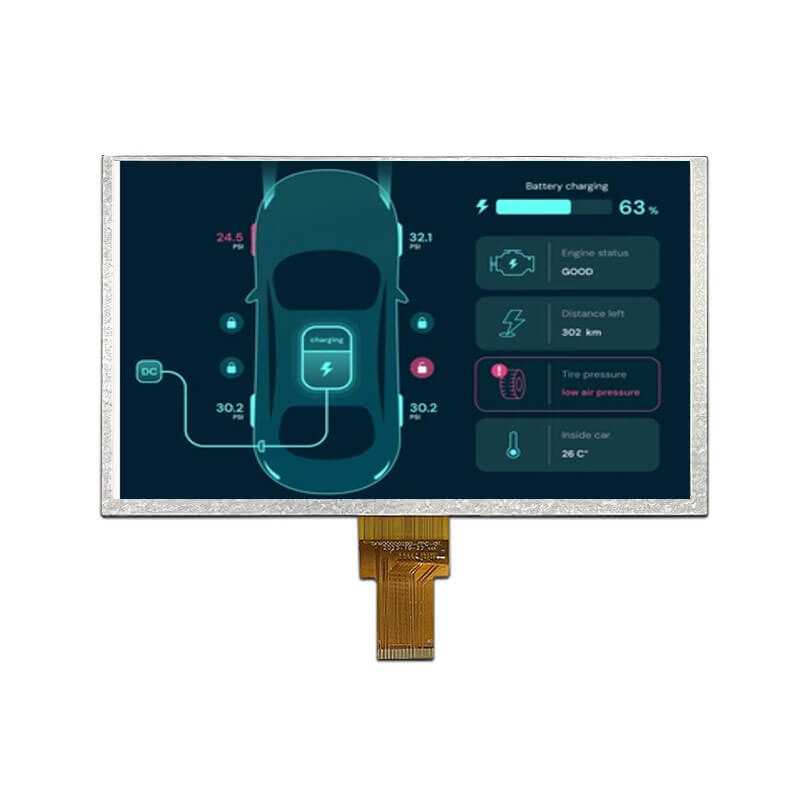

ET090WS01-T is a 9.0-inch TFT LCD display module designed for EV charger, industrial control, and outdoor terminal applications. ET090WS01-T supports a display resolution of 1024×600 with an aspect ratio of 17:10 (W), utilizing an LVDS interface and Transmissive display mode. It features an active area of 196(W) × 114(H) mm and an outline dimension of 210(W) × 126(H) mm. ET090WS01-T provides a typical brightness of 900 cd/m² and wide viewing angles of 85/85/85/85 (L/R/U/D), ensuring excellent visibility and image clarity in high ambient light conditions. Designed for harsh environments, it supports an ultra-wide operating and storage temperature range of -30°C to 80°C, making it a reliable display solution for EV charging stations, smart energy systems, and industrial equipment.

More 9 Inch EV Charger Display For Reference
DD090IA-05A (1280×720, LVDS, 850nits, -30~85°C, 225×145mm, In-Cell Touch)
TX23D203VM0BAA (800×480, LVDS, 1000nits, -40~85°C, 218×135mm)
TM090JDKP01 (1280×720, LVDS, 1100nits, -40~85°C, 211.5×128.08mm)
ET090WS01-T (1024×600, LVDS, 900nits, -30~80°C, 210×126mm)

Youritech EV Charger Display -Global Leading Touchscreen Design, Integration and Manufacturing

-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support

Engineered Hardware for EV Charger Displays

High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.

Applications For EV Charger Display

-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations

Youritech EV Charger Display Production and Manufacturing
