7.1"-10.1" LCD Display (9.7")

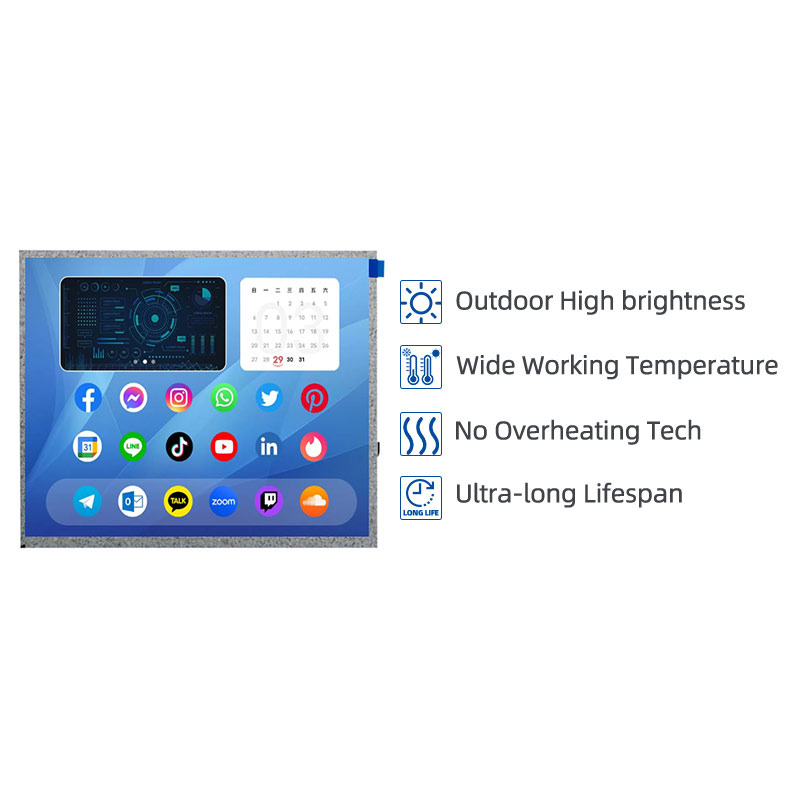

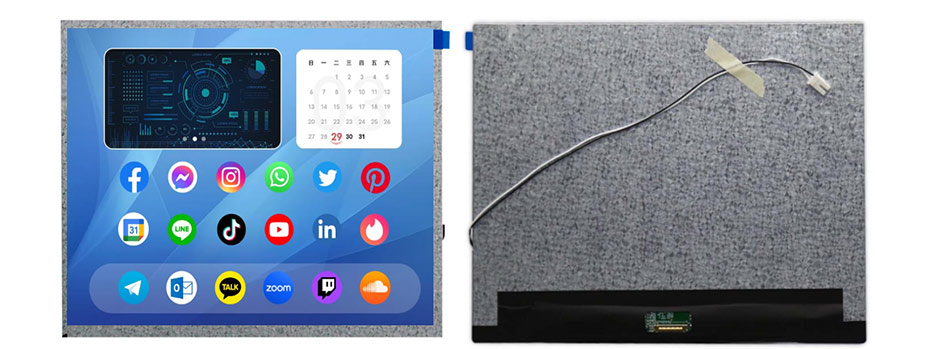

9.7 Inch High Brightness Display 1300nits IPS 1024x768 LVDS TFT LCD Display

Part No.:ET097WX01-V
Size:9.7″ inch
Resolution:1024x768
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:210.2x164.2mm
Active Area:196.608x147.456mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1300(Typ.)
Operation / Storage Temp:-10~50°C / -20~60°C
Touch:no

9.7 Inch High Brightness LCD Display Overview
ET097WX01-V is a 9.7-inch high-brightness IPS TFT LCD display featuring a 1024 × 768 resolution in transmissive mode. It supports an LVDS interface and delivers a typical brightness of 1300 cd/m² with wide 85° viewing angles in all directions. The display has an active area of 196.608 × 147.456 mm and an outline dimension of 210.2 × 164.2 mm. It operates reliably from −10 to 50 °C (storage −20 to 60 °C) and does not include touch functionality.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
