7 Inch UART TFT Display HD IPS 1024x600 Low Power Consumption Script Configuration Serial TFT Display With Capacitive Touch/Resistive Touch

7 Inch Serial Port Screen Overview
7 Inch UART TFT Display HD IPS 1024x600 Low Power Consumption Script Configuration Serial TFT Display With Capacitive Touch/Resistive Touch.
Product Model

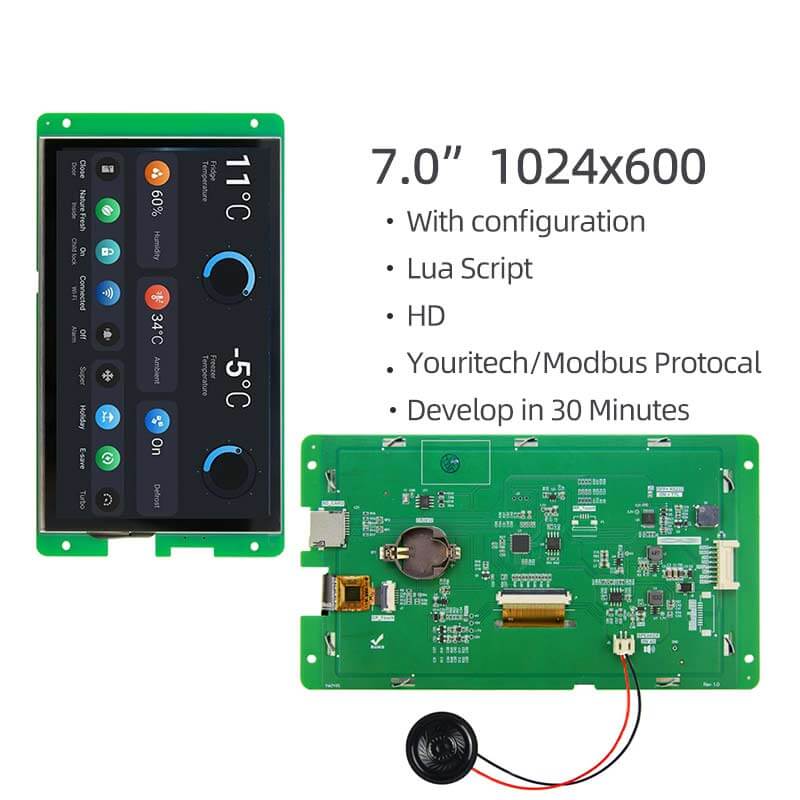

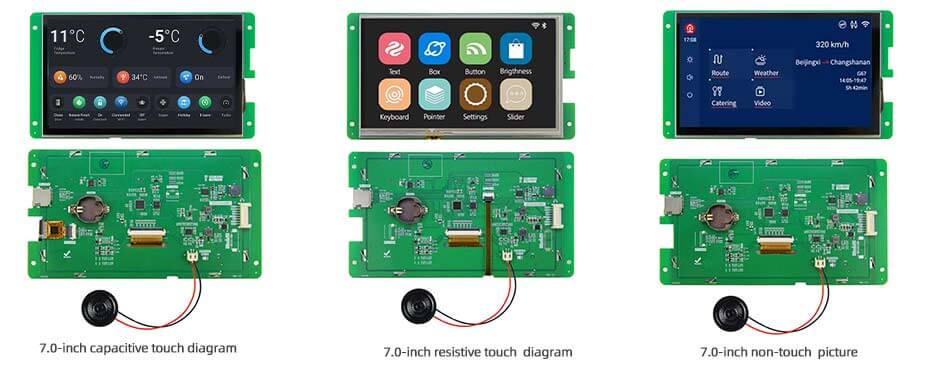

ET070DN1060-DCC(Capacitive touch)
ET070DN1060-DCT(Resistive touch)
ET070DN1060-DCN(No touch)
ET070DN1060-IDCC(IPS Capacitive touch)
ET070DN1060-IDCT(IPS Resistive touch)
ET070DN1060-IDCN(IPS No touch)

7 Inch Serial Port Screen Product Parameters
Core processor: 400M SOC processor
Operating system: No operating system, it can run after power on, startup time: about 1 second.
Protocol type: Default Dacai configuration instruction set, the host computer can be configured to run MODBUS RTU and XGUS protocols.
Scripting language: Version 5.3 LUA script, the screen can run logic, protocols and algorithm functions written by the user.
Size: 7.0 inches
Resolution:1024x600
Installation direction: Supports 0, 90, 180 and 270 degree rotation installation display.
Storage space: 128Mbit
Font library: Built-in vector fonts, edge anti-aliasing processing, supports any size ASCII, GBK, GB2312, UNICODE (global language) font library, and can also customize any computer font display.
Image storage: Supports JPEG, PNG (semi-transparent/fully transparent) compression, and supports image storage of any size. It can store about 115 full-screen pictures in total (calculated based on the size of 120KB/picture, BMP format is not recommended). Depending on the image compression ratio, this value will fluctuate up and down.
Color: 65K colors, 16-bit RGB
Voltage:5-28V
Power consumption
Sleep: 0.1W
Darkest backlight, no speaker: 0.8W
The darkest backlight and speakers: 3.0W
Brightest backlight, no speaker: 2.3W
The brightest backlight and speakers: 4.5W
Communication method: RS232/TTL (factory default 232 level, short J5 for TTL level).
Communication baud rate: RS232/TTL: 1200~921600bps, typical baud rate: 115200bp.
Communication connector specifications: Default HY2.0-8P, optional FPC1.0-10P
Picture local download: SD card, serial port
Firmware local/remote upgrade: Insert the SD card for local upgrade/support user motherboard remote serial port upgrade screen firmware.
Remote image upgrade: Support users to remotely use their own motherboard serial port to upgrade screen-related image projects, fonts, and configuration files.
Real-time clock: supports clock, timer, countdown and other functions

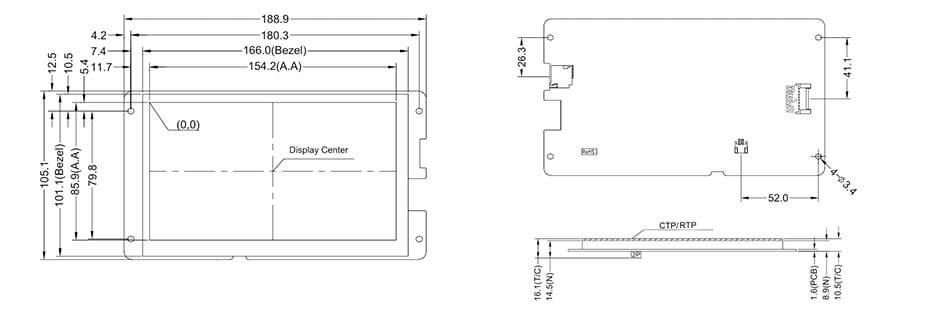

Screen effective display area: 154.2mmx85.9mm
Product size:188.9mmx105.1mmx16.1mm
Supporting host computer software: VisualTFT®
Audio playback: MP3 audio format (speaker 4Ω 2W, mono), shares storage space with pictures. If the sampling rate of mp3 format is 128kbps, it takes up 0.92MB/minute of storage.
Audio connector specifications: PH2.0-2P.

Reliability parameters
Operating Temperature: 20~+70°C
Storage Temperature: 30~+80°C
ESD test: Test standard: IEC 61000-4-2 Contact: ±5KV; Air: ±14KV
EFT test: Test standard: IEC 61000-4-4 National Standard 4 (voltage: ±4KV; frequency: 100/5KHZ; time: 120S), no restart, no display abnormality, no touch abnormality and other phenomena, the test function is normal.
Radiation test: Test standard: EN55022 ClassB margin -6dB Test environment: three-meter dark wave room.

Core competitiveness of products
Learning cycle: 30 minutes to familiarize yourself with the development environment, 3 days to complete human-computer interaction design.
Program debugging: The host computer integrates a "virtual serial port screen," eliminating the need for hardware connection and allowing direct Keil debugging. IDE-bound debugging
Startup Time: Runs instantly upon power-up, eliminating system loading time
Configuration Controls: Features a variety of configuration controls, including multi-language controls, buttons, text, drop-down menus, progress bars, sliders, meters, animations, QR codes, curves, data loggers, circular progress bars, and sub-screen slide controls.
System Keyboard: Built-in virtual numeric and character keyboards, supporting Chinese and English input methods, and customizable keyboards.
Data Logging: Supports exporting data logger content to an SD card.
Layer Technology: Multiple display layers are built into the system for faster switching.
Multilingual Capability: Factory-preset up to 15 global languages, enabling one-click switching without the need for multiple UIs.
Logical Operation Processing: The host computer has an embedded LUA script parser, allowing users to customize complex logic relationships and protocols within the screen, meeting 99.9% of customer product requirements.
Remote Upgrade: Supports remote serial port upgrades of display firmware, project files, specified images, configuration files, and fonts.
Lifecycle: Utilizes a traditional, leading-edge processor, ensuring long-term supply.

Touch panel (resistance and capacitance optional)
Touch Type: Capacitive Touchscreen (IC: GT911)
Capacitive Touch Modes: Single-touch and Slide Touch
Capacitive Touch Transmittance: Over 90%
Capacitive Touch Lifespan: Theoretically, unlimited touches are possible; touch lifespan is dependent on operating environment (dust and humidity).
Capacitive Cover Customization: Customizable "glass cover + capacitive touch" lamination service based on user drawing dimensions.
Touch Type: Resistive Touchscreen
Resistive Touch Modes: Single-touch and Slide Touch
Resistive Touch Transmittance: Over 80%
Resistive Touch Lifespan: Over 1 million touches per pixel.

Customized services
Customization Fees: For orders of 1,000 units, some customization fees may be waived.
Hardware Circuits: Customizable PCB size, circuit thickness, custom circuitry, military-grade temperature display, and more.
Software Customization: Customizable instructions or controls based on user needs, reducing development effort.
Design Services: Graphic design and product structure design services available.
Other: Customizable on demand to meet all user needs.
