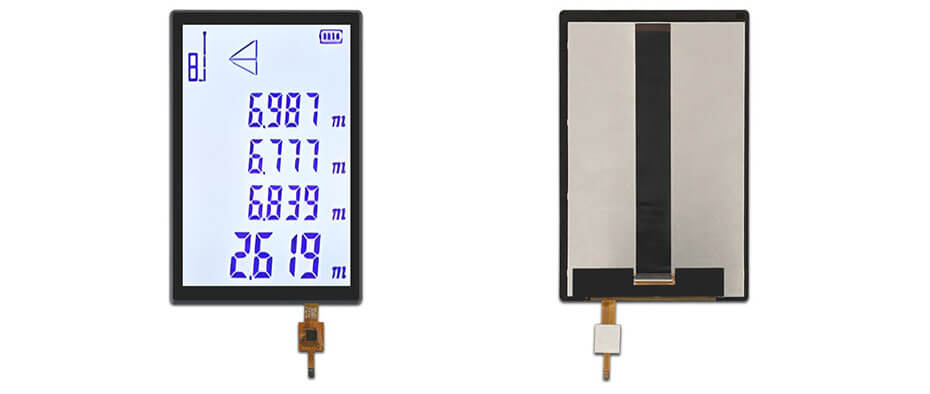

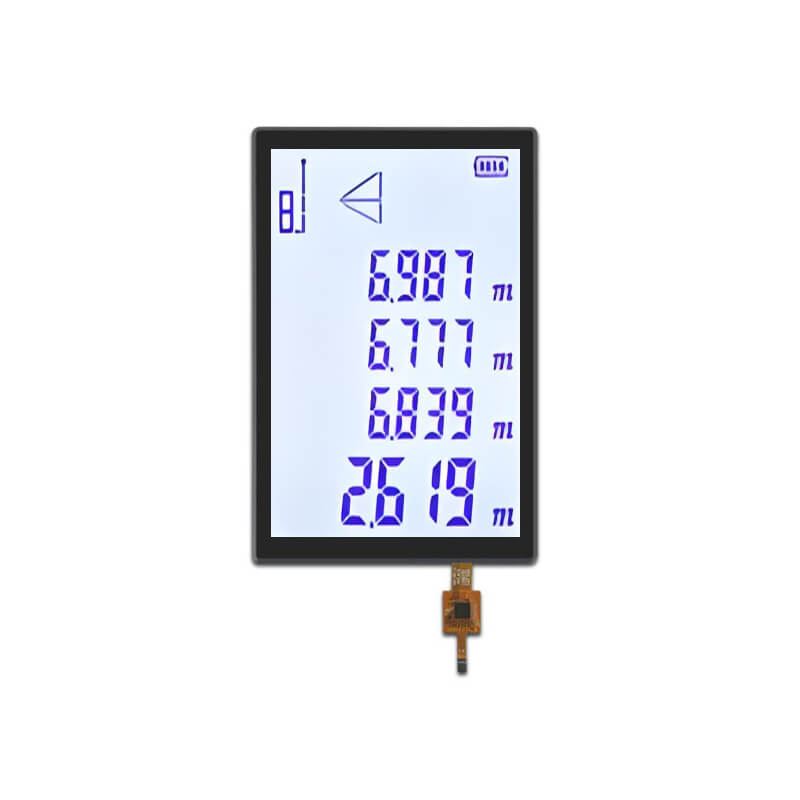

7 Inch TFT LCD Display 1200×1920 MIPI High Brightness LCD Display With Capacitive Touch for Measuring Rangefinder Display Solution OverviewET070WU13-TT is a 7-inch TFT LCD display featuring a 1200×1920 resolution and a MIPI interface for detailed image reproduction in handheld devices, healthcare equipment, industrial systems, and measuring rangefinders. With a typical brightness of 1500 cd/m² and a 1200:1 contrast ratio, it delivers clear, high-contrast visuals for applications requiring enhanced screen visibility. The IPS panel provides wide 85° viewing angles in all directions and supports 16.7 million colors for consistent image quality. Equipped with a PCAP capacitive touch panel, this high-brightness LCD module enables responsive touch operation and intuitive user interaction. Its WLED backlight, 40-pin MIPI interface, and 5 mm maximum depth support integration into compact equipment designs. Operating at temperatures from -10°C to 60°C, the ET070WU13-TT is a versatile 7-inch touch display solution for portable measuring instruments, industrial control systems, and other applications requiring bright, high-resolution visuals.

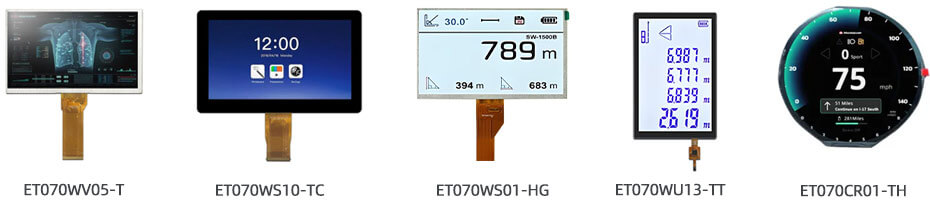

More 7 Inch Healthcare & Medical Display Solution For Reference
ET070WV05-T (LCM, 800×480, TTL, 700nits, 164.9×100mm, -20~70°C)
ET070WS10-TC (LCM, 1024×600, LVDS, 1000nits, 179.34×109.89mm, -30~85°C)
ET070WS01-HG (LCM, 1024×600, TTL, 550nits, 164.9×100mm, -30~85°C)
ET070WU13-TT (LCM, 1200×1920, MIPI, 1500nits, 111×172mm, -10~60°C)
ET070CR01-TH (LCM, 1080×1080, LVDS, 800nits, 191.58×192.75mm, -20~70°C)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
