5.1"-7" LCD Display (7")

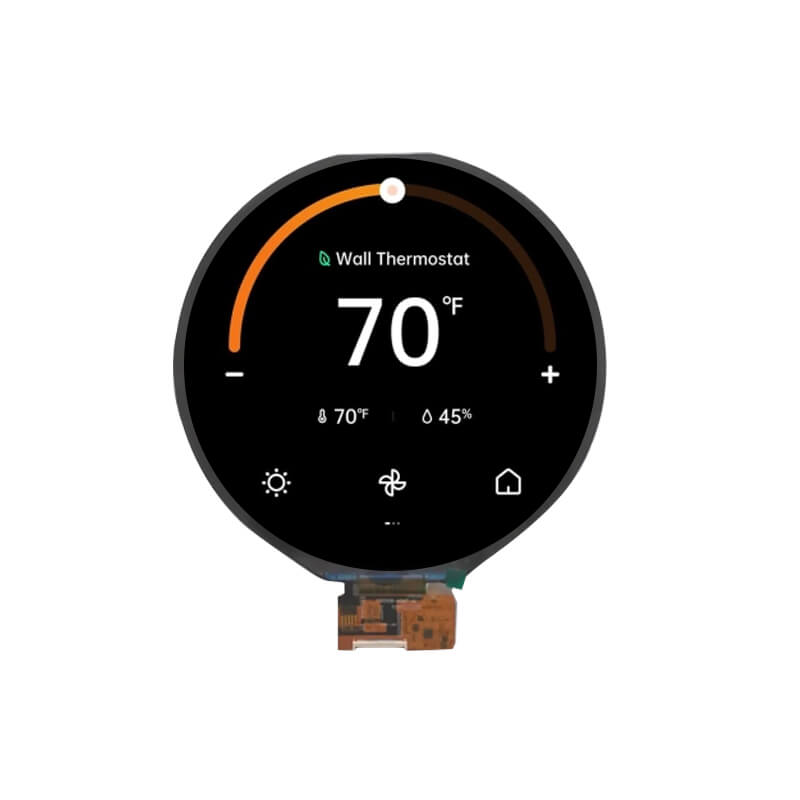

7 Inch Round LCD Display 1080×1080 40-Pin MIPI 1000 nits High Brightness Circular Screen with Android Board

Part No.:ET070CR01-GX
Size:7″ inch
Resolution:1080x1080
Panel Interface:40pin MIPI
Display mode:Normally Black
Outline Dimension:193x192x4.8mm
Active Area:/
Viewing Angle L/R/U/D:IPS
Brightness（cd/m2）:1000nits
Operation / Storage Temp:-20~70°C / /
Touch:no

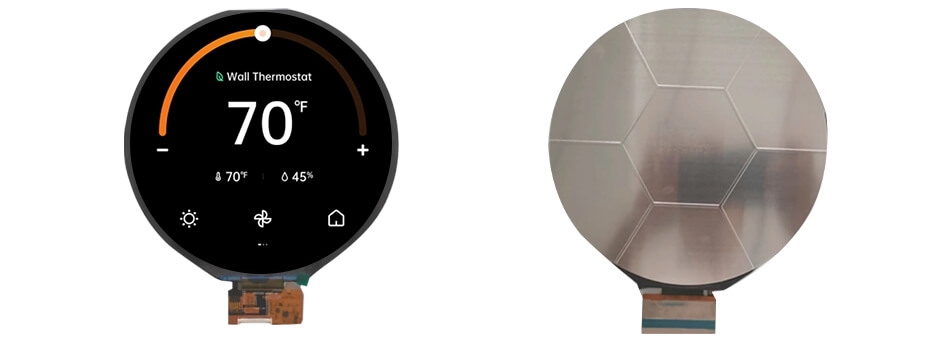

7 Inch Round LCD Display 1080×1080 40-Pin MIPI 1000 nits High Brightness Circular Screen with Android Board Overview
ET070CR01-GX with Android board is a 7-inch diagonal round LCD display designed for applications requiring a high-brightness circular screen. It supports a resolution of 1080×1080, with pixels arranged in a square format. The display features a 40-pin MIPI interface and operates in Normally Black display mode. It has an outline dimension of 193(W)×192(H)×4.8(D) mm and provides a high brightness of 1000 cd/m² (nits). The display utilizes IPS technology, offering wide viewing angles from left, right, up, and down. The ET070CR01-GX can be paired with an Android driver board for convenient system integration.

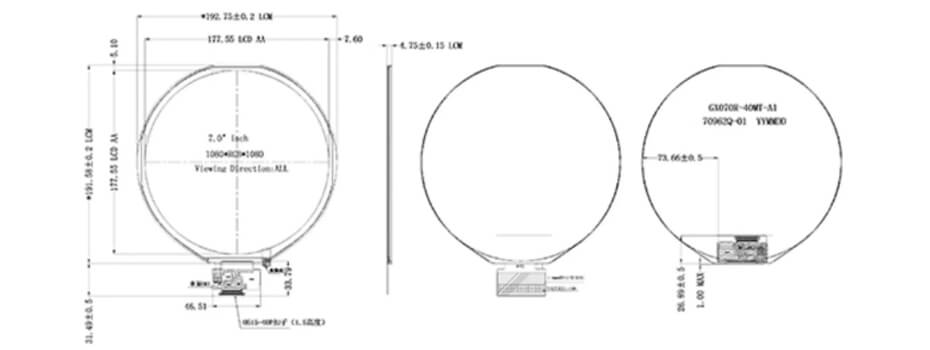

7 Inch Round LCD Display 1080×1080 40-Pin MIPI 1000 nits High Brightness Circular Screen with Android Board Drawing

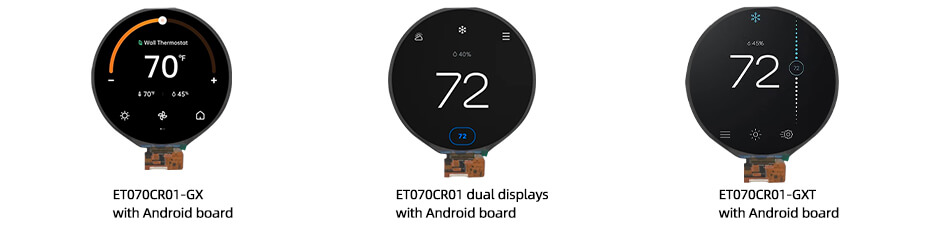

More 7 Inch Circular Display Solution For Reference
ET070CR01-GX with Android board
ET070CR01 dual displays with Android board
ET070CR01-GXT with Android board(Capacitive Touch)
7 Inch Round LCD Display 1080×1080 40-Pin MIPI 1000 nits High Brightness Circular Screen with Android Board
