7.1"-10.1" LCD Display (7.8")

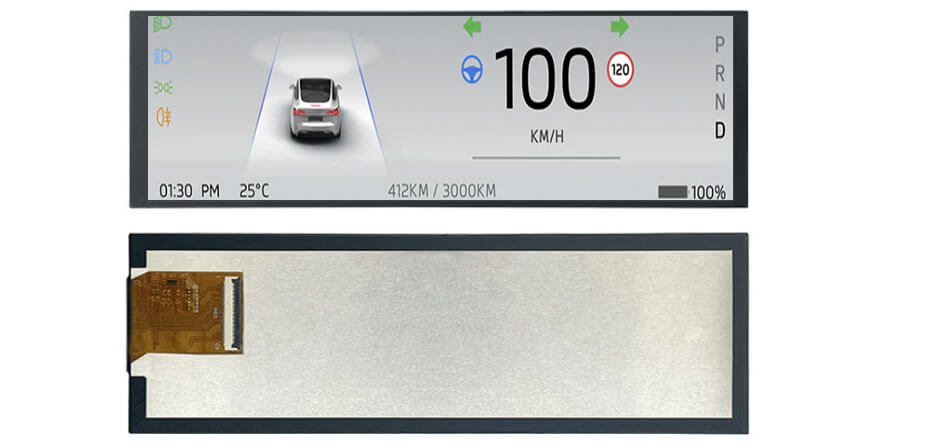

7.8 Inch TFT LCD Display 400×1280 TTL High Brightness 700nits LCD Display For Automotive

Part No.:ET070HD03-T
Size:7.8″ inch
Resolution:400x1280
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:67.8x205.78mm
Active Area:59.4x190.8mm
Viewing Angle L/R/U/D:IPS
Brightness（cd/m2）:700nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

7.8 Inch TFT LCD Display 400×1280 TTL High Brightness 700nits LCD Display For Automotive Video

7.8 Inch TFT LCD Display 400×1280 TTL High Brightness 700nits LCD Display For Automotive Overview

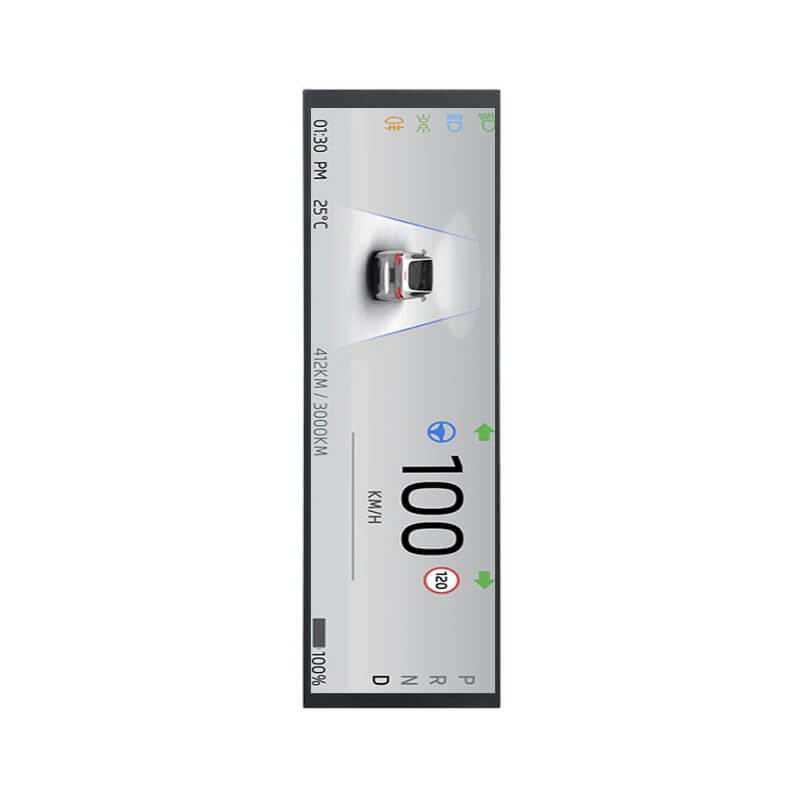

ET070HD03-T is a 7.8-inch diagonal TFT-LCD display product with a transmissive display mode. ET070HD03-T supports a resolution of 400×1280, delivering an ultra-tall vertical display format, and utilizes a TTL interface for signal transmission. It features an active area of 59.4(W)×190.8(H) mm and an outline dimension of 67.8(W)×205.78(H) mm. The display provides a brightness of 700 cd/m², suitable for automotive applications and bright ambient environments, and adopts IPS technology for wide viewing angles. ET070HD03-T operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.

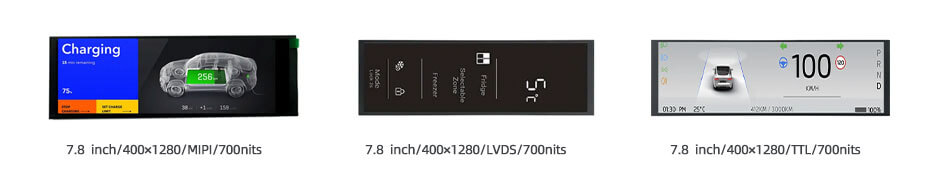

More 7.8 Inch Automotive Display For Reference
ET078HD04-T (400×1280, MIPI, IPS, 700nits, -20~70°C, 67.14×205.12mm)
ET078HD02-T (400×1280, LVDS, IPS, 700nits, -20~70°C, 67.14×205.12mm)
ET070HD03-T (400×1280, TTL, IPS, 700nits, -20~70°C, 67.8×205.78mm)
