5 Inch Serial Screen With Housing 800x480 LUA Script Configuration Serial TFT Display With Resistive Touch

5 Inch Serial Port Screen Overview

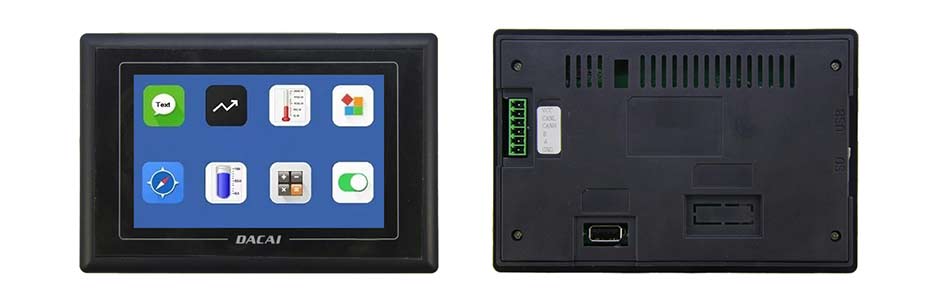

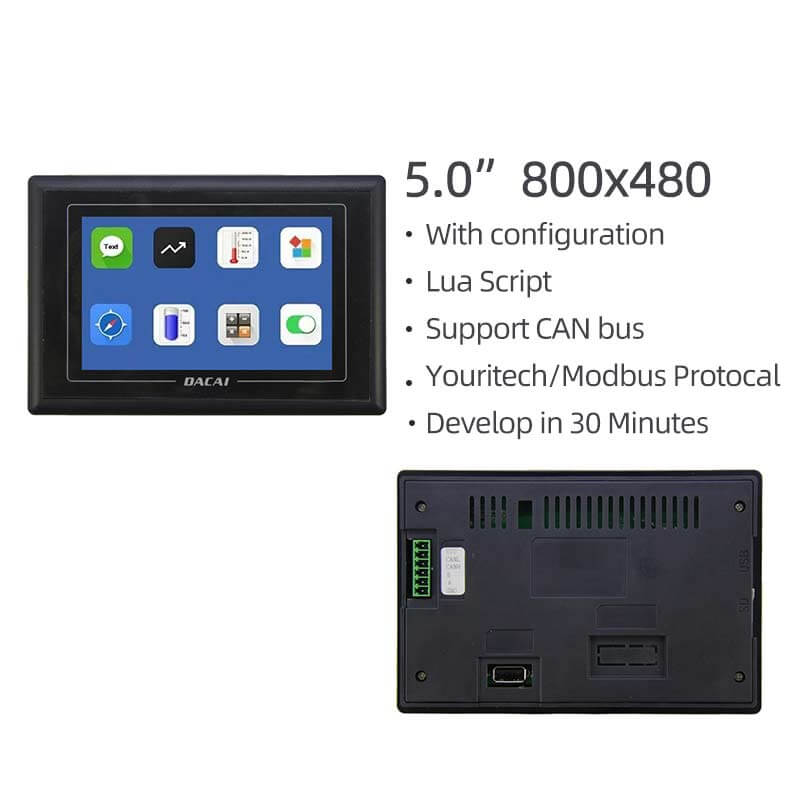

5 Inch Serial Screen With Housing 800x480 LUA Script Configuration Serial TFT Display With Resistive Touch.

5 Inch Serial Port Screen Product Parameters
Core processor: 480M SOC processor
Operating system: No operating system, it can run after power on, startup time: about 1 second
Protocol type: Default Dacai configuration instruction set, the host computer can be configured to run MODBUS RTU, XGUS protocols.
Scripting language: Version 5.3 LUA script, the screen can run logic, protocols and algorithm functions written by the user.
Size: 5.0 inches
Resolution:800x480
Installation direction: supports 0, 90, 180 and 270 degree rotation installation display
Storage space: 128Mbit
Font library: Built-in vector fonts, edge anti-aliasing processing, supports any size ASCII, GBK, GB2312, UNICODE (global language) font library, and can also customize any computer font display.
Image storage: Supports JPEG, PNG (semi-transparent/fully transparent) compression, and supports image storage of any size. A total of about 185 full-screen pictures can be stored (calculated based on size of 80KB/picture, BMP format is not recommended). Depending on the image compression ratio, this value will fluctuate up and down.
Color: 65K colors, 16-bit RGB
Voltage:5-28V
Power consumption:
Darkest backlight: 1.0W;
Brightest backlight: 2.1W
Communication method: RS485
Communication baud rate: RS485: 1200~115200bps, typical baud rate: 9600bps.
CAN communication: CAN bus 2.0B protocol, supports 125K, 250K, 500K, 1M baud rate, typical baud rate 1M.
Communication connector specifications: 2EDGV3.81-6P
Local download of pictures: SD card, serial port, U disk
Firmware local/remote upgrade: Insert SD card/U disk for local upgrade/support user motherboard remote serial port upgrade screen firmware.
Remote image upgrade: Support users to remotely use their own motherboard serial port to upgrade screen-related image projects, fonts, configuration files, etc.
Real-time clock: supports clock, timer, countdown and other functions.

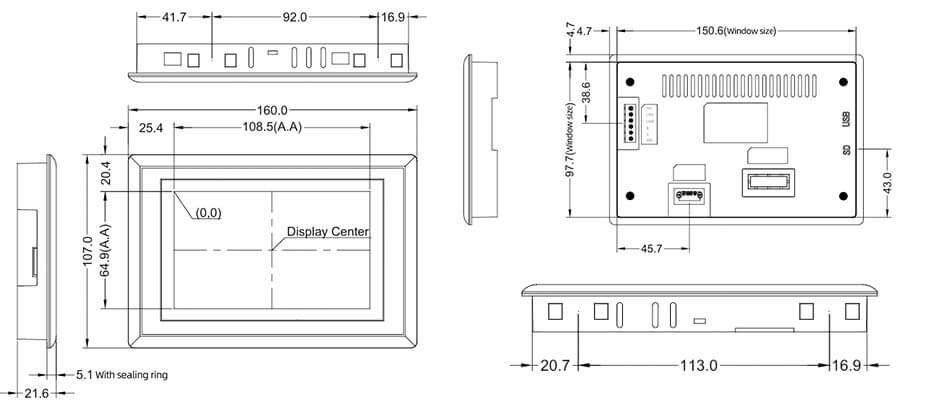

Screen effective display area: 108.5x64.9mm
Product size:160.0x107x21.6mm
Window size: 150.6x97.7mm (recommended cabinet window size is 151.6x98.7mm)
Supporting host computer software: VisualTFT®

Reliability parameters
Operating Temperature: 20~+70°C
Storage Temperature: 30~+80°C
ESD Test: IEC 61000-4-2 Air: ±10KV (no restart).
EFT Test:IEC61000-4-4 Standard 4 (Voltage: +4kV; Frequency: 5kHz; Duration: 120s); No restart, display abnormalities, touch abnormalities, etc.; Test functions are normal.
Radiated Radiation Test: EN55022 Class B,Test environment: three-meter dark wave chamber.

Core competitiveness of products
Learning cycle: 30 minutes to familiarize yourself with the development environment, 3 days to complete human-computer interaction design.
Program debugging: The host computer integrates a "virtual serial port screen," eliminating the need for hardware connection and allowing direct Keil debugging. IDE-bound debugging
Startup Time: Runs instantly upon power-up, eliminating system loading time
Configuration Controls: Features a variety of configuration controls, including multi-language controls, buttons, text, drop-down menus, progress bars, sliders, meters, animations, QR codes, curves, data loggers, circular progress bars, and sub-screen slide controls.
System Keyboard: Built-in virtual numeric and character keyboards, supporting Chinese and English input methods, and customizable keyboards.
Data Logging: Supports exporting data logger content to an SD card.
Layer Technology: Multiple display layers are built into the system for faster switching.
Multilingual Capability: Factory-preset up to 15 global languages, enabling one-click switching without the need for multiple UIs.
Logical Operation Processing: The host computer has an embedded LUA script parser, allowing users to customize complex logic relationships and protocols within the screen, meeting 99.9% of customer product requirements.
Remote Upgrade: Supports remote serial port upgrades of display firmware, project files, specified images, configuration files, and fonts.
Lifecycle: Utilizes a traditional, leading-edge processor, ensuring long-term supply.

5 Inch Serial Port Screen
Display Type: TFT LCD
Backlight: LED
Brightness (cd/m²): 350
Backlight Lifespan (hours): >20,000
Contrast Ratio: 500:1
Viewing Angles (L/R/T): 70/70/50/60

Touch panel (resistance and capacitance optional)
Touch type: Resistive touch screen
Resistive screen touch mode: single point, sliding touch
Resistive screen transmittance: more than 80%
Resistive screen touch times: the same pixel, single touch times more than 1 million times

Customized services
Customization Fees: For orders of 1,000 units, some customization fees may be waived.
Hardware Circuits: Customizable PCB size, circuit thickness, custom circuitry, military-grade temperature display, and more.
Software Customization: Customizable instructions or controls based on user needs, reducing development effort.
Design Services: Graphic design and product structure design services available.
Other: Customizable on demand to meet all user needs.

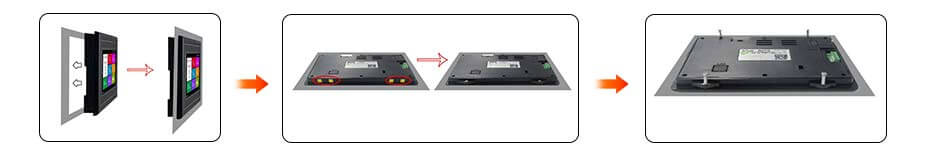

Installation diagram

Step 1: As shown in the picture above, embed the serial port screen into the customer cabinet;
Step 2: Insert the buckle into the mounting hole marked in red as shown in the figure;
Step 3: Tighten the screws to fix the serial port screen to the customer's cabinet.
