0.48"-5" LCD Display (3.8")

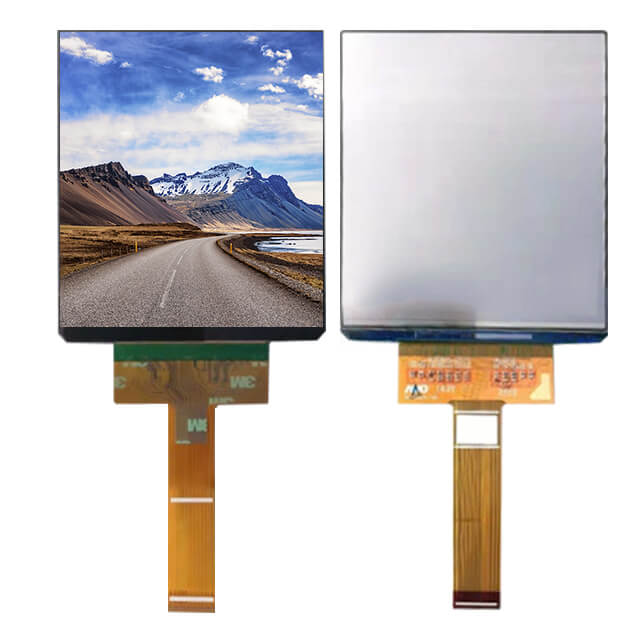

3.81 inch amoled 500 nits mipi interface square oled 1080x1200 wide temperature lcd HDMI MIPI BOARD for 3D printer/VR/Head-set video play/door monitor/game accessory

Part No.:ET381DLN01.0
Size:3.81″ inch
Resolution:1080x1200
Panel Interface:MIPI
Display mode:AM-OLED,OLED
Outline Dimension:67.6(H)x78.95(V)x1.43(D)
Active Area:64.8(H)x72(V)
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:100cd/m²
Operation / Storage Temp:-20~70° / -40~80°C
Touch:no

General Features
Screen Size	3.8 inch	Type	AM-OLED, OLED
Pixel Number	1080(RGB)×1200	Configuration	RGB Vertical Stripe
Active Area(mm)	64.8(H)×72(V) mm	Outline(mm)	67.6(H)×78.95(V) ×1.43(D) mm
Bezel Area(mm)	-	Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	500 cd/m² (Typ.)	Contrast Ratio	3000:1 (Min.) (TM)
View Direction	Symmetry	Response Time	-
Viewing Angle	80/80/80/80 (Min.)(CR≥480)	Operating Mode	-
Support Color	16.7M 72% (CIE1931)	Light Source	self
Outline Shape	-	Used for	HMD VR AR
Refresh Rate	90Hz	Touch screen	Without
Voltage Supply	1.8/4.6/5.8/-2.9V (Typ.)	Signal Type	39 pins MIPI (4 data lanes) , FPC
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C

ET381DLN01.0 is a 3.8 inch diagonal AM-OLED display panel product from AU Optronics Corp. (hereafter called AUO), it self emiting, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -40 ~ 80°C . It's general features are summarized in the following: Wide Color Gamut, DCI-P3, sRGB, Portrait type , for Virtual Reality application.
