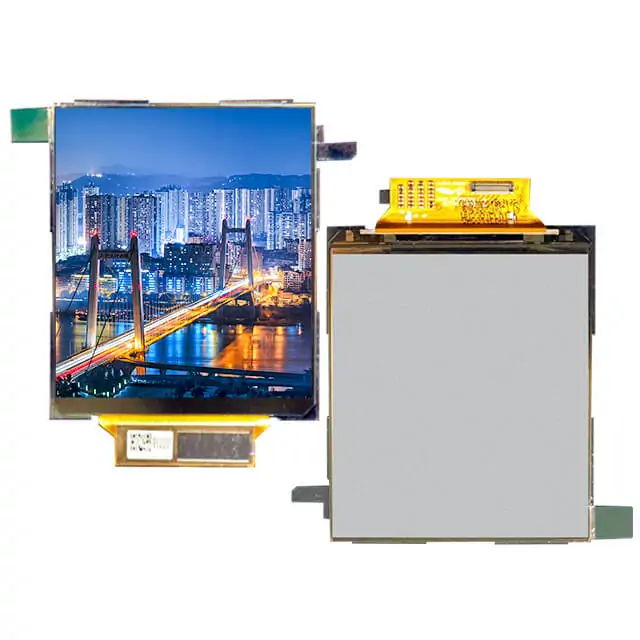

3.6 inch square oled AM-OLED lcd screen display 1080x1200 oled screen IPS Display 40 pins MIPI for AR VR

Product size

3.6-inch

Type

AM-OLED, OLED

Pixel Format

1080(RG/BG)×1200  365PPI

Configuration

RG/BG PenTile

Active Area

61.29(H)×68.1(V) mm

Outline Dim.

63.75(H)×89.718(V) ×0.96(D) mm

Luminance

250 cd/m² (Typ.)

Contrast Ratio

5000:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

-

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Operating Mode

-

Support Color

16.7M   100% NTSC

Light Source

self

Weight

-

Designed For

HMD VR AR

Frequency

90Hz

Touch Panel

Without

Interface Type

MIPI (4 data lanes) , 40 pins Connector

Power Supply

1.8/3.3/3.8V (Typ.)(VDDI/VCI/VBAT)

Environment

Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
