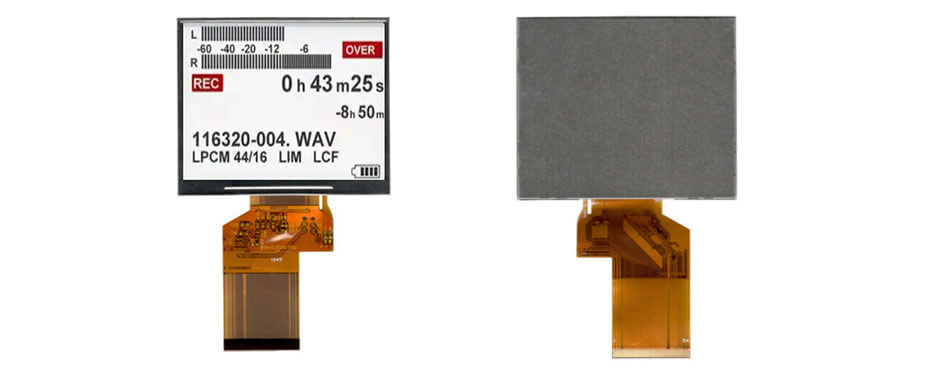

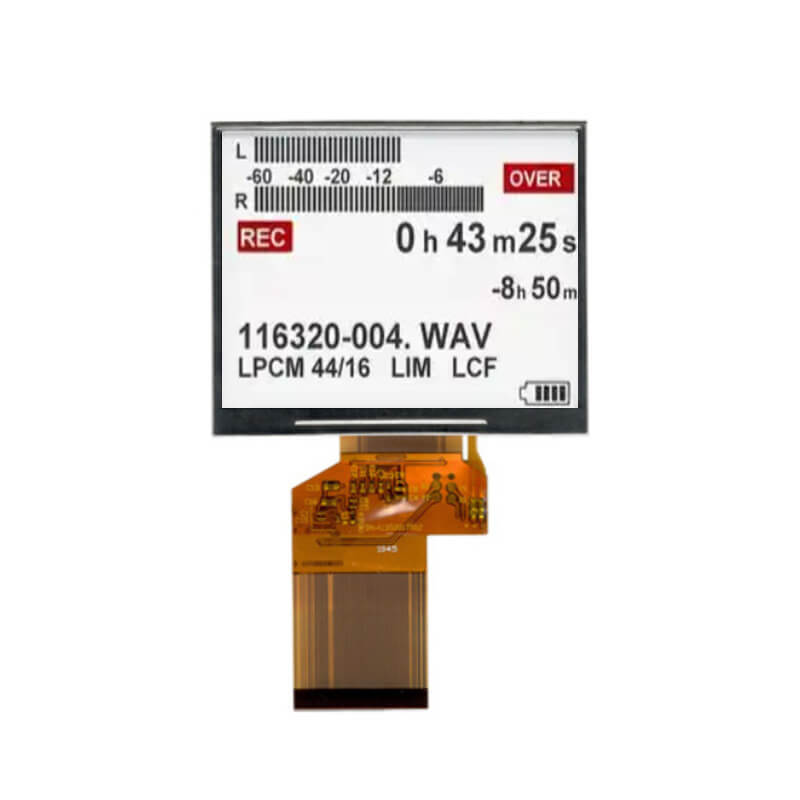

ET035HV01-M is a 3.5-inch diagonal TFT-LCD display module featuring a resolution of 320×240 pixels and a TTL interface. ET035HV01-M adopts a transmissive display mode and delivers high brightness of 800 cd/m², ensuring clear and readable images for a range of industrial and outdoor applications. It features an active area of 70.08(W)×52.56(H) mm and an outline dimension of 76.9(W)×63.9(H) mm, with viewing angles of 60°/60°/40°/60° (L/R/U/D). Designed for reliable operation in demanding environments, ET035HV01-M supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. Without a touchscreen, this display is suitable for measuring instruments, laser rangefinders, and other equipment requiring a compact, high-brightness LCD display solution.

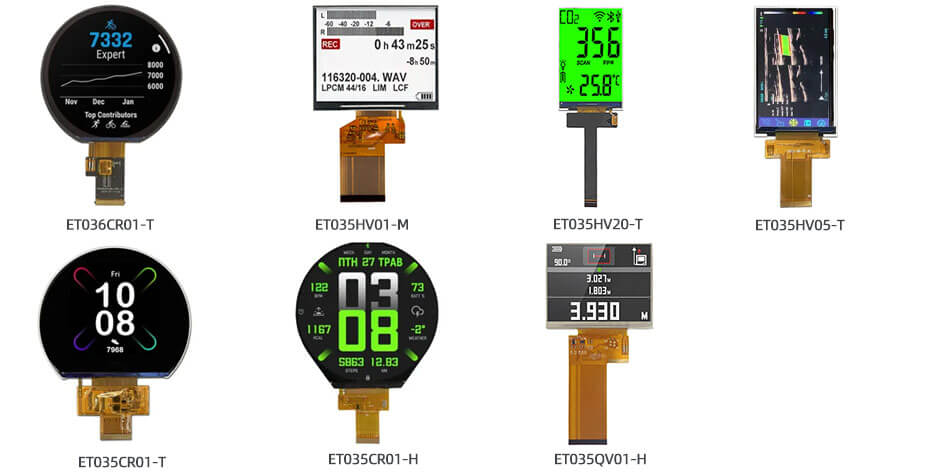

More 3.5 Inch Healthcare & Medical Display Solution For Reference
ET036CR01-T (LCM, 544×506, TTL, 1000nits, 98.88×94.12mm, -20~70°C)
ET035HV01-M (LCM, 320×240, TTL, 800nits, 76.9×63.9mm, -20~70°C)
ET035HV20-T (LCM, 320×480, TTL, 500nits, 54.48×84.71mm, -20~70°C)
ET035HV05-T (LCM, 320×480, CPU, 350nits, 54.48×84.71mm, -20~70°C)
ET035CR01-T (LCM, 800×640, TTL, 1500nits, 97.6×83.79mm, -20~70°C)
ET035CR01-H (LCM, 800×800, MIPI, 450nits, 94.9×96.95mm, -20~70°C)
ET035QV01-H (LCM, 640×480, TTL, 400nits, 76.7×63.7mm, -20~70°C)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
