3.4 Inch High Brightness LCD Display Overview

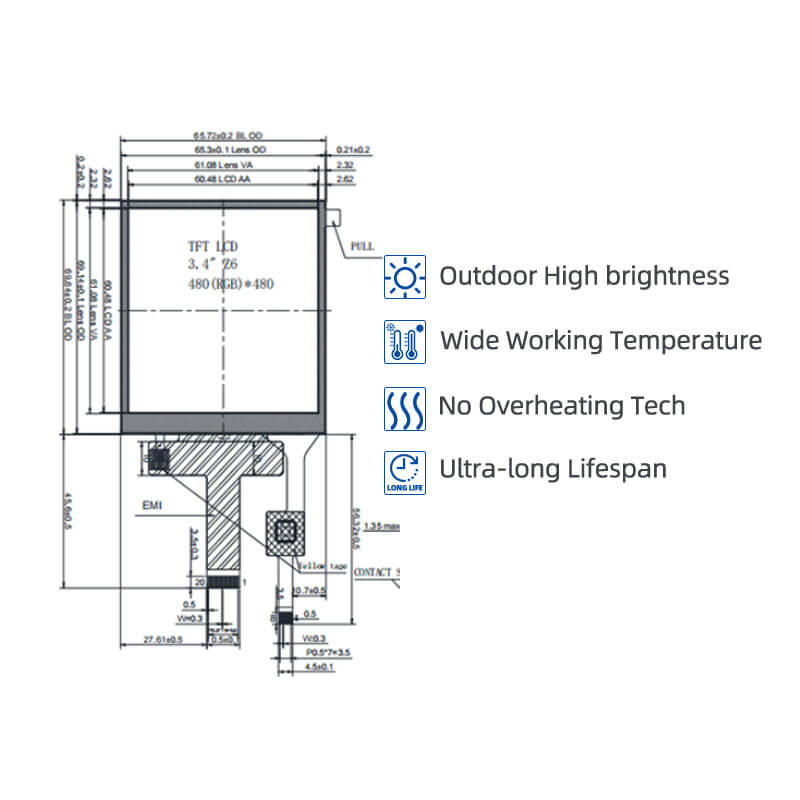

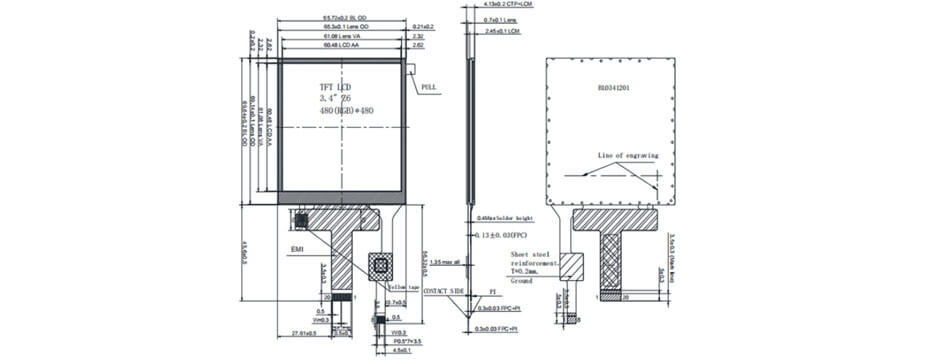

ET034WV02-KT is a 3.4-inch IPS TFT LCD display for handheld PDA applications. It features a 480×480 resolution in transmissive mode and uses a MIPI interface. The display delivers a typical brightness of 850 cd/m² with wide 85° viewing angles in all directions. It has an active area of 60.48 × 60.48 mm within an outline dimension of 69.64 × 65.72 mm, supports operating temperatures from –20 °C to 70 °C and storage temperatures from –30 °C to 80 °C, and is supplied without a touch panel.
More 3.4 Inch High Brightness LCD Display For Reference
ET034WV20-K (480x480, MIPI ,1000nits, -20~70°C, 65.72x69.64mm)
ET034WV02-KT (480x480, MIPI ,850nits, -20~70°C, 69.64x65.72mm,CTP)
ET034FD01-HG (800x800, MIPI ,1500nits, -20~70°C, 96.6x99.79mm)
