0.48"-5" AMOLED

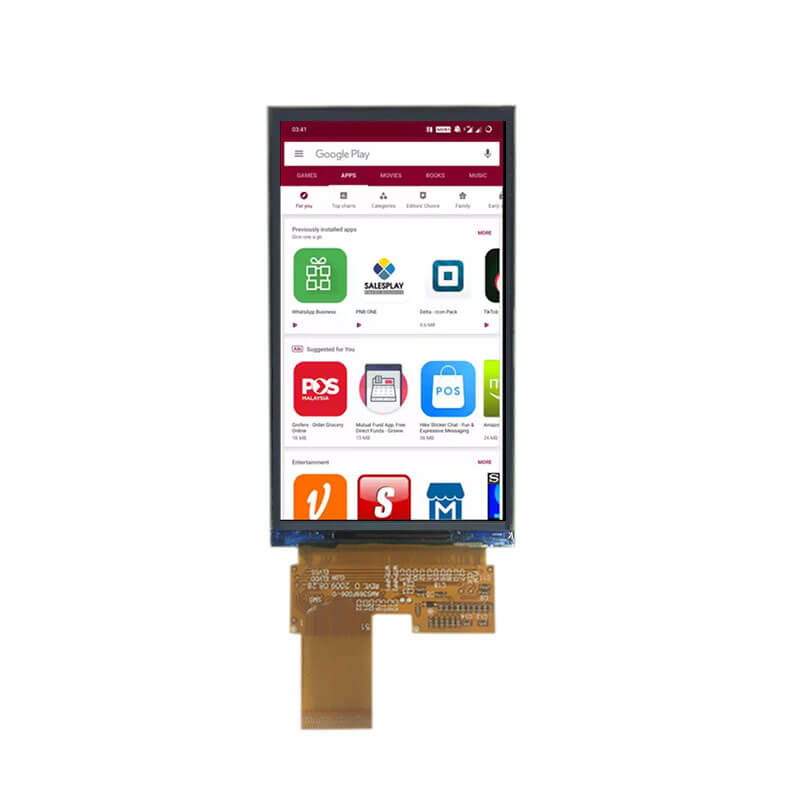

3.3 Inch Wide Temperature OLCD Display 480×854 CPU RGB -40°C to 70°C AMOLED Display

Part No.:ET033FW01-O
Size:3.3″ inch
Resolution:480x854
Panel Interface:CPU/RGB
Display mode:AM-OLED

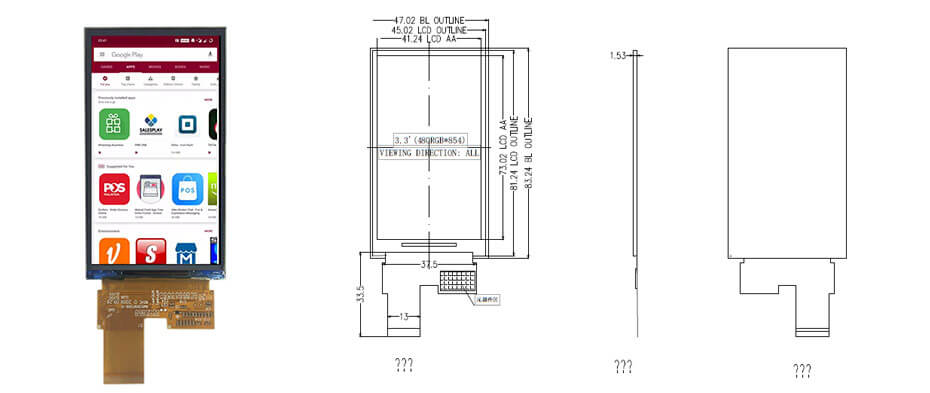

Outline Dimension:68x121mm
Active Area:41.24x73.02mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:250(Typ.)
Operation / Storage Temp:-40~70°C / -40~85°C
Touch:no

3.3 Inch Wide Temperature OLCD Display Overview
3.3 Inch Wide Temperature OLCD Display 480×854 CPU RGB -40°C to 70°C AMOLED Display.

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
