28 Inch Stretched Bar Display Overview

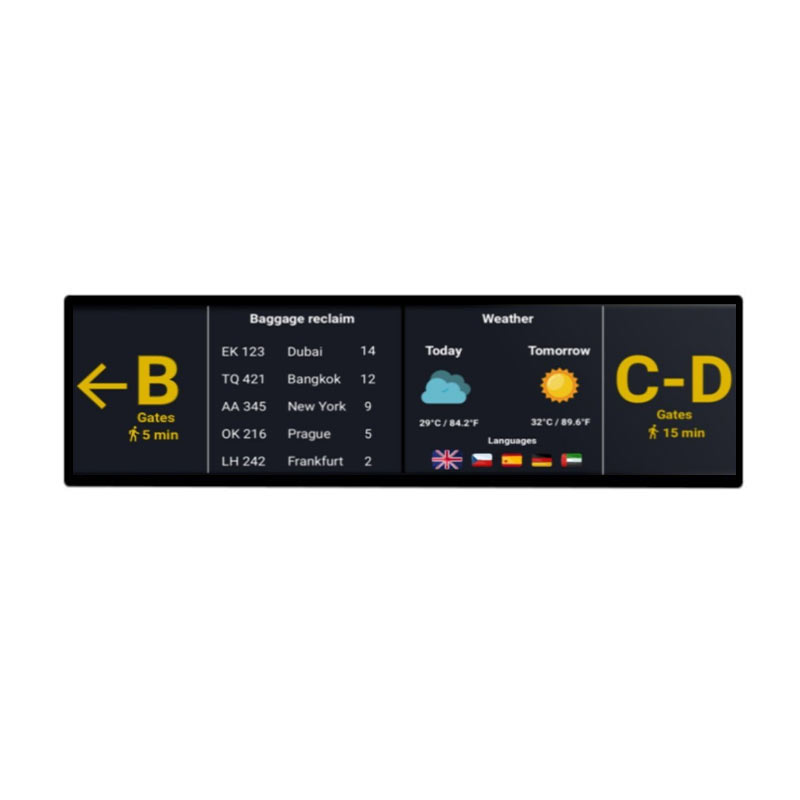

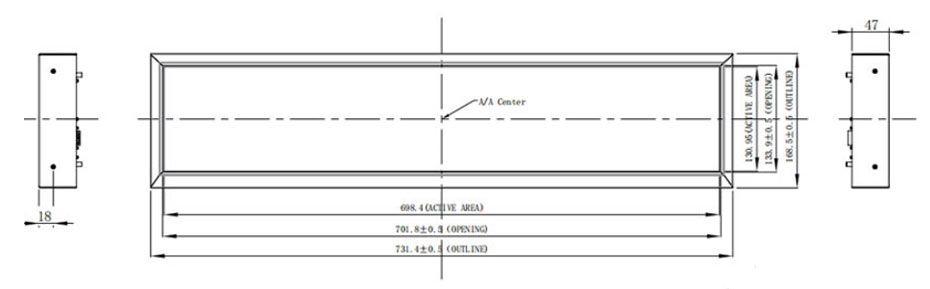

ET280BA01-RS is a 28-inch diagonal stretched bar TFT-LCD display with a transmissive panel and an LVDS interface. It features a 1920 × 360 resolution across an active area of 698.4 (W) × 130.9 (H) mm and an outline dimension of 736.2 (W) × 157.5 (H) mm. This display delivers high brightness of 2000 cd/m² (typical) with wide viewing angles of 89°/89°/89°/89° (L/R/U/D). ET280BA01-RS operates in –30 °C to 80 °C and can be stored at –40 °C to 90 °C, and it supports touch functionality, making it suitable for demanding industrial and outdoor applications.
More 28 Inch Bar Displays For Reference

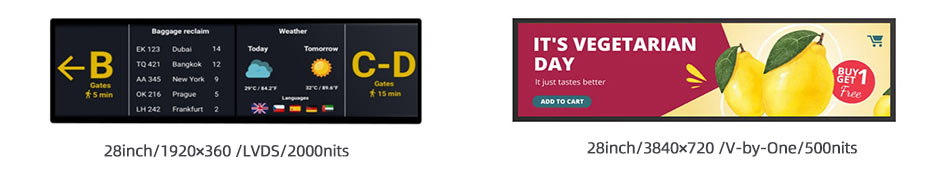

ET280BA01-RS (1920x360, LVDS, IPS, 2000nits, -30~80°C, 736.2×157.5mm)
ET280BA01-YU (3840x720,V-by-One, IPS, 500nits, 0~50°C, 720x151mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
