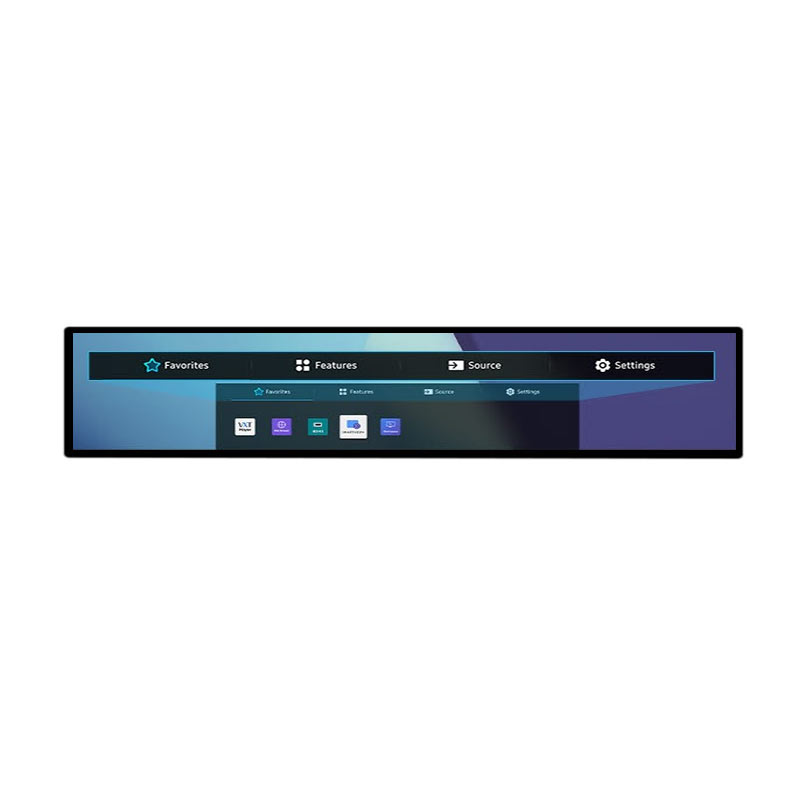

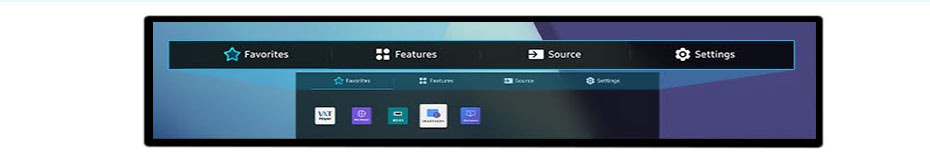

27.6 Inch Stretched Bar Display Overview
ET276BA01-IL is a 27.6-inch diagonal stretched bar TFT-LCD display featuring a transmissive IPS panel with an LVDS interface. It supports a 1920 × 132 resolution across an active area of 698.4 (W) × 49.5 (H) mm and an outline dimension of 730.4 (W) × 81.5 (H) mm. The display provides high brightness of 500 cd/m² (typical) and wide viewing angles of 89°/89°/89°/89° (L/R/U/D). ET276BA01-IL operates within 0 °C to 50 °C and can be stored at –20 °C to 60 °C, and it also supports touch functionality, making it suitable for interactive and industrial display applications.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
