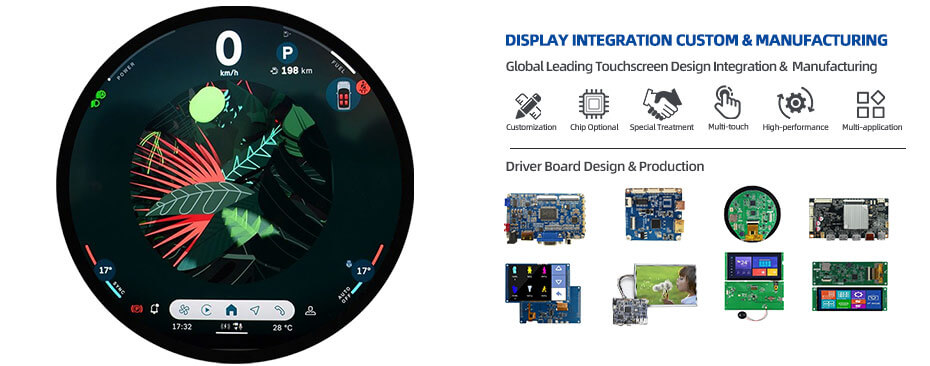

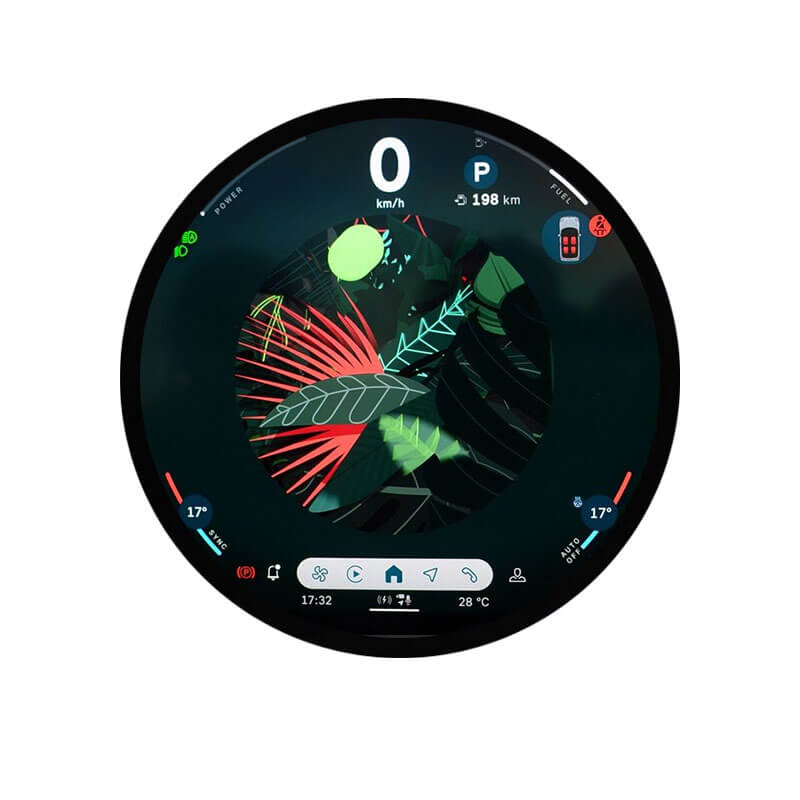

23.6 Inch Circular Display 848x848 LVDS 700nits High Brightness IPS Round LCD Display For Home Appliance

Part No.:ET236CR01-VL
Size:23.6″ inch
Resolution:848x848
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:661.184x661.184mm
Active Area:600.38x600.38mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:0~50°C / /
Touch:no

23.6 Inch Circular Display Overview
ET236CR01-VL is a 23.6-inch circular IPS LCD display with a 848 × 848 resolution, designed for home appliance applications. It features a transmissive display mode with an LVDS interface, an active area of 600.38 × 600.38 mm, and an outline dimension of 661.184 × 661.184 mm. The display provides 700 cd/m² typical brightness, supports a wide viewing angle of 89° left/right/up/down, and operates within a temperature range of 0 to 50 °C. This model does not include touch functionality.

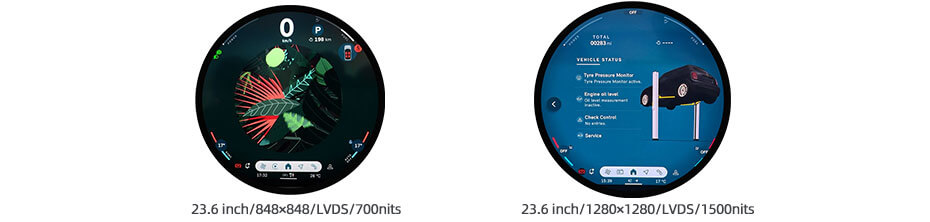

More 23.6 Inch Circular LCD Display For Reference
ET236CR01-VL (848x848, LVDS, 700nits, 0~50°C, 661.184x661.184mm)
ET236CR02-VL (1280x1280, LVDS, 1500nits, 0~50°C, 657x657mm)
