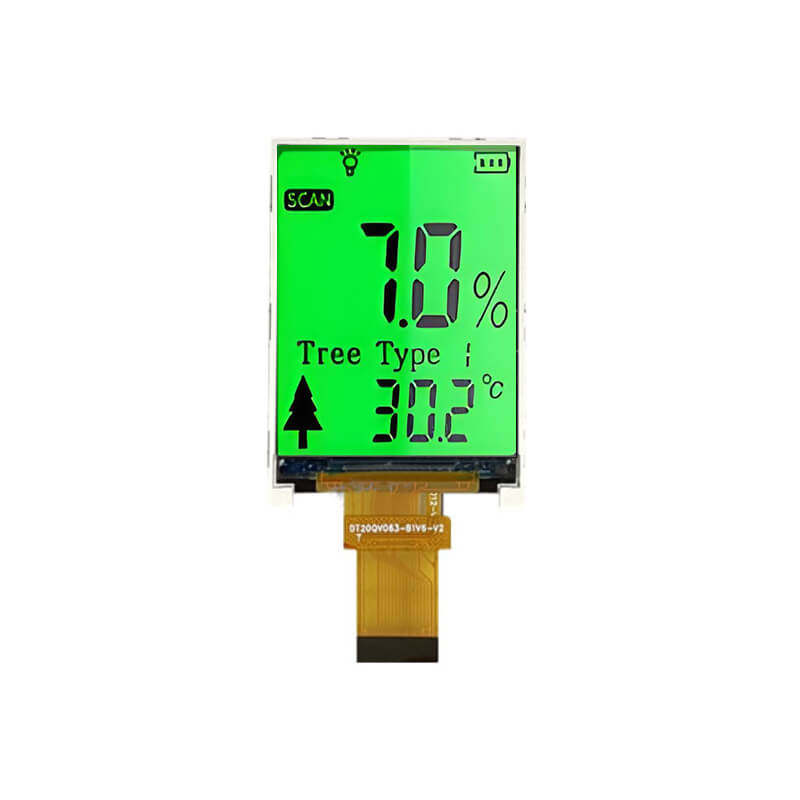

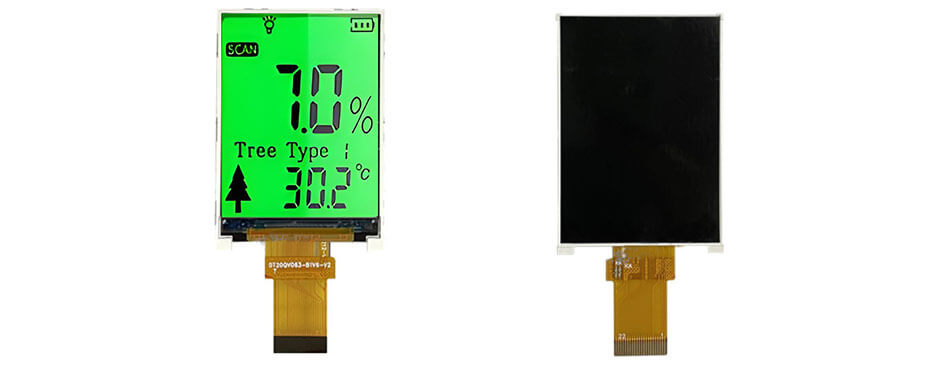

ET020HV01-H is a 2-inch diagonal TFT-LCD display module with a transmissive display mode. ET020HV01-H supports a resolution of 240×320 pixels, with an active area of 30.6(W)×40.8(H) mm and an outline dimension of 34.6(W)×47.8(H) mm. It features CPU/RGB/SPI interfaces, a typical display brightness of 500 cd/m², and a viewing angle of 85/85/85/85 (L/R/U/D). The module operates at temperatures ranging from -20°C to 70°C and can be stored at temperatures from -30°C to 80°C. With its compact design, high brightness, multiple interface options, and wide viewing angles, ET020HV01-H is suitable for measuring instruments, rangefinders, and other embedded display applications.

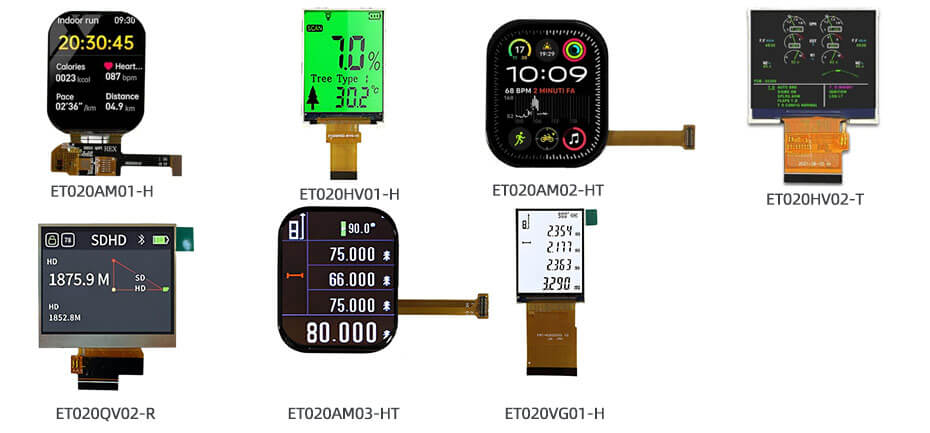

More 2 Inch Healthcare & Medical Display Solution For Reference
ET020AM01-H (OLED, 240×296, SPI, 500nits, 33.74×42.98mm, -20~70°C)
ET020HV01-H (LCM, 240×320, CPU/RGB/SPI, 500nits, 34.6×47.8mm, -20~70°C)
ET020AM02-HT (OLED, 368×448, MIPI, 800nits, 34.64×42.89mm, -20~70°C)
ET020HV02-T (LCM, 320×240, CPU/RGB, 600nits, 46×41mm, -20~70°C)
ET020QV02-R (LCM, 320×240, TTL, 190nits, 46×41.3mm, -20~70°C)
ET020AM03-HT (OLED, 410×502, MIPI, 800nits, 33.07×41.05mm, -20~70°C)
ET020VG01-H (LCM, 480×640, MIPI/RGB, 400nits, 34.6×47.8mm, -20~70°C)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
