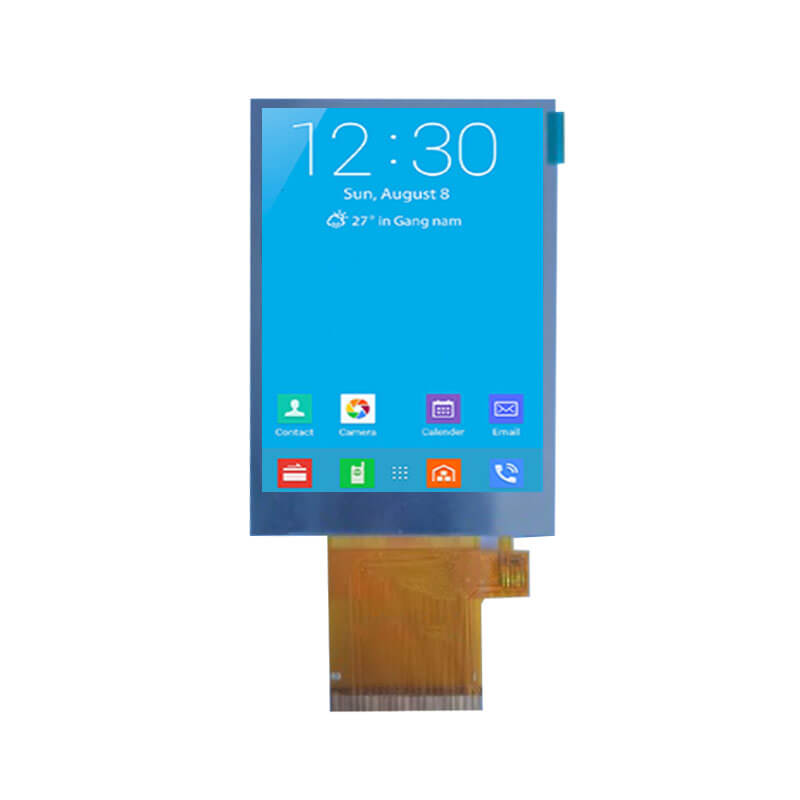

2.8 Inch Wide Temperature LCD Display 240×320 TTL -30°C to 80°C High Brightness 600nits TFT LCD Display

Part No.:ET028WT01-GL
Size:2.8″ inch
Resolution:240x320
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:50x69.2mm
Active Area:43.2x57.6mm
Viewing Angle L/R/U/D:Full View
Brightness（cd/m2）:600nits
Operation / Storage Temp:-30~80°C / -30~80°C
Touch:no

2.8 Inch Wide Temperature LCD Display Overview
2.8 Inch Wide Temperature LCD Display 240×320 TTL -30°C to 80°C High Brightness 600nits TFT LCD Display.

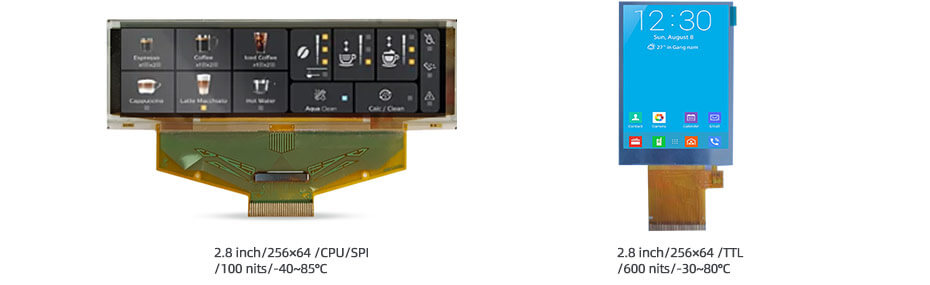

More 2.8 Inch Wide Temperature Displays For Reference
ET028WT01-J (PMOLED, 256×64, CPU/SPI, IPS, 100nits, -40~85°C, 84×45.8mm)
ET028WT01-GL (LCD, 240×320, TTL, IPS, 600nits, -30~80°C, 50×69.2mm)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
