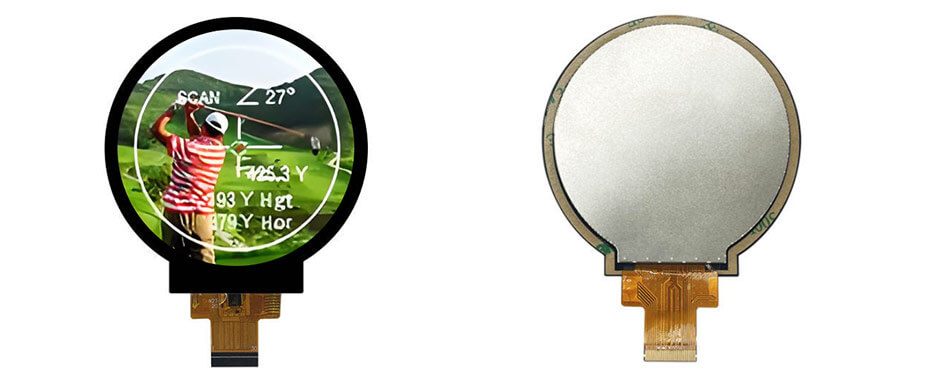

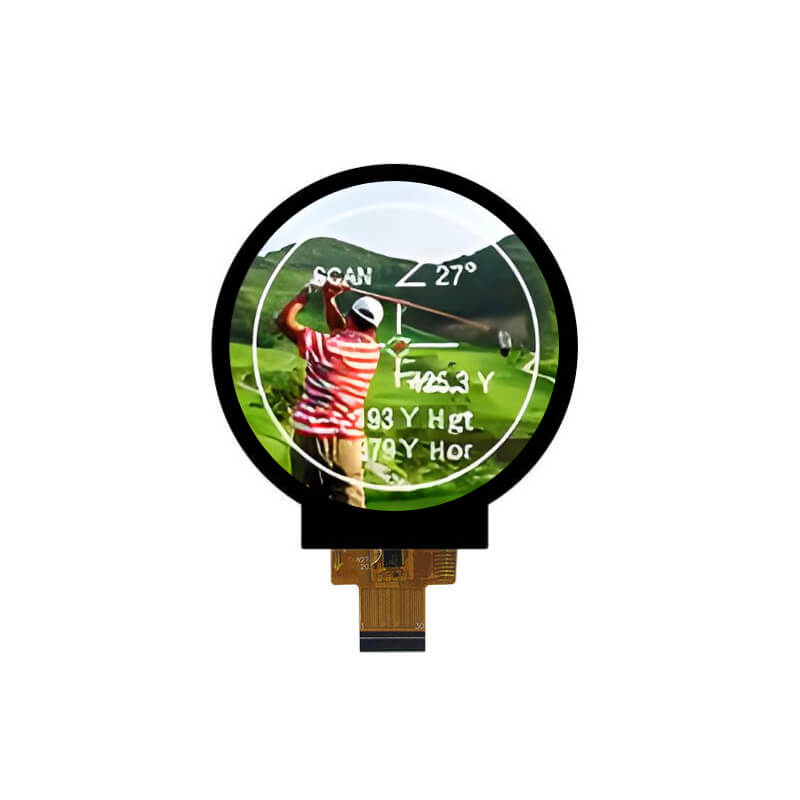

ET027WF01-TT is a 2.8-inch diagonal TFT-LCD display module featuring a resolution of 480×480 pixels and a TTL interface. ET027WF01-TT adopts a transmissive display mode and delivers a typical brightness of 550 cd/m², with a wide viewing angle of 85° in all directions (L/R/U/D), providing clear images from different viewing positions. It features an active area of 70(W)×70(H) mm and an outline dimension of 81(W)×84(H) mm. The module integrates capacitive touch functionality for responsive and intuitive user interaction. Designed for reliable performance in demanding environments, ET027WF01-TT supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. This display is suitable for measuring instruments, laser rangefinders, and other embedded devices requiring a compact, square-format LCD with integrated touch functionality.

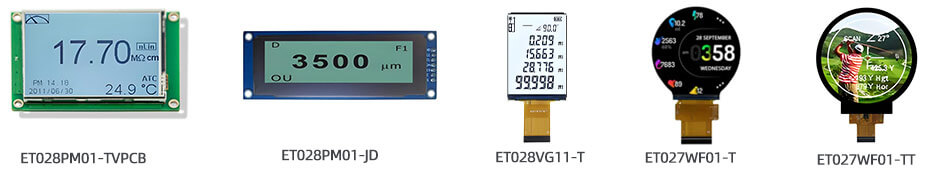

More 2.8 Inch Healthcare & Medical Display Solution For Reference
ET028PM01-TVPCB (LCM, 240×320, CPU, 280nits, 56.5×82.5mm, -20~70°C)
ET028PM01-JD (OLED, 256×64, CPU/SPI, 80nits, 84×25.8mm, -40~85°C)
ET028VG11-T (LCM, 480×640, Serial RGB, 350nits, 46.9×66.5mm, -20~70°C)
ET027WF01-T (LCM, 480×480, MIPI RGB, 600nits, 73.03×76.48mm, -20~70°C)
ET027WF01-TT (LCM, 480×480, TTL, 550nits, 81.23×84.4mm, -20~70°C)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
